Product Information

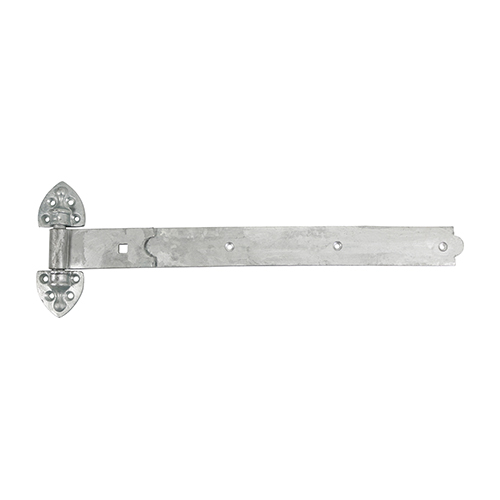

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Documents
Technical Specifications
Product Specification
Band Length inch 18
Band Length mm 450
Band Thickness mm 4.8
Band Width mm 50
Carriage Bolt Size mm M10 x 100
Nut Size mm M10
Washer Size mm M10
Type Reversible
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 6.0 x 40
No of Nuts 2
No of CSK Screws 22
No of Carriage Bolts 2
No of Washers 2
To Suit Gate Width mm 900 - 1350
Pack Dimensions L x W x H mm 516 x 115 x 75
Pack Weight kg 3.422
Carton Qty Packs 5 Pairs
Pallet Qty Packs 185 Pairs
Product Code HRH450G
SKU Barcode 5055893360743
Pin Dia mm 16
Pin Dia inch 5/8
Rec Screw Dia mm 6.0
To Fit Carriage Bolt Dia mm M10
No of Bolt Holes 2
Product Specifications
Finish Hot Dipped Galvanised
Material Carbon Steel
Nut Type Hex Full
Included Items M10 x 100mm Carriage Bolts (Qty 2), M10 Hex Full Nuts (Qty 2), M10 Washers (Qty 2), 6.0 x 40mm Countersunk Screws (Qty 22)
Attribute Group 1
Brand TIMCO

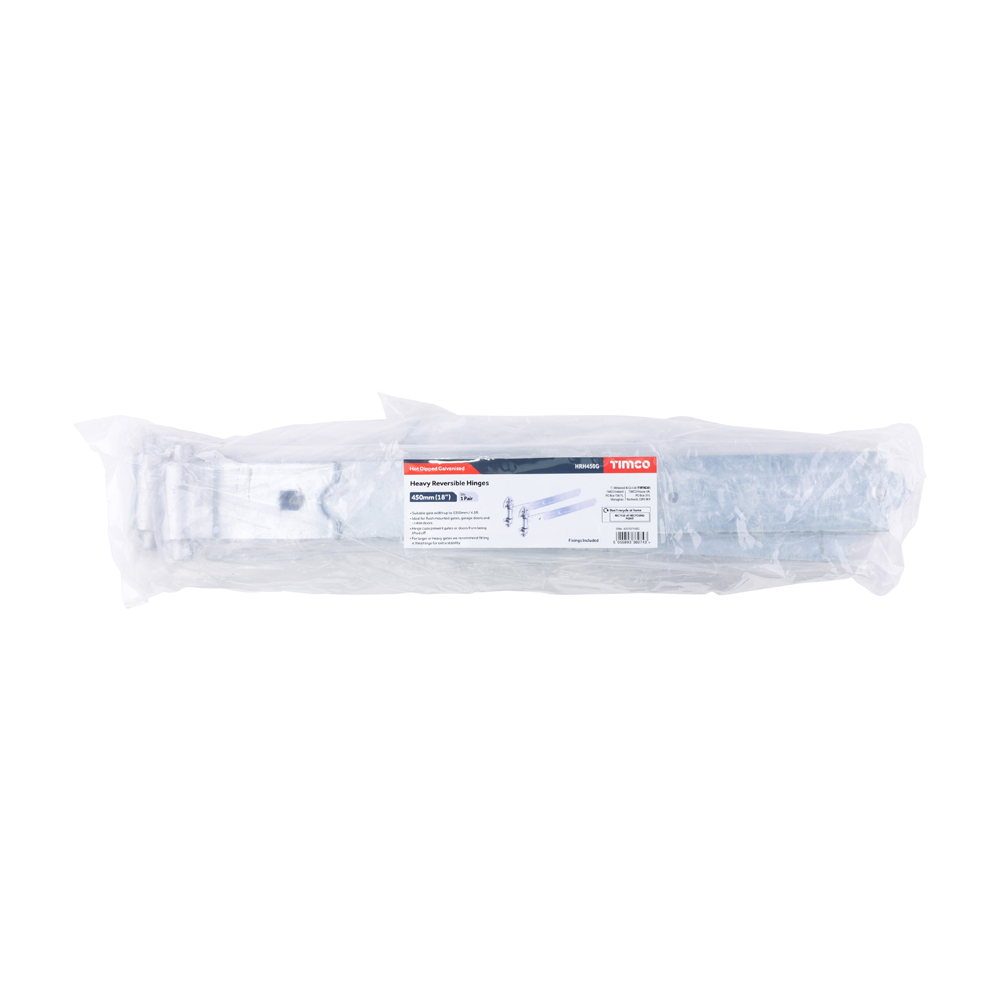

Pair of Heavy Reversible Hinges - Hot Dipped Galvanised

450mm

  • Product Code: HRH450G
  • Pack Type: Plain Bag
  • Pack Quantity: 1
  • Barcode: 5055893360743
