Product Information
Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 42 |
| Band Length mm | 1050 |
| Band Thickness mm | 5.6 |
| Band Width mm | 50 |
| Carriage Bolt Size mm | M10 x 100 |
| Nut Size mm | M10 |
| Washer Size mm | M10 |
| Type | Reversible |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| CSK Screw Size mm | 6.0 x 40 |
| No of Nuts | 2 |
| No of CSK Screws | 26 |
| No of Carriage Bolts | 2 |
| No of Washers | 2 |
| To Suit Gate Width mm | 2100 - 3150 |
| Pack Dimensions L x W x H mm | 152 x 30 x 1219 |
| Pack Weight kg | 6.38 |
| Carton Qty Packs | 2 Pairs |
| Pallet Qty Packs | 88 Pairs |
| Product Code | HRH1050B |
| SKU Barcode | 5055893360682 |
| Pin Dia mm | 19 |
| Pin Dia inch | 3/4 |
| Rec Screw Dia mm | 6.0 |
| To Fit Carriage Bolt Dia mm | M10 |
| No of Bolt Holes | 2 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Included Items | M10 x 100mm Carriage Bolts (Qty 2), M10 Hex Full Nuts (Qty 2), M10 Washers (Qty 2), 6.0 x 40mm Countersunk Screws (Qty 26) |
Attribute Group 1
| Brand | TIMCO |

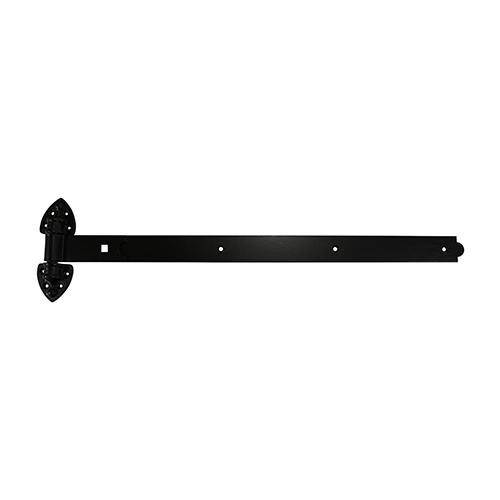

Pair of Heavy Reversible Hinges - Black
1050mm
- Product Code: HRH1050B
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893360682
