Product Information
Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Documents
Technical Specifications
Product Specification
Band Length inch 30
Band Length mm 750
Band Thickness mm 5.6
Band Width mm 50
Carriage Bolt Size mm M10 x 100
Nut Size mm M10
Washer Size mm M10
Type Reversible
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
CSK Screw Size mm 6.0 x 40
No of Nuts 2
No of CSK Screws 22
No of Carriage Bolts 2
No of Washers 2
To Suit Gate Width mm 1500 - 2250
Pack Dimensions L x W x H mm 152 x 30 x 914
Pack Weight kg 5.59
Carton Qty Packs 5 Pairs
Pallet Qty Packs 100 Pairs
Product Code HRH750B
SKU Barcode 5055893360668
Pin Dia mm 19
Pin Dia inch 3/4
Rec Screw Dia mm 6.0
To Fit Carriage Bolt Dia mm M10
No of Bolt Holes 2
Product Specifications
Finish Epoxy Black
Material Carbon Steel
Nut Type Hex Full
Included Items M10 x 100mm Carriage Bolts (Qty 2), M10 Hex Full Nuts (Qty 2), M10 Washers (Qty 2), 6.0 x 40mm Countersunk Screws (Qty 22)
Attribute Group 1
Brand TIMCO

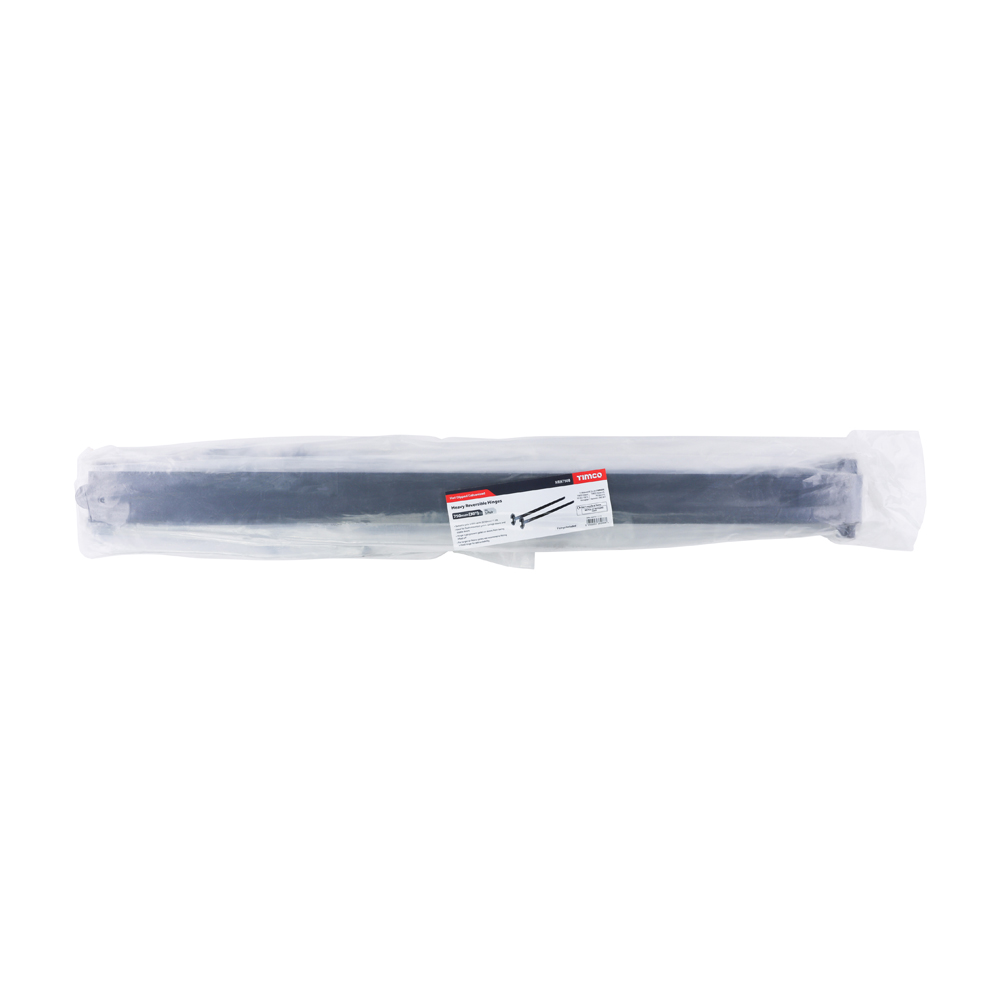

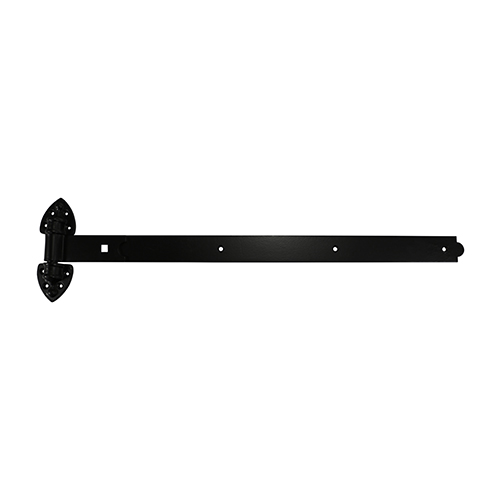

Pair of Heavy Reversible Hinges - Black

750mm

  • Product Code: HRH750B
  • Pack Type: Plain Bag
  • Pack Quantity: 1
  • Barcode: 5055893360668
