Curved rail hinge sets are ideal for flush mounted fully framed gates with a curved top ledge. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
Documents
Technical Specifications
Product Specification
| Band Thickness mm | 4.8 |
| Band Width mm | 40 |
| Bottom Band L mm | 200 |
| Carriage Bolt Size mm | M10 x 100 |
| Hook Plate Size L x W mm | 160 x 50 |
| Nut Size mm | M10 |
| Top Band L inch | 12 |
| Top Band L mm | 300 |
| Washer Size mm | M10 |
| Type | Curved |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| CSK Screw Size mm | 6.0 x 40 |
| Hand | Right-Hand |
| No of Nuts | 2 |
| No of CSK Screws | 13 |
| No of Carriage Bolts | 2 |
| No of Washers | 2 |
| To Suit Gate Width mm | 600 - 900 |
| Pack Dimensions L x W x H mm | 127 x 30 x 406 |
| Pack Weight kg | 1.56 |
| Carton Qty Packs | 5 Pairs |
| Pallet Qty Packs | 200 Pairs |
| Product Code | CRHRG |
| SKU Barcode | 5055893360460 |
| Pin Dia mm | 12 |
| Pin Dia inch | 1/2 |
| Rec Screw Dia mm | 6.0 |
| To Fit Carriage Bolt Dia mm | M10 |
| No of Bolt Holes | 2 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Included Items | M10 x 100mm Carriage Bolts (Qty 2), M10 Hex Full Nuts (Qty 2), M10 Washers (Qty 2), 6.0 x 40mm Countersunk Screws (Qty 13) |
Attribute Group 1
| Brand | TIMCO |

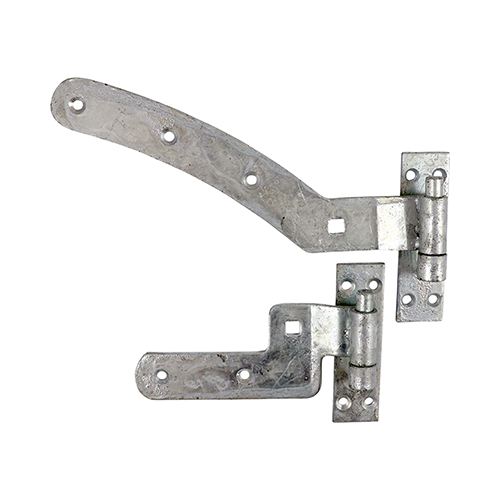

Pair of Curved Rail Hinge Set - Right Hand - Hot Dipped Galvanised
300mm
- Product Code: CRHRG
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893360460
