Product Information
Adjustable hook and band hinges are for hanging doors or gates flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural applications. They feature an adjustable eye bolt to allow for gate alignment whilst being fitted or at a later stage if any movement occurs. Fixings included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 30 |
| Band Length mm | 750 |
| Band Thickness mm | 5 |
| Band Width mm | 60 |
| Carriage Bolt Size mm | M12 x 65 |
| Hook Plate Size L x W mm | 200 x 60 |
| Nut Size mm | M12 |
| Washer Size mm | M12 |
| Type | Adjustable |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| CSK Screw Size mm | 6.0 x 40 |
| No of Nuts | 2 |
| No of CSK Screws | 14 |
| No of Carriage Bolts | 2 |
| No of Washers | 2 |
| To Suit Gate Width mm | 1500 - 2250 |
| Pack Dimensions L x W x H mm | 152 x 30 x 914 |
| Pack Weight kg | 7.28 |
| Carton Qty Packs | 4 Pairs |
| Pallet Qty Packs | 80 Pairs |
| Product Code | ABH750G |
| SKU Barcode | 5055893360569 |
| Pin Dia mm | 19 |
| Pin Dia inch | 3/4 |
| Rec Screw Dia mm | 6.0 |
| To Fit Carriage Bolt Dia mm | M12 |
| No of Bolt Holes | 2 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Included Items | M12 x 65mm Carriage Bolts (Qty 2), M12 Hex Full Nuts (Qty 2), M12 Washers (Qty 2), 6.0 x 40mm Countersunk Screws (Qty 14) |
Attribute Group 1
| Brand | TIMCO |

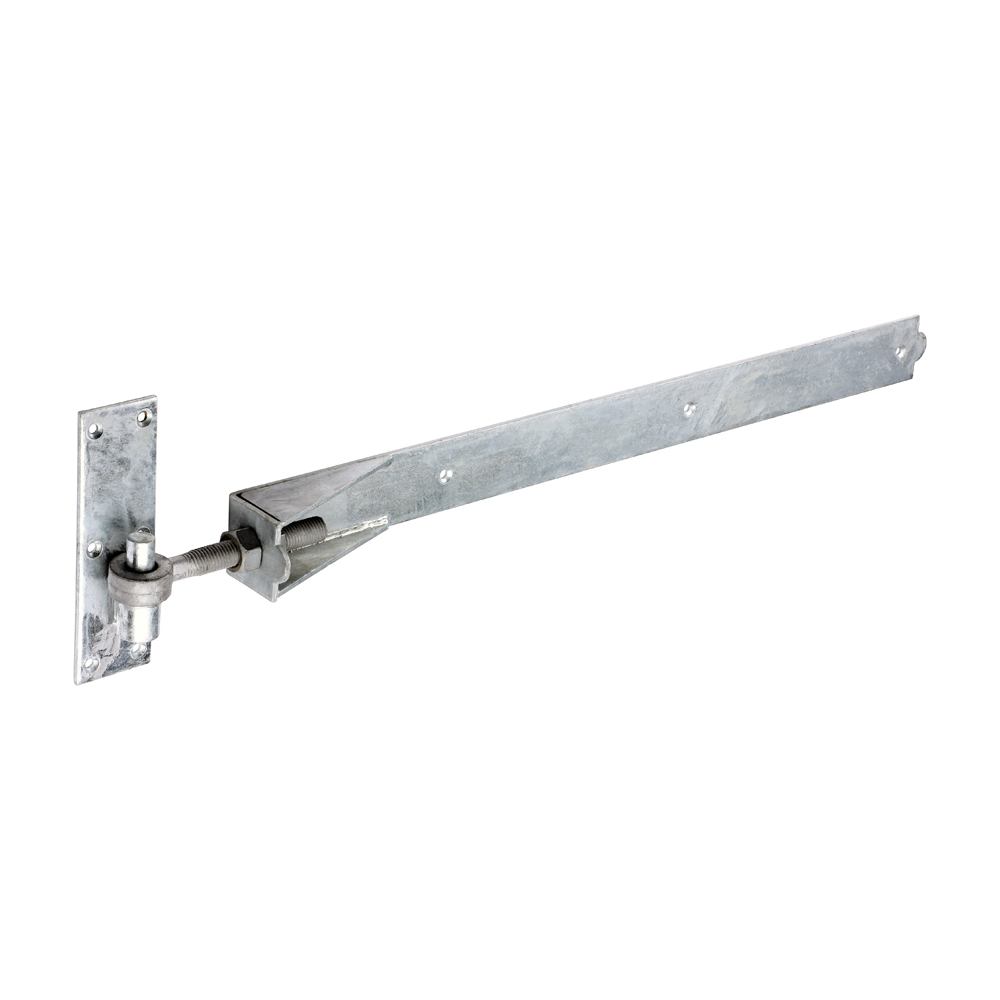

Pair of Adjustable Band & Hook on Plates - Hot Dipped Galvanised
750mm
- Product Code: ABH750G

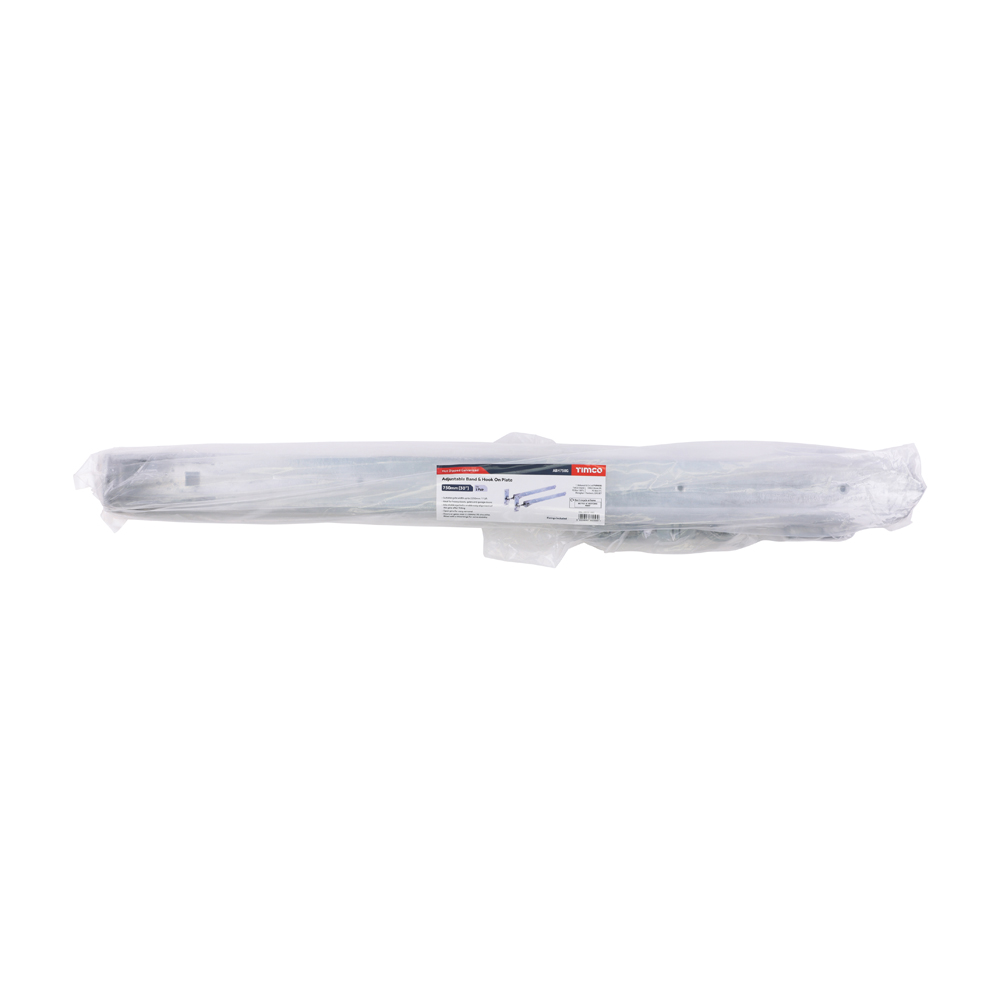

- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893360569
