Product Information
Adjustable hook and band hinges are for hanging doors or gates flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural applications. They feature an adjustable eye bolt to allow for gate alignment whilst being fitted or at a later stage if any movement occurs. Fixings included.
Documents
Technical Specifications
Product Specification
Band Length inch 48
Band Length mm 1200
Band Thickness mm 5
Band Width mm 70
Carriage Bolt Size mm M12 x 65
Hook Plate Size L x W mm 200 x 60
Nut Size mm M12
Washer Size mm M12
Type Adjustable
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
CSK Screw Size mm 6.0 x 40
No of Nuts 2
No of CSK Screws 20
No of Carriage Bolts 2
No of Washers 2
To Suit Gate Width mm 2400 - 3600
Pack Dimensions L x W x H mm 152 x 30 x 1371
Pack Weight kg 9.6
Carton Qty Packs 2 Pairs
Pallet Qty Packs 50 Pairs
Product Code ABH1200B
SKU Barcode 5055893360521
Pin Dia mm 19
Pin Dia inch 3/4
Rec Screw Dia mm 6.0
To Fit Carriage Bolt Dia mm M12
No of Bolt Holes 2
Product Specifications
Finish Epoxy Black
Material Carbon Steel
Nut Type Hex Full
Included Items M12 x 65mm Carriage Bolts (Qty 2), M12 Hex Full Nuts (Qty 2), M12 Washers (Qty 2), 6.0 x 40mm Countersunk Screws (Qty 20)
Attribute Group 1
Brand TIMCO

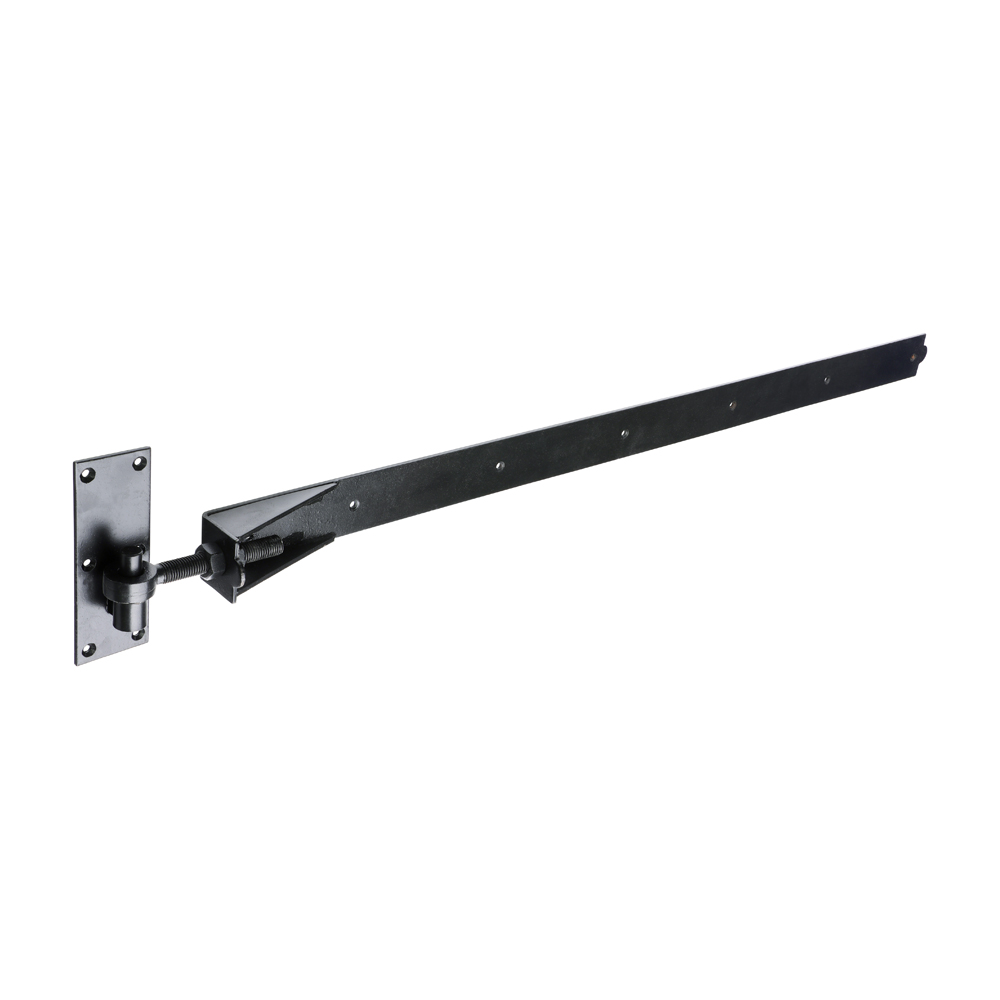

Pair of Adjustable Band & Hook on Plates - Black

1200mm

  • Product Code: ABH1200B

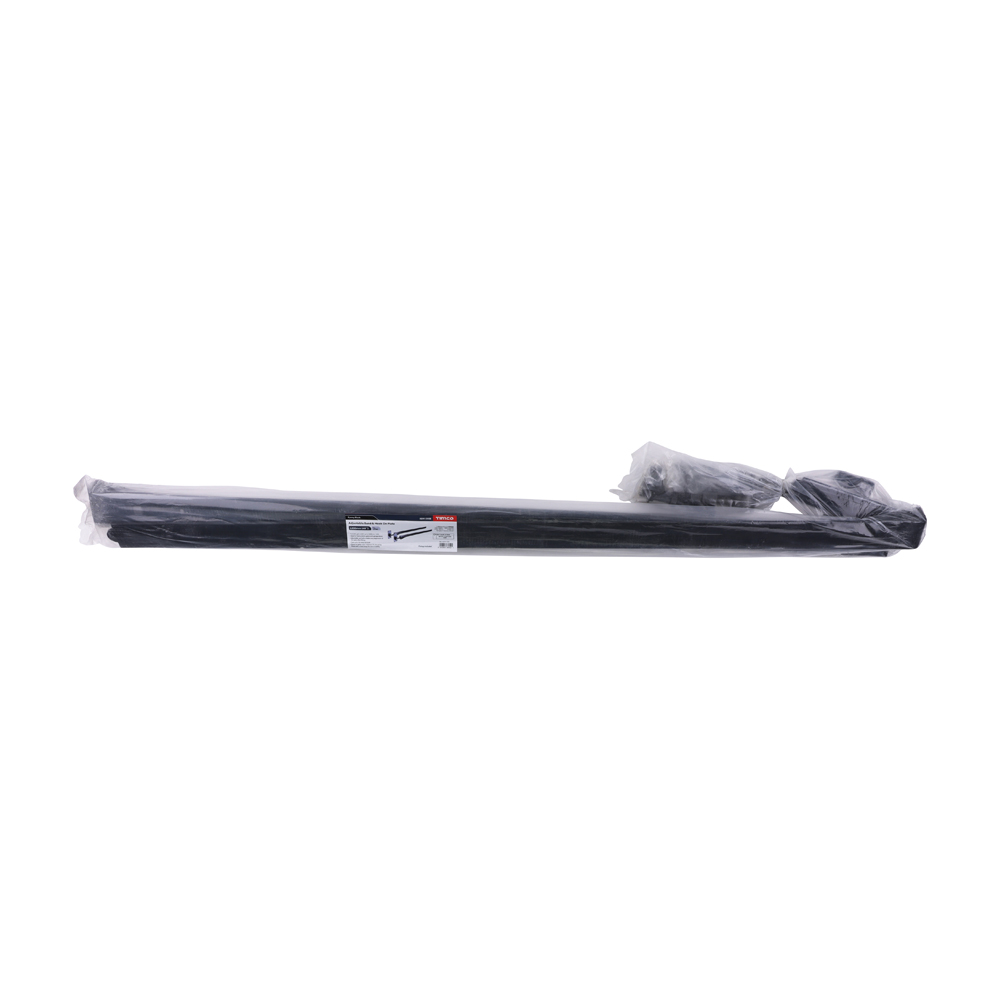

  • Pack Type: Plain Bag
  • Pack Quantity: 1
  • Barcode: 5055893360521
