Product Information

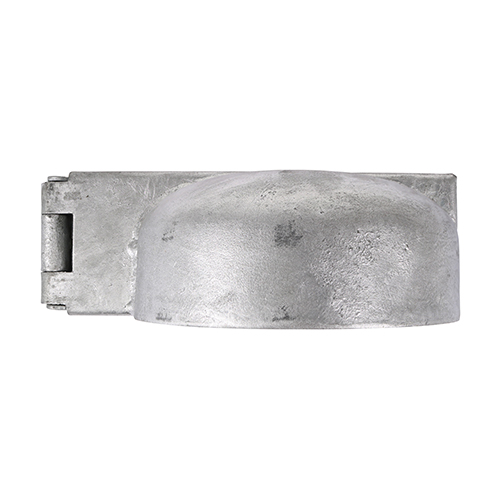

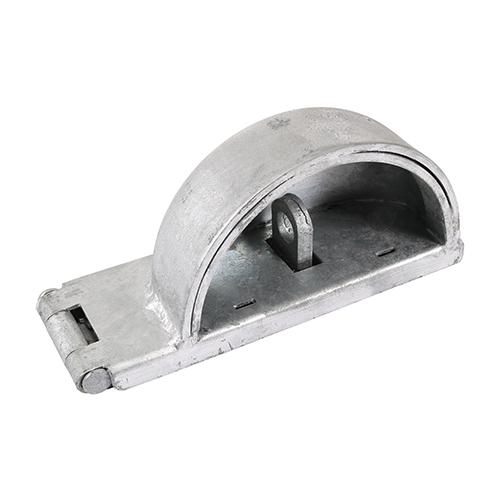

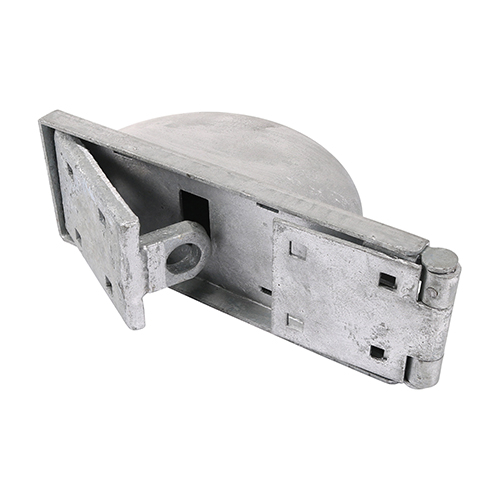

A high security, heavy duty hasp and staple for sheds, gates and doors in heavy domestic, commercial and agricultural applications. The hasp features a strong cast iron housing to cover and protect the padlock from hammer and cutter attack. Bolt fixed for additional security. Fixings not included.
Documents
Technical Specifications
Product Specification
| Fixing Plate Size L x W mm | 67 x 56 |
| Hasp Plate Size L x W mm | 185 x 65 |
| Size inch | 7 1/2 |
| Size mm | 185 |
| Staple Plate Size L x W mm | 76 x 56 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Padlock Shackle Diameter mm | 12 |
| Open Direction | Left |
| Pack Dimensions L x W x H mm | 160 x 20 x 390 |
| Pack Weight kg | 0.99 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | N/A |
| Product Code | 472582 |
| SKU Barcode | 5055893391730 |
| To Fit Carriage Bolt Dia mm | M6 |
| No of Bolt Holes | 8 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |
Padlock Protection Bar - Heavy Duty - Left - Hot Dipped Galvanised
7 1/2"
- Product Code: 472582
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893391730
