Product Information

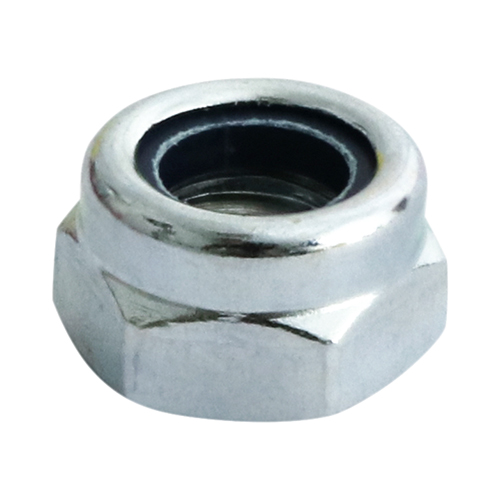

Type T hexagonal nylon nut with a metric thread and is thinner than a Type P. Also known as locking nuts designed to prevent the nut from loosening. Used for all bolting and fastening applications.
- Plated in Trivalent Chromium (Cr3) Zinc
- Standard metric thread
Documents
Technical Specifications
Product Specification
| Height mm | 10 |
| Size mm | M10 |
| Socket Size mm | 17 |
| Thread Pitch mm | 1.5 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 72 x 64 x 120 |
| Pack Weight kg | 1.01 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| DIN Standard | DIN 985 |
| Product Code | NT10Z |
| SKU Barcode | 5055331844446 |
| Thread Dia mm | M10 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Material | Carbon Steel |
| Nut Type | Nylon - Type T |
| Thread Type | Metric |
Attribute Group 1
| Brand | TIMCO |
Nylon Nuts - Type T - Zinc
M10
- Product Code: NT10Z
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055331844446
