Product Information

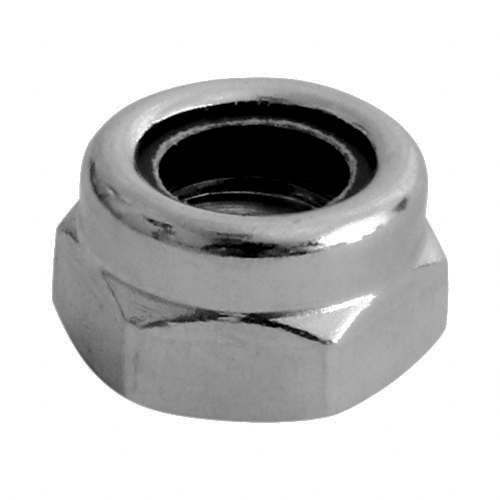

Type T hexagonal nylon nut with a metric thread and is thinner than a Type P. Also known as locking nuts designed to prevent the nut from loosening. Used for all bolting and fastening applications. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics.
- Conforms to ISO 10511
- Standard metric thread
Documents
Technical Specifications
Product Specification
| Height mm | 16 |
| Size mm | M16 |
| Socket Size mm | 24 |
| Thread Pitch mm | 2 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 120 x 112 x 15 |
| Pack Weight kg | 0.15 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | 3600 |
| DIN Standard | DIN 985 |
| Product Code | NT16SSX |
| SKU Barcode | 5055893340547 |
| Thread Dia mm | M16 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
| Nut Type | Nylon - Type T |
| Thread Type | Metric |
Attribute Group 1
| Brand | TIMCO |
Nylon Nuts - Type T - A2 Stainless Steel
M16
- Product Code: NT16SSX
- Pack Type: Bag
- Pack Quantity: 5
- Barcode: 5055893340547
