Product Information

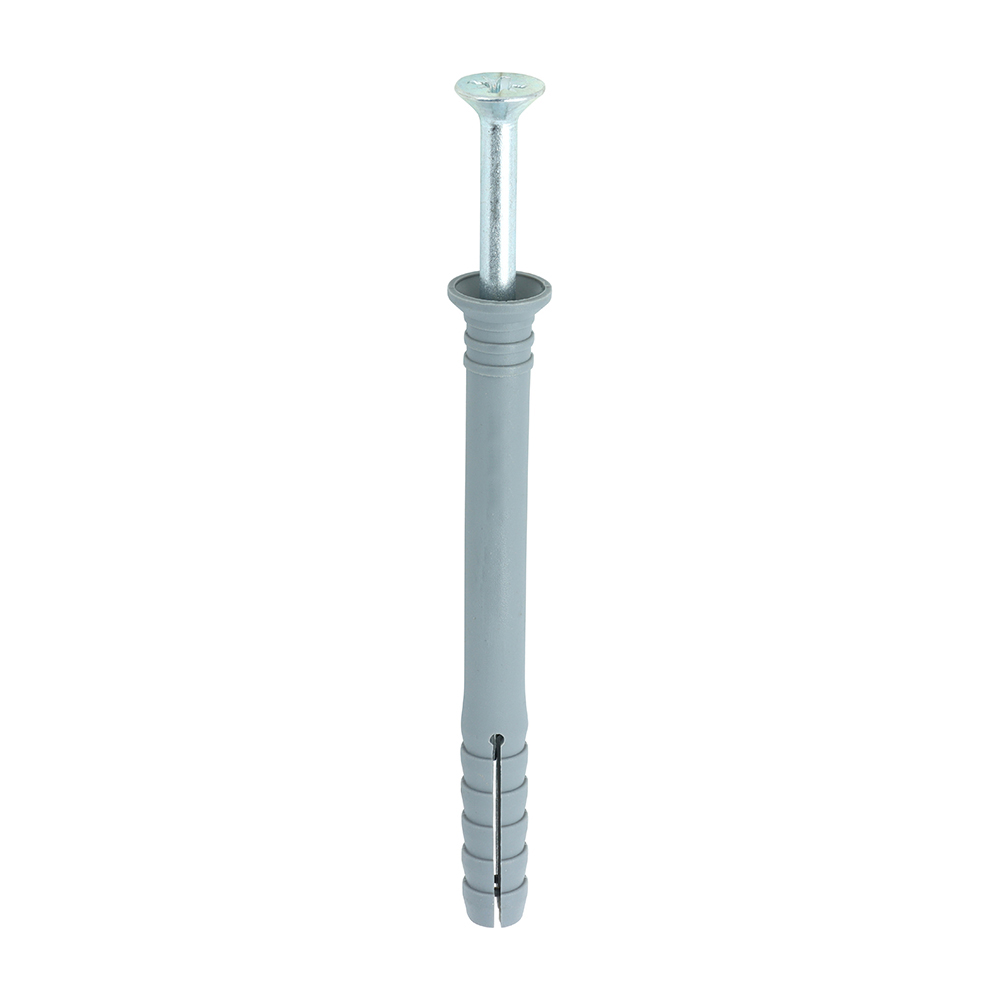

A light duty hammer-set through fixing for masonry.
- Quick and easy fixing
- Strong collar to support drive nail
- Tough durable nylon plug
Documents
Technical Specifications
Product Specification
| Plug Length mm | 40 |
| Plug Size mm | 6.0 x 40 |
| Screw Size mm | 3.5 x 45 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Fixture Thickness mm | 15 |
| Min Drill Hole Depth mm | 35 |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.04 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 6000 |
| Product Code | 60040HFP |
| SKU Barcode | 5055331828514 |
| Size Dia x L mm | 6.0 x 40 |
| Plug Dia mm | 6 |
| Drill Hole Dia mm | 6 |
Product Specifications
| Colour | White |
| Finish | Zinc |
| Head Type | Countersunk |
| Material | Carbon Steel |
| Recess Type | Pozi |
| Driver Bit Size | PZ2 |
| Substrates | Concrete, Brick, Block |
Attribute Group 1
| Brand | TIMCO |

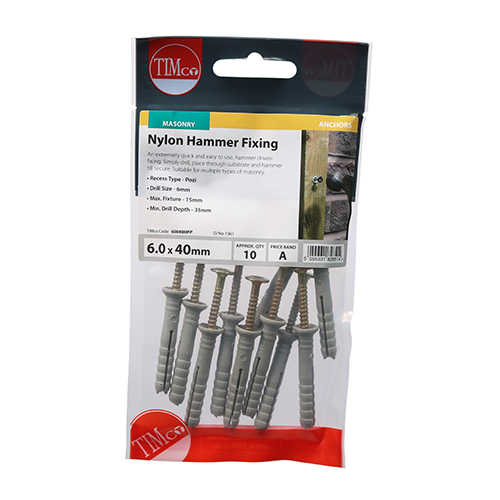

Nylon Hammer Fixings - PZ - Zinc
6.0 x 40
- Product Code: 60040HFP
- Pack Type: TIMpac
- Pack Quantity: 10
- Barcode: 5055331828514
