Product Information

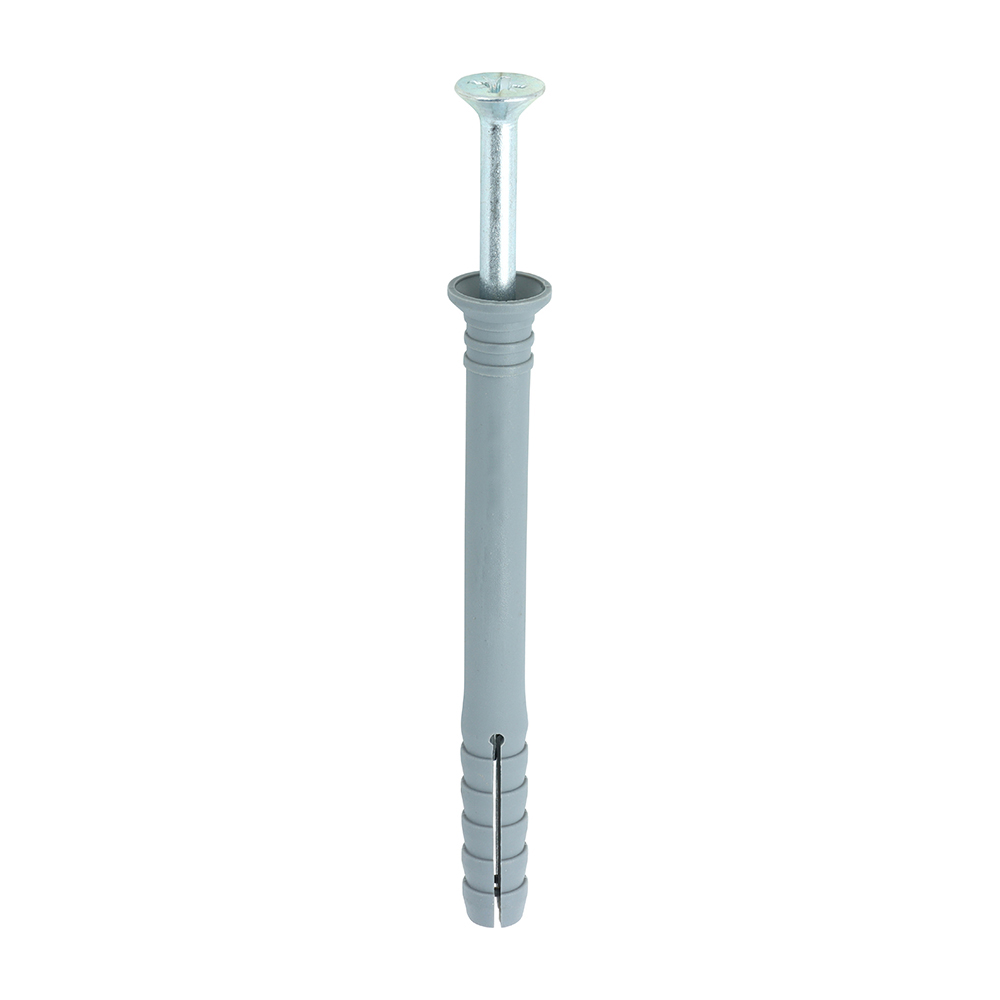

A light duty hammer-set through fixing for masonry.
- Quick and easy fixing
- Strong collar to support drive nail
- Tough durable nylon plug
Documents
Technical Specifications
Product Specification
| Plug Length mm | 100 |
| Plug Size mm | 8.0 x 100 |
| Screw Size mm | 5.0 x 105 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Fixture Thickness mm | 60 |
| Min Drill Hole Depth mm | 50 |
| Pack Dimensions L x W x H mm | 261 x 149 x 61 |
| Pack Weight kg | 0.578 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 600 |
| Product Code | 80100HFB |
| SKU Barcode | 5055331820808 |
| Size Dia x L mm | 8.0 x 100 |
| Plug Dia mm | 8 |
| Drill Hole Dia mm | 8 |
Product Specifications
| Colour | White |
| Finish | Zinc |
| Head Type | Countersunk |
| Material | Carbon Steel |
| Recess Type | Pozi |
| Driver Bit Size | PZ3 |
| Substrates | Concrete, Brick, Block |
Attribute Group 1
| Brand | TIMCO |

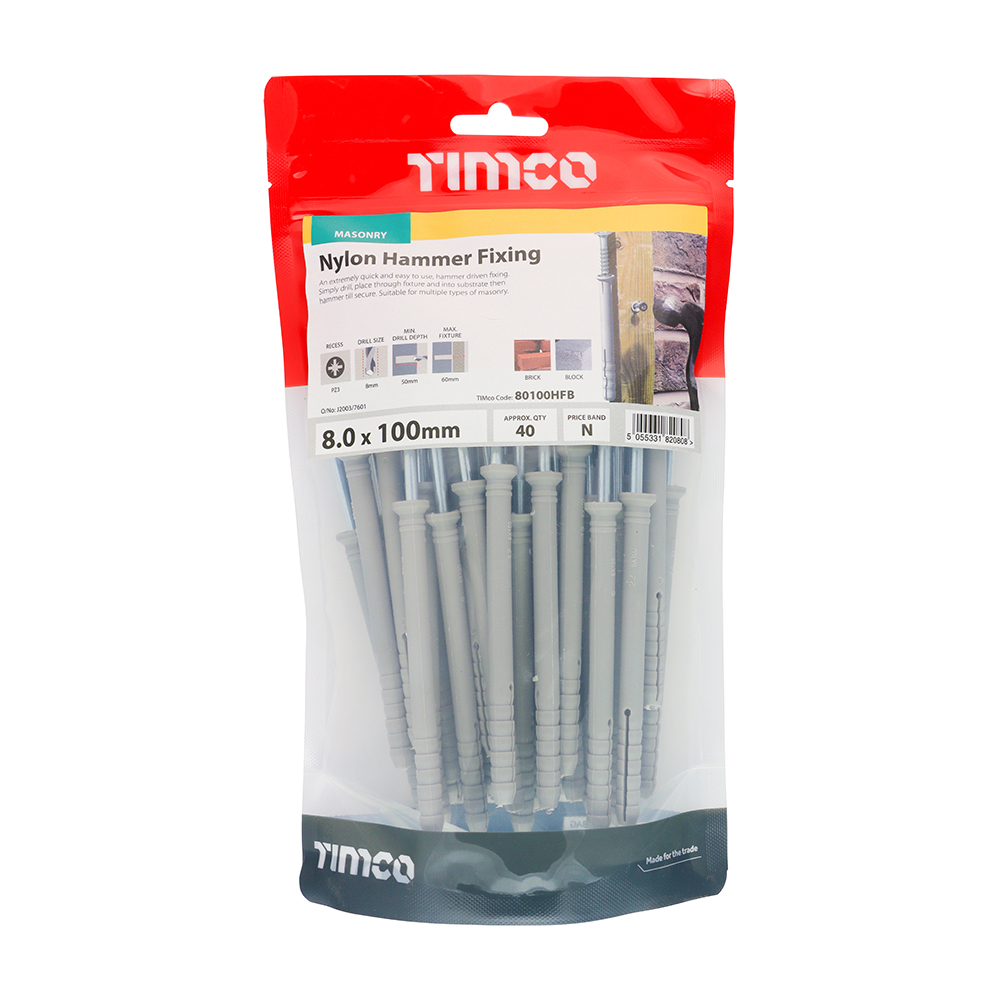

Nylon Hammer Fixings - PZ - Zinc
8.0 x 100
- Product Code: 80100HFB
- Pack Type: TIMbag
- Pack Quantity: 40
- Barcode: 5055331820808
