Product Information

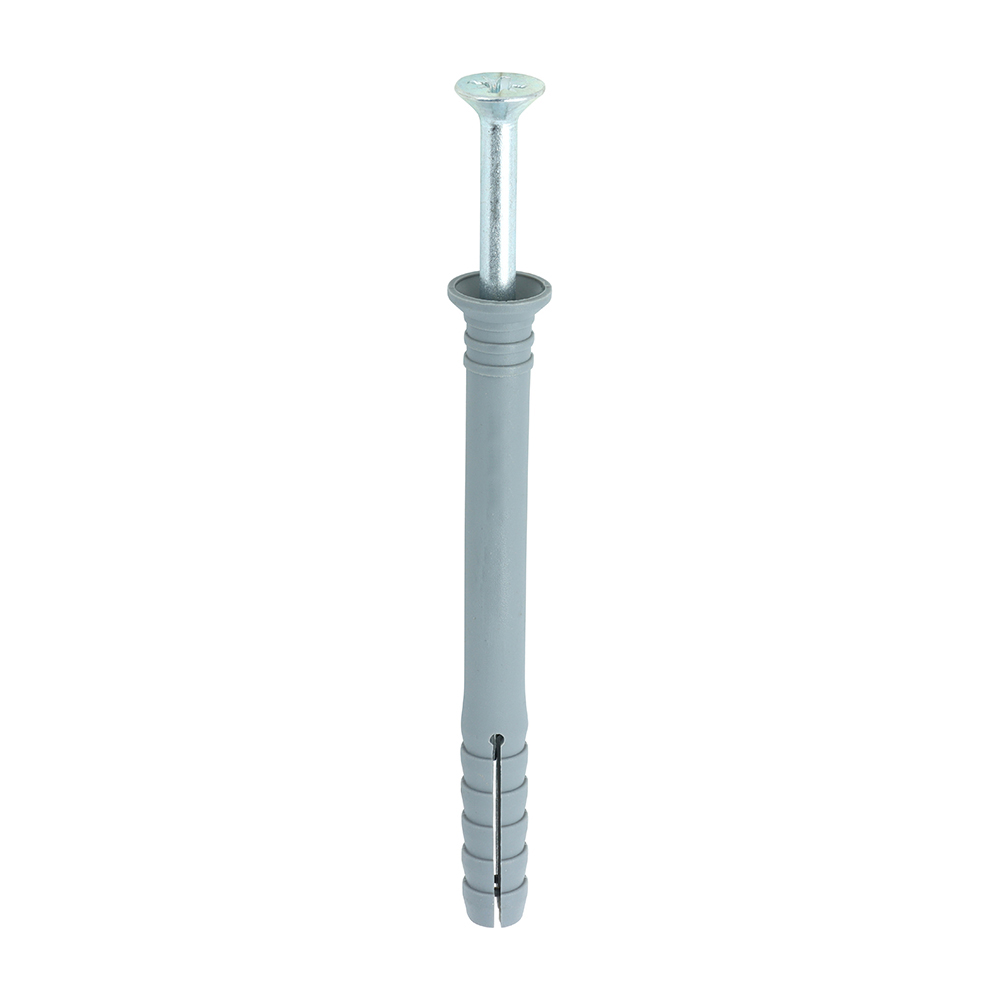

A light duty hammer-set through fixing for masonry.
- Quick and easy fixing
- Strong collar to support drive nail
- Tough durable nylon plug
Documents
Technical Specifications
Product Specification
| Plug Length mm | 100 |
| Plug Size mm | 8.0 x 100 |
| Screw Size mm | 5.0 x 105 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Fixture Thickness mm | 60 |
| Min Drill Hole Depth mm | 50 |
| Pack Dimensions L x W x H mm | 15 x 90 x 198 |
| Pack Weight kg | 0.12 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 3000 |
| Product Code | 80100HFP |
| SKU Barcode | 5055331828545 |
| Size Dia x L mm | 8.0 x 100 |
| Plug Dia mm | 8 |
| Drill Hole Dia mm | 8 |
Product Specifications
| Colour | White |
| Finish | Zinc |
| Head Type | Countersunk |
| Material | Carbon Steel |
| Recess Type | Pozi |
| Driver Bit Size | PZ3 |
| Substrates | Concrete, Brick, Block |
Attribute Group 1
| Brand | TIMCO |

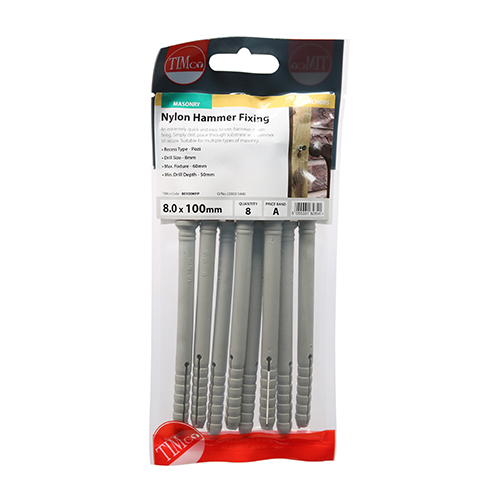

Nylon Hammer Fixings - PZ - Zinc
8.0 x 100
- Product Code: 80100HFP
- Pack Type: TIMpac
- Pack Quantity: 8
- Barcode: 5055331828545
