Product Information
A light duty hammer-set through fixing for masonry.
- Quick and easy fixing
- Strong collar to support drive nail
- Tough durable nylon plug
Documents
Technical Specifications
Product Specification
| Plug Length mm | 80 |
| Plug Size mm | 6.0 x 80 |
| Screw Size mm | 3.5 x 85 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Fixture Thickness mm | 55 |
| Min Drill Hole Depth mm | 35 |
| Pack Dimensions L x W x H mm | 190 x 90 x 90 |
| Pack Weight kg | 1.59 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 192 |
| Product Code | 60080HF |
| SKU Barcode | 5055017530373 |
| Size Dia x L mm | 6.0 x 80 |
| Plug Dia mm | 6 |
| Drill Hole Dia mm | 6 |
Product Specifications
| Finish | Zinc |
| Head Type | Countersunk |
| Material | Carbon Steel |
| Recess Type | Pozi |
| Driver Bit Size | PZ2 |
| Substrates | Concrete, Brick, Block |
Attribute Group 1
| Brand | TIMCO |

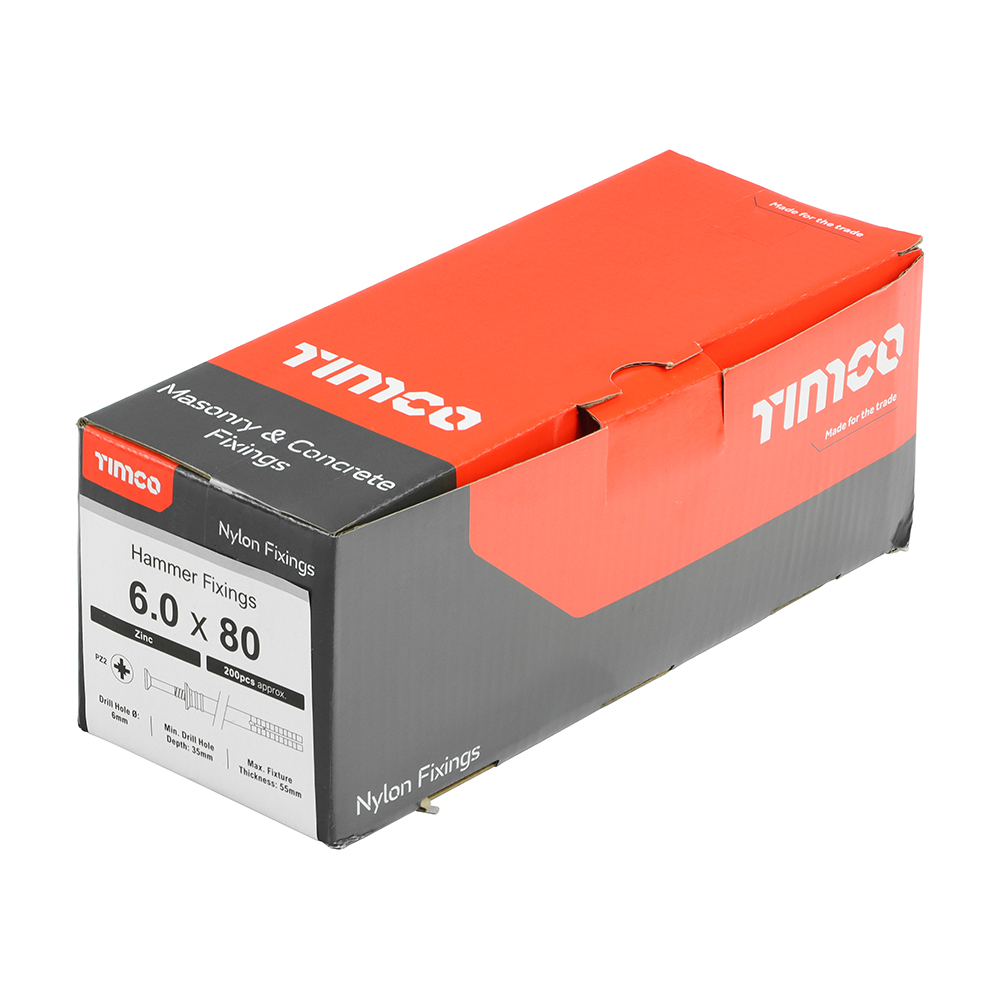

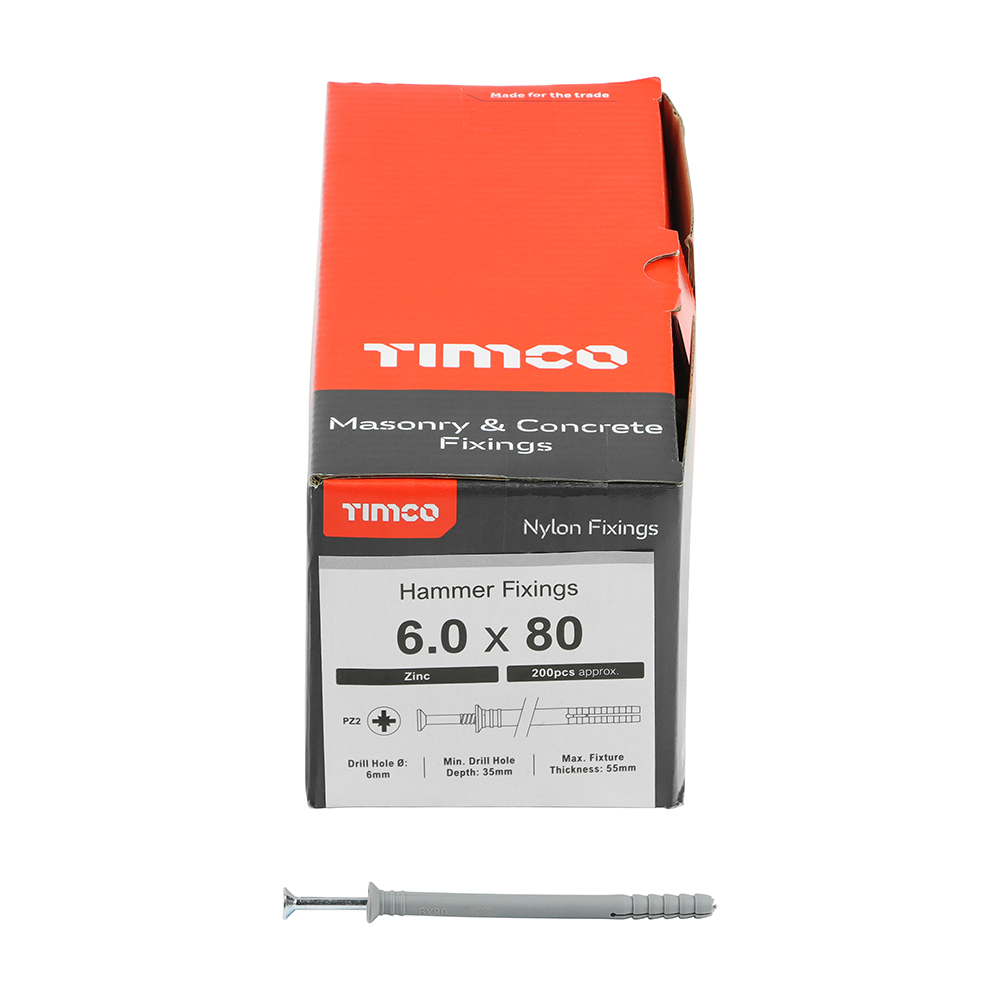

Nylon Hammer Fixing - PZ - Zinc
6.0 x 80
- Product Code: 60080HF
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055017530373
