Product Information
A versatile and reliable fixing for attaching framework to brick, block, stone, masonry and concrete.
- Anti-rotation lugs help prevent turning during installation
Documents
Technical Specifications
Product Specification
| Plug Length mm | 120 |
| Plug Size mm | 8.0 x 120 |
| Screw Size mm | 4.8 x 125 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Fixture Thickness mm | 80 |
| Min Drill Hole Depth mm | 50 |
| Pack Dimensions L x W x H mm | 234 x 138 x 86 |
| Pack Weight kg | 2.060 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 144 |
| Product Code | 08120NFF |
| SKU Barcode | 5055017530137 |
| Size Dia x L mm | 8.0 x 120 |
| Plug Dia mm | 8 |
| Drill Hole Dia mm | 8 |
Product Specifications
| Finish | Zinc |
| Head Type | Countersunk |
| Material | Carbon Steel |
| Recess Type | Pozi |
| Driver Bit Size | PZ3 |
| Substrates | Concrete, Brick, Block |
Attribute Group 1
| Brand | TIMCO |

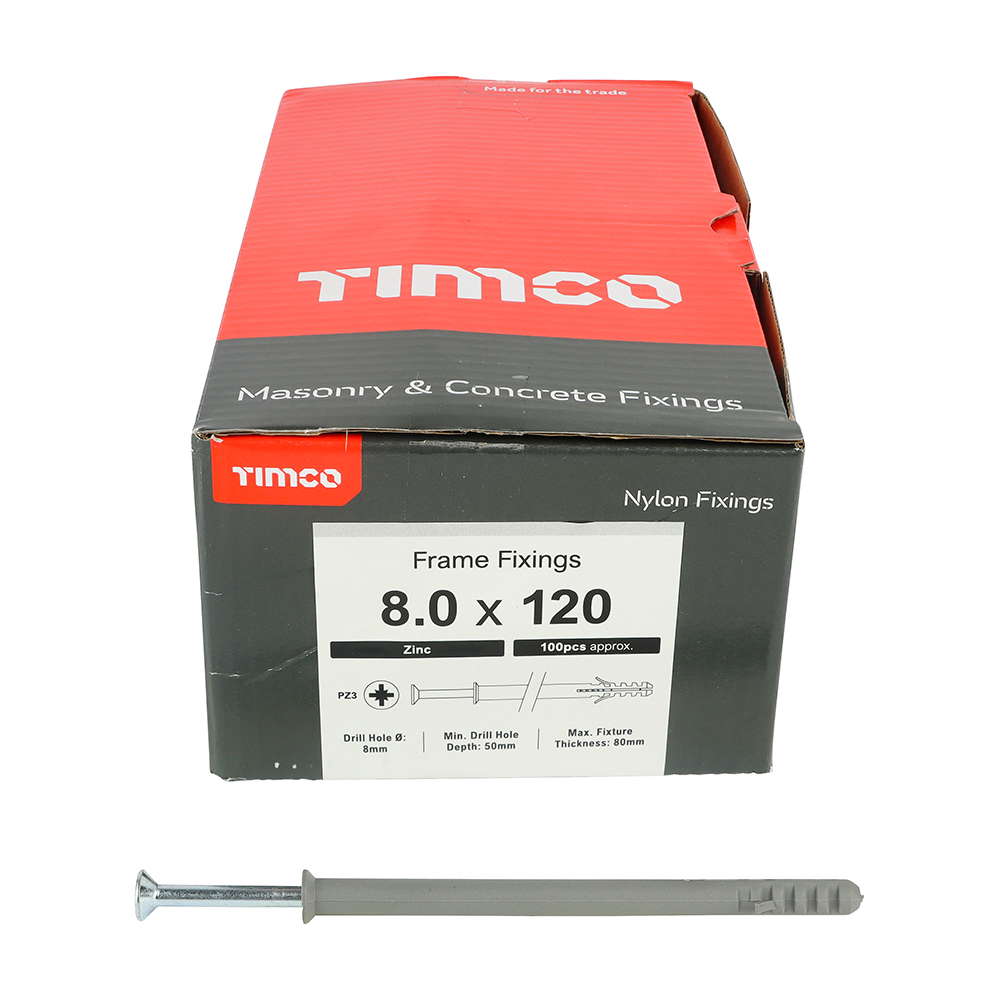

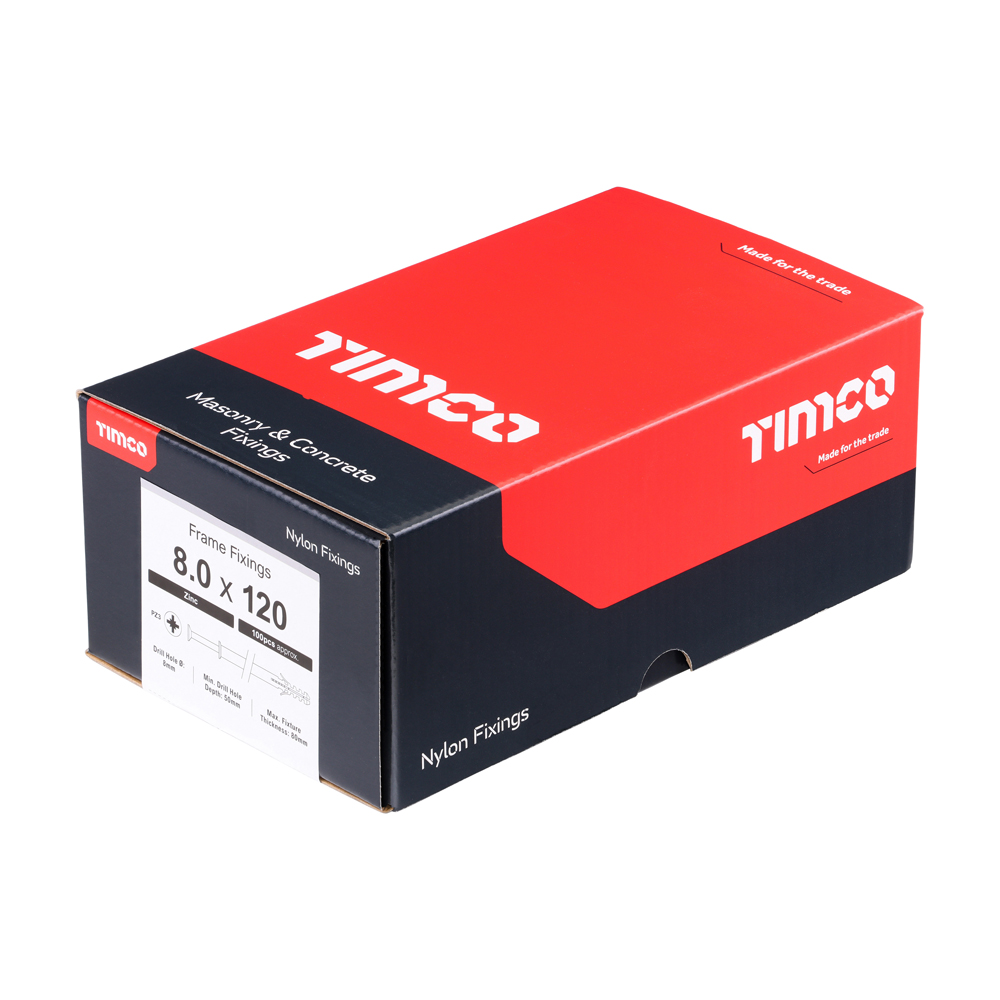

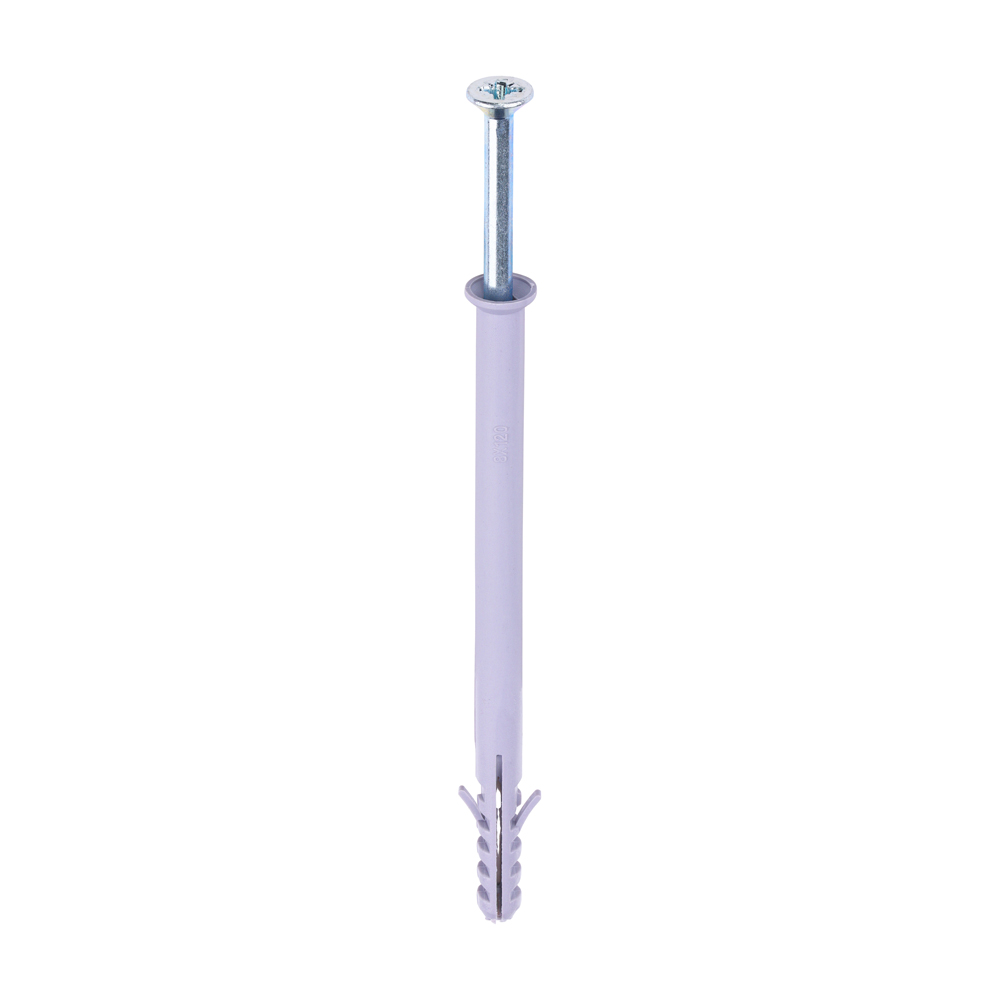

Nylon Frame Fixing - PZ - Zinc
8.0 x 120
- Product Code: 08120NFF
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055017530137
