Product Information

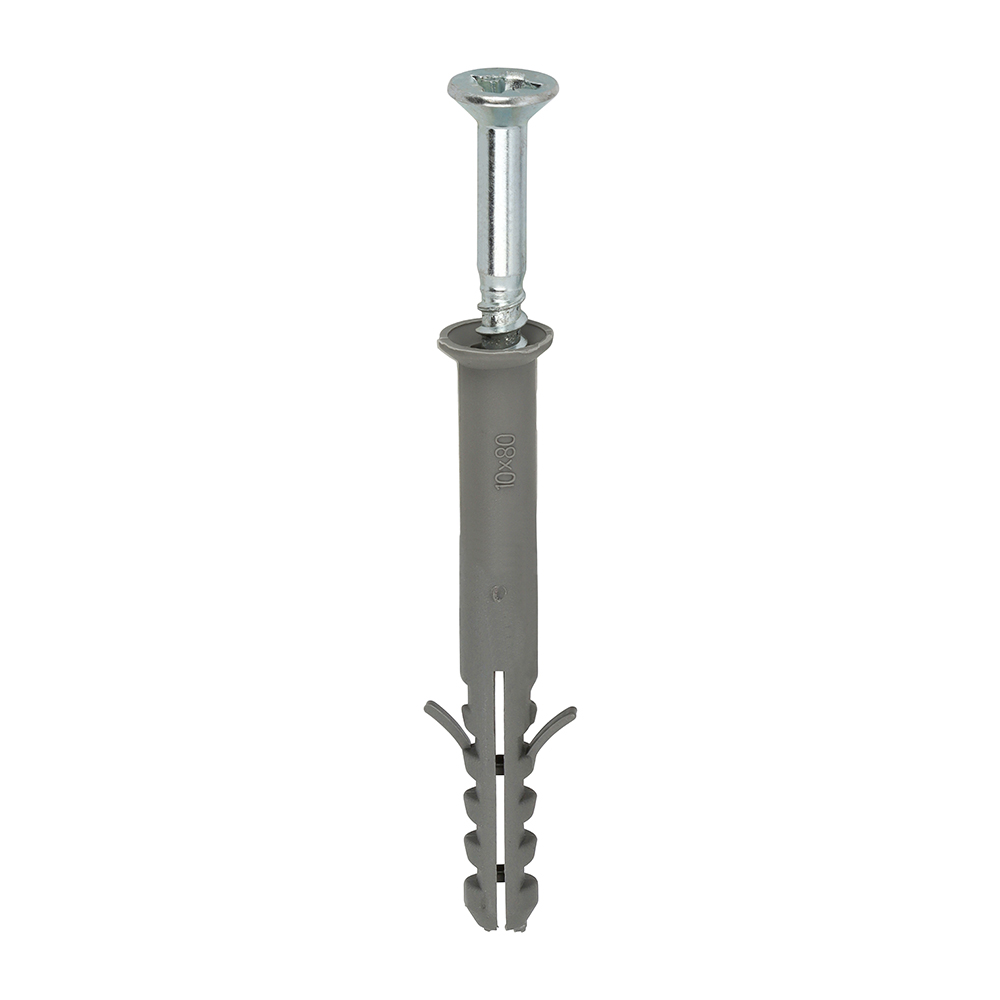

A versatile and reliable fixing for attaching framework to brick, block, stone, masonry and concrete.
- Anti-rotation lugs help prevent turning during installation
Documents
Technical Specifications
Product Specification
| Plug Length mm | 80 |
| Plug Size mm | 10.0 x 80 |
| Screw Size mm | 5.5 x 85 |
| Finish | Zinc |
| Head Type | Countersunk |
| Material | Carbon Steel |
| Recess Type | Pozi |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Driver Bit Size | PZ3 |
| Max Fixture Thickness mm | 30 |
| Min Drill Hole Depth mm | 60 |
| Substrates | Concrete, Brick, Block |
| Pack Dimensions L x W x H mm | 230 x 130 x 90 |
| Pack Weight kg | 1.99 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 144 |
| Product Code | 10080NFF |
| SKU Barcode | 5055017530144 |
| Size Dia x L mm | 10.0 x 80 |
| Plug Dia mm | 10 |
| Drill Hole Dia mm | 10 |
Attribute Group 1
| Brand | TIMCO |
Nylon Frame Fixing - PZ - Zinc
10.0 x 80
- Product Code: 10080NFF
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055017530144
