Product Information

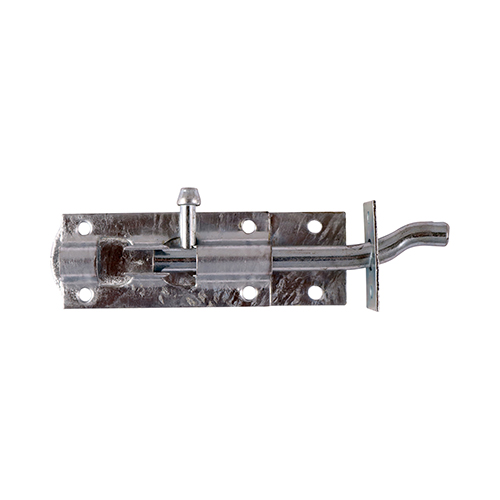

Necked tower bolts are used for securing recessed fitting gates and shed doors in a closed position. Fixings included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 8 |
| Bolt Length mm | 200 |
| Bolt Throw mm | 50 |
| Flat Keep Size L x W mm | 43 x 27 |
| Plate Size L x W mm | 225 x 45 |
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Included Items | 4.0 x 30mm Pan Screws (Qty 12) |
| No of Pan Screws | 12 |
| Pan Screw Size mm | 4.0 x 30 |
| Pack Dimensions L x W x H mm | 336 x 93 x 26 |
| Pack Weight kg | 0.350 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | TBN8GP |
| SKU Barcode | 5055893366431 |
| Flat Keep Hole Dia mm | 12 |
| Bolt Dia mm | 11 |
| Rec Screw Dia mm | 4.0 |
Attribute Group 1
| Brand | TIMCO |

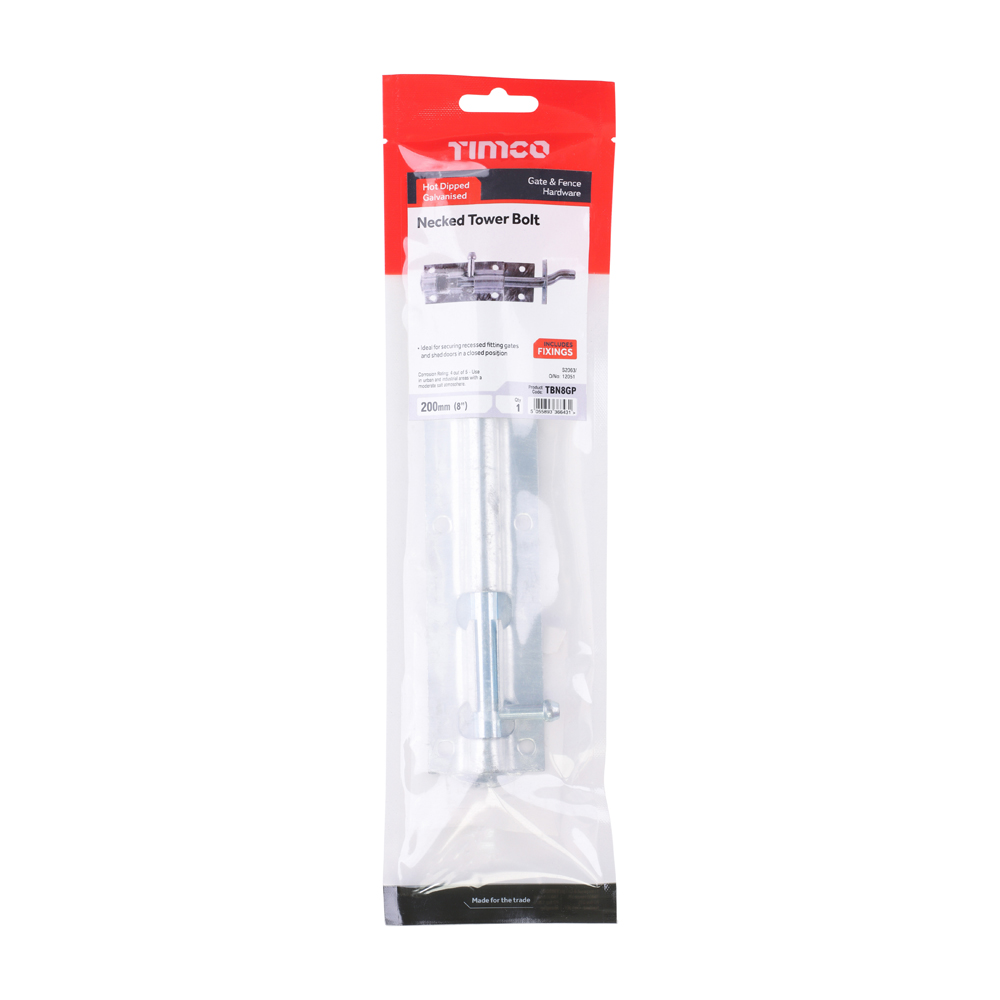

Necked Tower Bolt - Hot Dipped Galvanised
8"
- Product Code: TBN8GP
- Pack Type: TIMpac
- Pack Quantity: 1
- Barcode: 5055893366431
