Product Information
A narrow economy hinge for a variety of uses.
- Narrow hinge leafs for use with thinner doors
- Fixed pin for use with inward and outward opening doors
- Manufactured from steel and available in self colour and zinc finishes
Documents
Technical Specifications
Product Specification
| Length inch | 5 |
| Length mm | 127 |
| Open Width mm | 65 |
| Size L x W mm | 127 x 65 |
| Thickness mm | 1.7 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 16 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.32 |
| Carton Qty Packs | 30 |
| Pallet Qty Packs | 2,400 Pairs |
| Pattern | 5050 |
| Product Code | 434149 |
| SKU Barcode | 5056110809403 |
| Size imp | 5 |
| Knuckle Dia mm | 8.8 |
| Hole Dia mm | 6.3 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Zinc |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

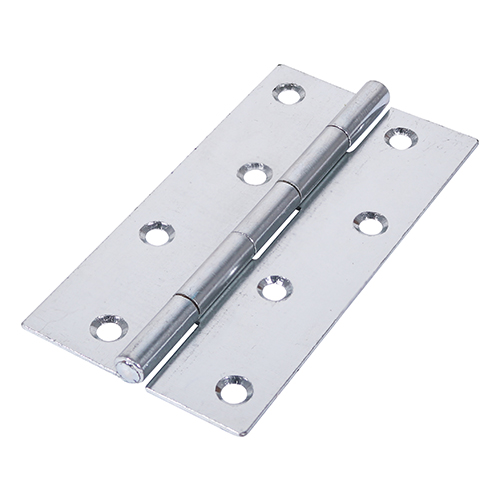

Narrow Plain Butt Hinge (5050) - Zinc
127 x 65
- Product Code: 434149
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110809403
