Product Information
A narrow economy hinge for a variety of uses.
- Narrow hinge leafs for use with thinner doors
- Fixed pin for use with inward and outward opening doors
- Manufactured from steel and available in self colour and zinc finishes
Documents
Technical Specifications
Product Specification
| Length inch | 3 |
| Length mm | 75 |
| Open Width mm | 48 |
| Size L x W mm | 75 x 48 |
| Thickness mm | 1.5 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.12 |
| Carton Qty Packs | 90 |
| Pallet Qty Packs | 7,200 Pairs |
| Pattern | 5050 |
| Product Code | 434645 |
| SKU Barcode | 5056110809342 |
| Size imp | 3 |
| Knuckle Dia mm | 7.2 |
| Hole Dia mm | 6 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Self Colour |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

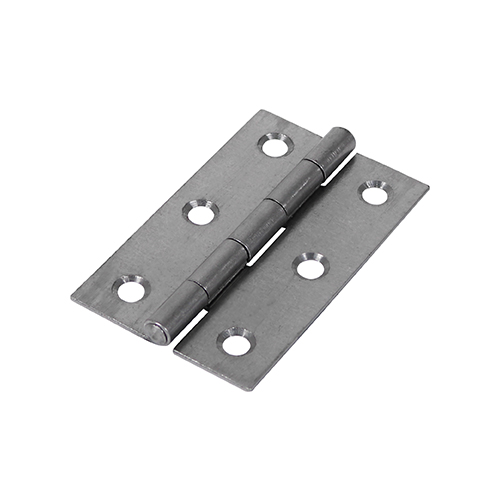

Narrow Plain Butt Hinge (5050) - Self Colour
75 x 48
- Product Code: 434645
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110809342
