Product Information

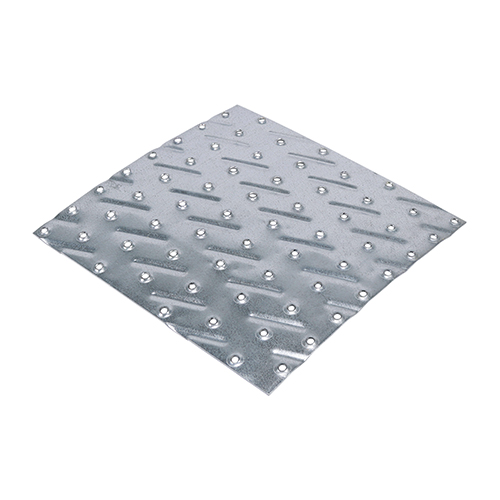

A versatile perforated plate used for connecting or repairing timber. All holes are pressed countersunk to aid location of the nail and to give a flush finish. Manufactured from galvanised steel to give a high level of corrosion resistance.
- Strengthening ribs for added rigidity
Documents
Technical Specifications
Product Specification
| Length mm | 178 |
| Thickness mm | 1 |
| Width mm | 169 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 1 x 169 x 178 |
| Pack Weight kg | 0.21 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| CE Standard Web | BS EN 14545:2008 |
| Product Code | 169NP |
| SKU Barcode | 5022456314727 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |
Nail Plates - Galvanised
169 x 178
- Product Code: 169NP
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456314727
