Product Information

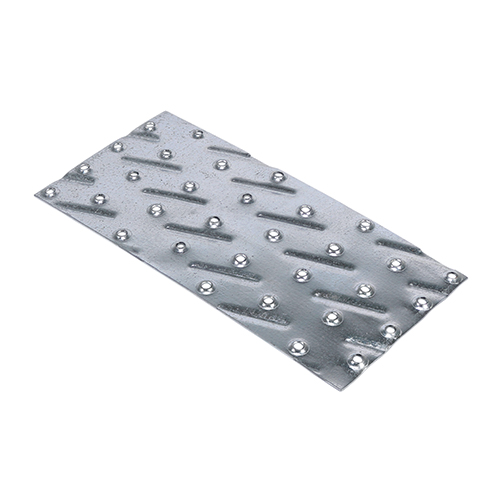

A versatile perforated plated used for connecting or repairing timber. All holes are pressed countersunk to aid location of the nail and to give a flush finish. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Strengthening ribs for added rigidity
Documents
Technical Specifications
Product Specification
| Length mm | 178 |
| Thickness mm | 1 |
| Width mm | 85 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 1 x 85 x 178 |
| Pack Weight kg | 0.104 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | 6400 |
| CE Standard Web | BS EN 14545:2008 |
| Product Code | 85NPS |
| SKU Barcode | 5022456321923 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
Attribute Group 1
| Brand | TIMCO |
Nail Plates - A2 Stainless Steel
85 x 178
- Product Code: 85NPS
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456321923
