Product Information
TIMCO’s Multi-Functional Hangers are designed for applications where additional strength is required or where access to the top of the timber or steel is not available. Designed for use with different fixings to give greater flexibility and improved performance. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. NOTE: Total length refers to the length of the hanger when laid flat.
- Conforms to Eurocode 5 and service class 2
Documents
Technical Specifications
Product Specification
| Bearing mm | 85 |
| Height mm | 127 |
| Thickness mm | 2 |
| Total Length mm | 404 |
| Width mm | 150 |
| Type | Multi-Functional |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Safe Working Load Long Term kN | 8.25 |
| Safe Working Load Medium Term kN | 9.4 |
| Safe Working Load Short Term kN | 9.9 |
| Pack Dimensions L x W x H mm | 85 x 150 x 127 |
| Pack Weight kg | 0.48 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Eurocode | 5 |
| Service Class | 2 |
| Product Code | 150404MFH |
| SKU Barcode | 5022456315885 |
| No of Bolt Holes M10 | 33 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
| Approval | BS 5268 |
Attribute Group 1
| Brand | TIMCO |

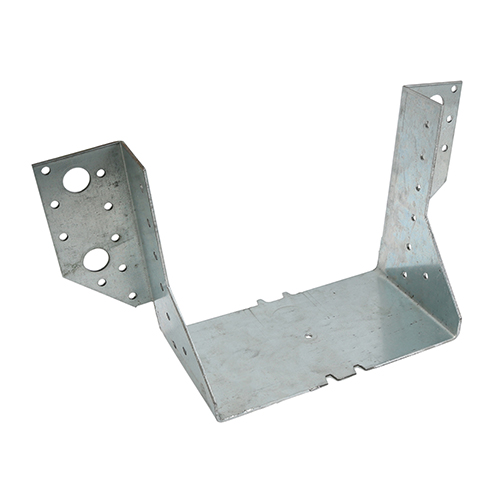

Multi-Functional Hangers - Galvanised
150 x 127
- Product Code: 150404MFH
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456315885
