Product Information
Monkey tail bolts are ideal for securing the top and / or bottom of gates and doors. They feature an extended length handle for ease of operation and remain closed under tension. Supplied with a flat plate keep and staple keep for fitting in either flush frame mounting, recess frame mounting or floor mounting applications. Fixings not included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 12 |
| Bolt Length mm | 300 |
| Bolt Throw mm | 70 |
| Flat Keep Hole Size mm | 16 x 16 |
| Flat Keep Size L x W mm | 49 x 49 |
| Plate Size L x W mm | 200 x 50 |
| Square Bolt mm | 16 x 16 |
| Staple Keep Size L x W mm | 51 x 31 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 160 x 20 x 530 |
| Pack Weight kg | 0.77 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | N/A |
| Product Code | MBS12BB |
| SKU Barcode | 5055893355749 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

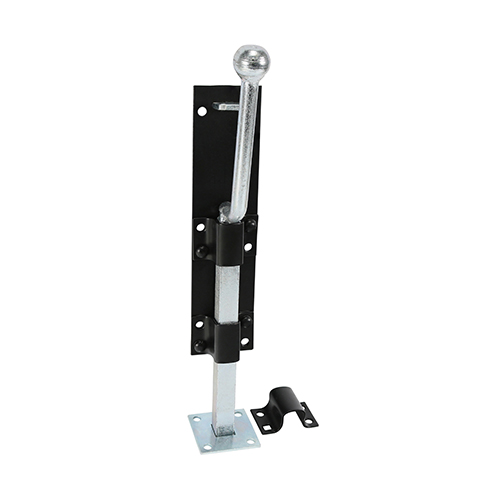

Monkey Tail Bolt - Black
12"
- Product Code: MBS12BB
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893355749
