Product Information

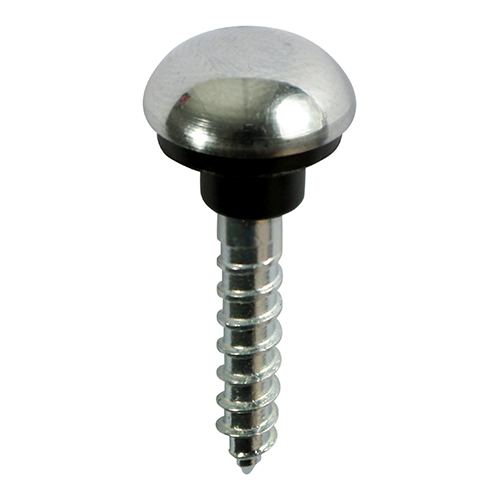

For hanging a mirror where an aesthetic finish is required. Chrome plated dome head screw cap with rubber washer to protect the mirror from cracking. Includes screws with a slotted recess.
- Dome screw cap with a polished finish
Documents
Technical Specifications
Product Specifications
| Gauge | 8 |
| Finish | Chrome |
| Head Type | Dome |
| Recess Type | Slotted |
| Thread Coverage | Partially Threaded |
| Thread Type | Article 1 Tapered |
| Substrates | Mirror |
Product Specification
| Length inch | 1 1/2 |
| Length mm | 40 |
| Diameter mm | 4 |
| Screw Size mm | 4.0 x 40 |
| Thread Length mm | 26 |
| Cap Thread Type | Female 5BA |
| Screw Material | Carbon Steel with a Zinc finish |
| Type | Dome |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.035 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 6000 |
| Product Code | 08112CMIRP |
| SKU Barcode | 5055331828460 |
| Screw Size imp | 8 x 1 1/2 |
| Thread Dia mm | 4 |
| Cap Material | Solid Brass with a Chrome finish |
Attribute Group 1
| Brand | TIMCO |

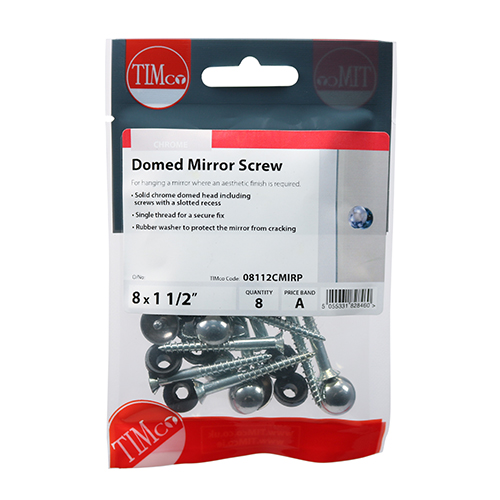

Mirror Screws - Zinc - Chrome Dome
8 x 1 1/2
- Product Code: 08112CMIRP
- Pack Type: TIMpac
- Pack Quantity: 8
- Barcode: 5055331828460
