Product Information

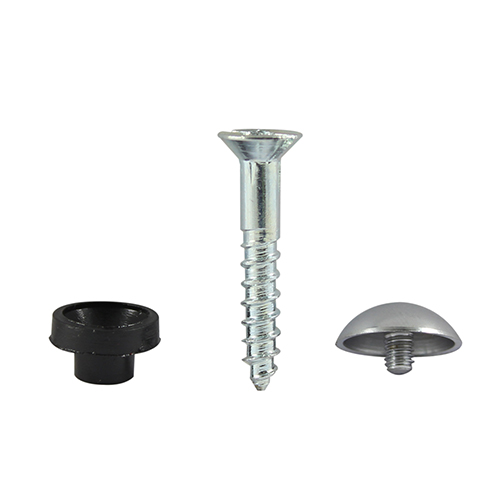

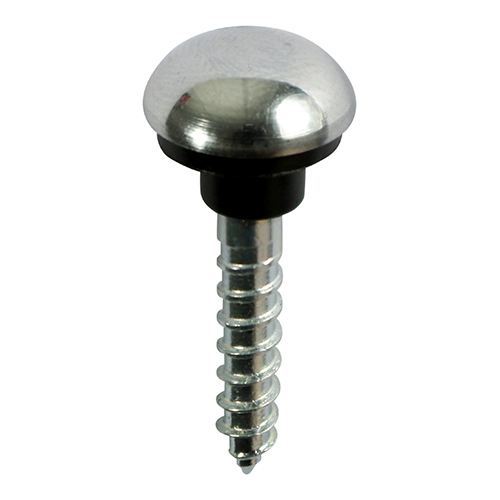

For hanging a mirror where an aesthetic finish is required. Chrome plated dome head with rubber washer to protect the mirror from cracking. Includes screws with a slotted recess. Note: a 6mm hole is required in the mirror.
- Dome screw cap with a polished finish
Documents
Technical Specifications
Product Specifications
| Gauge | 8 |
| Finish | Chrome |
| Head Type | Dome |
| Recess Type | Slotted |
| Thread Coverage | Partially Threaded |
| Thread Type | Article 1 Tapered |
| Substrates | Softwood, Masonry (with plug) |
Product Specification
| Length inch | 1 1/4 |
| Length mm | 30 |
| Screw Size mm | 4.0 x 30 |
| Thread Length mm | 19.8 |
| Cap Thread Type | Female 5BA |
| Screw Material | Carbon Steel with a Zinc finish |
| Type | Dome |
| Pack Dimensions L x W x H mm | 135 x 90 x 90 |
| Pack Weight kg | 0.77 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | 08114CMIR200 |
| SKU Barcode | 5055017556595 |
| Screw Size imp | 8 x 1 1/4 |
| Thread Dia mm | 4 |
| Cap Material | Solid Brass with a Chrome finish |
Attribute Group 1
| Brand | TIMCO |
Mirror Hanging Screws - Zinc - Chrome Dome
8 x 1 1/4
- Product Code: 08114CMIR200
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055017556595
