Product Information

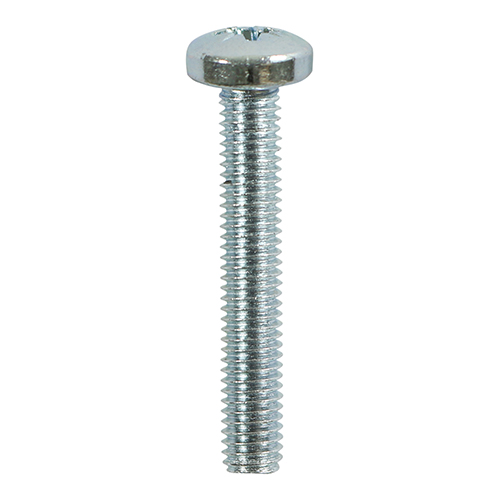

Pan head machine screws with metric thread commonly used in pre-drilled and threaded holes. Pan head for extra clamping.
- Pan head for extra clamping
- Metric thread
Documents
Technical Specifications
Product Specification
| Length mm | 10 |
| Size mm | M5 x 10 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 70 x 58 x 34 |
| Pack Weight kg | 0.313 |
| Carton Qty Packs | 75 |
| Pallet Qty Packs | 2700 |
| DIN Standard | DIN 7985 |
| Product Code | 5010PPM |
| SKU Barcode | 5055893330029 |
| Thread Dia mm | M5 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Head Type | Pan |
| Material | Carbon Steel |
| Point Type | B Point |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Driver Bit Size | PZ2 |
| Substrates | Steel |
Attribute Group 1
| Brand | TIMCO |
Metric Threaded Machine Screws - PZ - Pan Head - Zinc
M5 x 10
- Product Code: 5010PPM

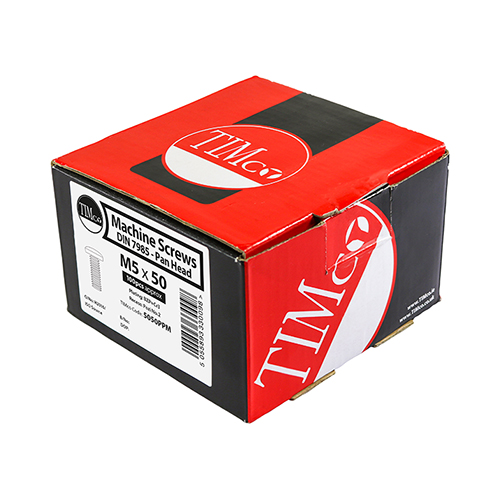

- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055893330029
