Product Information
Used for stitching metal or attaching to metal. A pre-drilled hole is required. Pan head for improved clamping. Manufactured from A2 Stainless Steel for use where ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics.
- Pan head for extra clamping
- Stainless Steel suitable for outdoor applications
- 60° self-tapping thread for ease of insertion
Documents
Technical Specifications
Product Specifications
| Gauge | 12 |
| Head Type | Pan |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | AB Point |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Driver Bit Size | PZ3 |
| Substrates | Steel, Thin Sheet Metal |
Product Specification
| Length inch | 1 |
| Length mm | 25 |
| Diameter mm | 5.5 |
| Size mm | 5.5 x 25 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 95 x 90 x 60 |
| Pack Weight kg | 0.9 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 720 |
| DIN Standard | DIN 7981 |
| Product Code | 5525CPASS |
| SKU Barcode | 5055893372388 |
| Size imp | 12 x 1 |
| Thread Dia mm | 5.5 |
Attribute Group 1
| Brand | TIMCO |

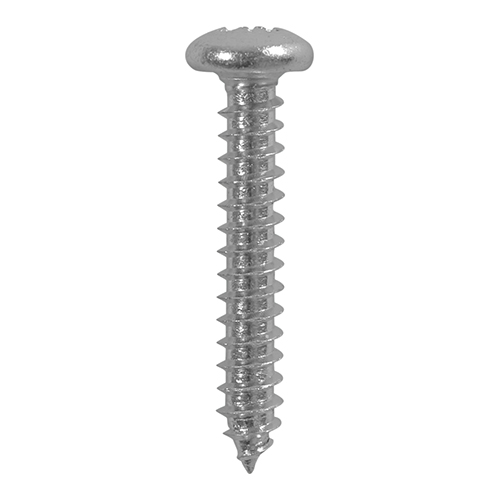

Metal Tapping Screws - PZ - Pan - Self-Tapping - A2 Stainless Steel
5.5 x 25
- Product Code: 5525CPASS
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055893372388
