Product Information
Used for stitching metal or attaching to metal. A pre-drilled hole is required.
- Flange head gives an aesthetic finish whilst increasing the clamping ability of the screw
- 60° self-tapping thread for ease of insertion
- Manufactured to BS 4174:1972
Documents
Technical Specifications
Product Specifications
| Gauge | 8 |
| Finish | Zinc & Clear Cr3 |
| Head Type | Flange |
| Material | Carbon Steel |
| Point Type | AB Point |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Driver Bit Size | PZ2 |
| Substrates | Steel, Thin Sheet Metal |
Product Specification
| Length inch | 3/4 |
| Length mm | 19 |
| Diameter mm | 4.2 |
| Size mm | 4.2 x 19 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 88 x 58 x 48 |
| Pack Weight kg | 0.38 |
| Carton Qty Packs | 38 |
| Pallet Qty Packs | 1824 |
| Product Code | 00834CFAZS |
| SKU Barcode | 5055893308523 |
| Size imp | 8 x 3/4 |
| Thread Dia mm | 4.2 |
Attribute Group 1
| Brand | TIMCO |

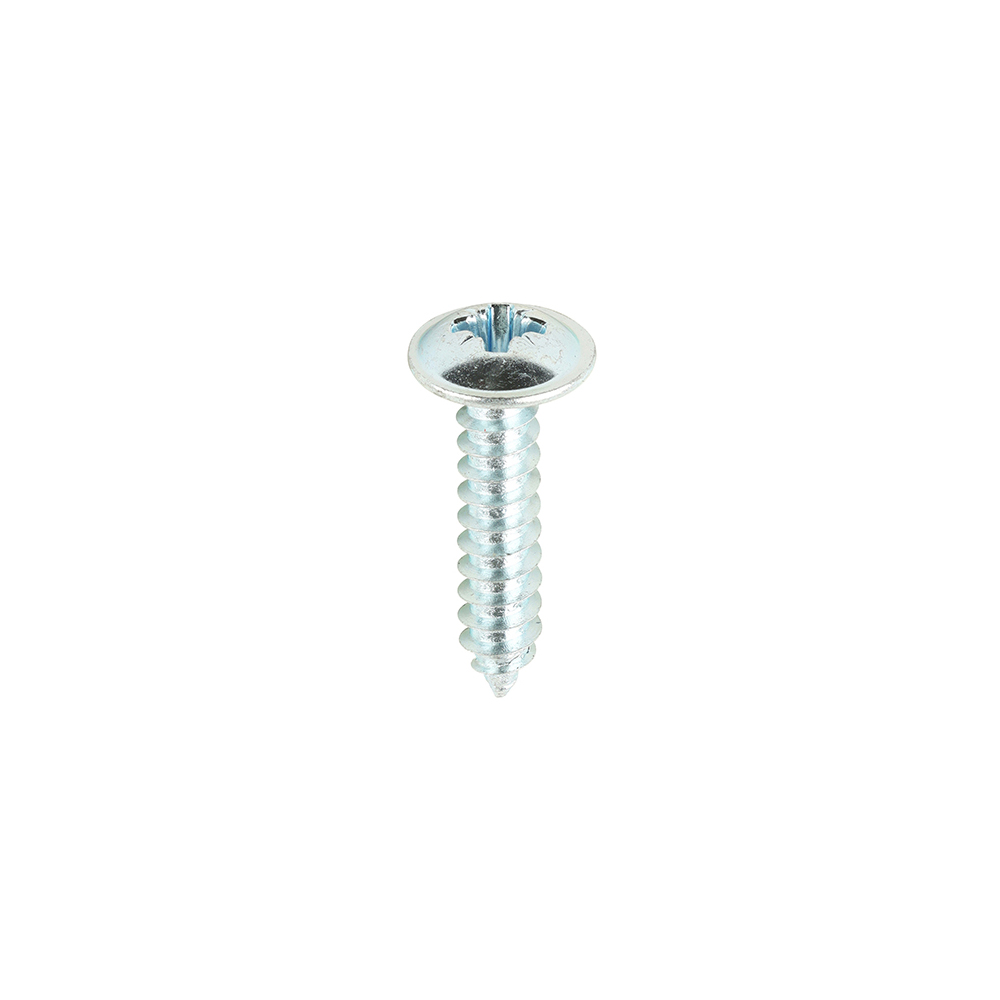

Metal Tapping Screws - PZ - Flange - Self-Tapping - Zinc
8 x 3/4
- Product Code: 00834CFAZS
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055893308523
