Product Information
Used for stitching metal or attaching to metal. A pre-drilled hole is required.
- Countersunk head gives a discreet finish into pre-countersunk holes
- Plated in Trivalent Chromium (Cr3) Zinc
- 60° self-tapping thread for ease of insertion
- Manufactured to BS 4174:1973
Documents
Technical Specifications
Product Specifications
| Gauge | 10 |
| Finish | Zinc & Clear Cr3 |
| Head Type | Countersunk |
| Material | Carbon Steel |
| Point Type | AB Point |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Driver Bit Size | PZ2 |
| Substrates | Steel, Thin Sheet Metal |
Product Specification
| Length inch | 1 1/4 |
| Length mm | 32 |
| Diameter mm | 4.8 |
| Size mm | 4.8 x 32 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 96 x 92 x 64 |
| Pack Weight kg | 0.7 |
| Carton Qty Packs | 35 |
| Pallet Qty Packs | 840 |
| Product Code | 10114CCAZS |
| SKU Barcode | 5055893308653 |
| Size imp | 10 x 1 1/4 |
| Thread Dia mm | 4.8 |
Attribute Group 1
| Brand | TIMCO |

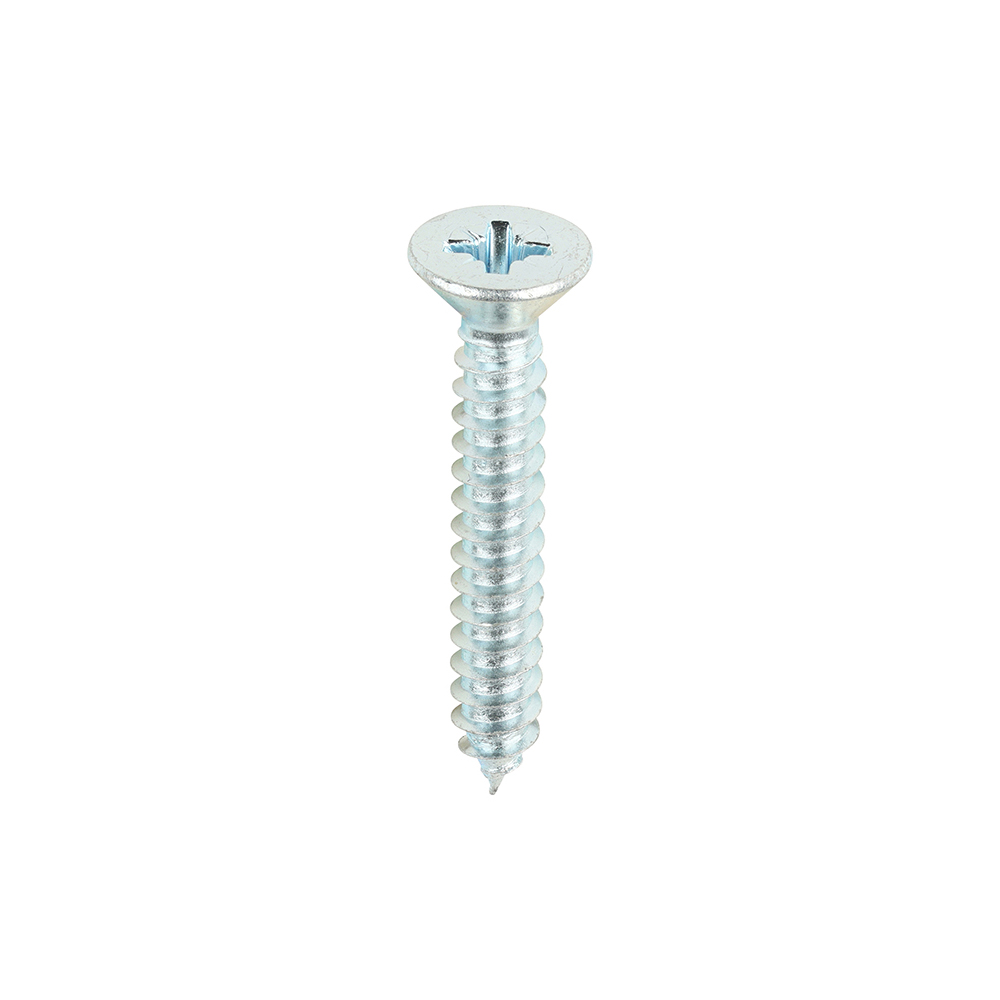

Metal Tapping Screws - PZ - Countersunk - Self-Tapping - Zinc
10 x 1 1/4
- Product Code: 10114CCAZS
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055893308653
