Product Information
Used for stitching metal or attaching to metal. A pre-drilled hole is required. Manufactured from A2 Stainless Steel for use where ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics.
- Countersunk head gives a discreet finish into pre-countersunk holes
- Stainless Steel suitable for outdoor applications
- 60° self-tapping thread for ease of insertion
Documents
Technical Specifications
Product Specifications
| Gauge | 10 |
| Head Type | Countersunk |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | AB Point |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Driver Bit Size | PZ2 |
| Substrates | Steel, Thin Sheet Metal |
Product Specification
| Length inch | 3/4 |
| Length mm | 19 |
| Diameter mm | 4.8 |
| Size mm | 4.8 x 19 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 92 x 72 x 58 |
| Pack Weight kg | 0.458 |
| Carton Qty Packs | 50 |
| Pallet Qty Packs | 1200 |
| DIN Standard | DIN 7982 |
| Product Code | 4819CCASS |
| SKU Barcode | 5055893372531 |
| Size imp | 10 x 3/4 |
| Thread Dia mm | 4.8 |
Attribute Group 1
| Brand | TIMCO |

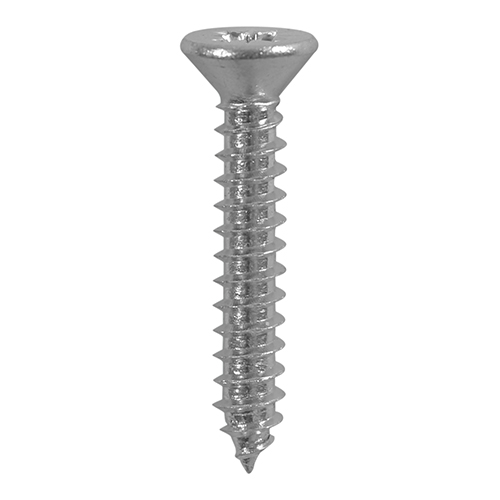

Metal Tapping Screws - PZ - Countersunk - Self-Tapping - A2 Stainless Steel
4.8 x 19
- Product Code: 4819CCASS
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055893372531
