Product Information
Used for stitching metal or attaching to metal. A pre-drilled hole is required.
- 3 different head types; pan, countersunk and flange head
- 60° self-tapping thread for ease of insertion
- AB point
- Plated in Trivalent Chromium (Cr3) Zinc
- Manufactured to BS 4174:1972
Documents
Technical Specifications
Product Specifications
| Gauge | Assorted |
| Finish | Zinc & Clear Cr3 |
| Head Type | Countersunk, Pan, Flange |
| Material | Carbon Steel |
| Point Type | AB Point |
| Recess Type | Pozi |
| Thread Type | 60° Self-Tapping |
| Driver Bit Size | PZ2 |
| Substrates | Steel, Thin Sheet Metal |
| Approval | BS 4174:1972 |
| Contents | 6 x 1/4" Pan (Qty 50), 6 x 1/2" Pan (Qty 165), 6 x 3/4" Countersunk (Qty 140), 8 x 1/2" Pan (Qty 180), 8 x 1/2" Flange (Qty 100), 8 x 3/4" Pan (Qty 115), 8 x 3/4" Countersunk (Qty 140), 8 x 1" Pan (Qty 80), 8 x 1" Countersunk (Qty 100), 8 x 1 1/2" Countersunk (Qty 45), 10 x 1/2" Pan (Qty 120), 10 x 5/8" Pan (Qty 70) |
Product Specification
| Length inch | Assorted |
| Length mm | Assorted |
| Diameter mm | Assorted |
| Size mm | Assorted |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 42 x 298 x 168 |
| Pack Weight kg | 2.49 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 108 |
| Product Code | STSTRAY |
| SKU Barcode | 5055331818225 |
| Size imp | Assorted |
| Thread Dia mm | Assorted |
Attribute Group 1
| Brand | TIMCO |

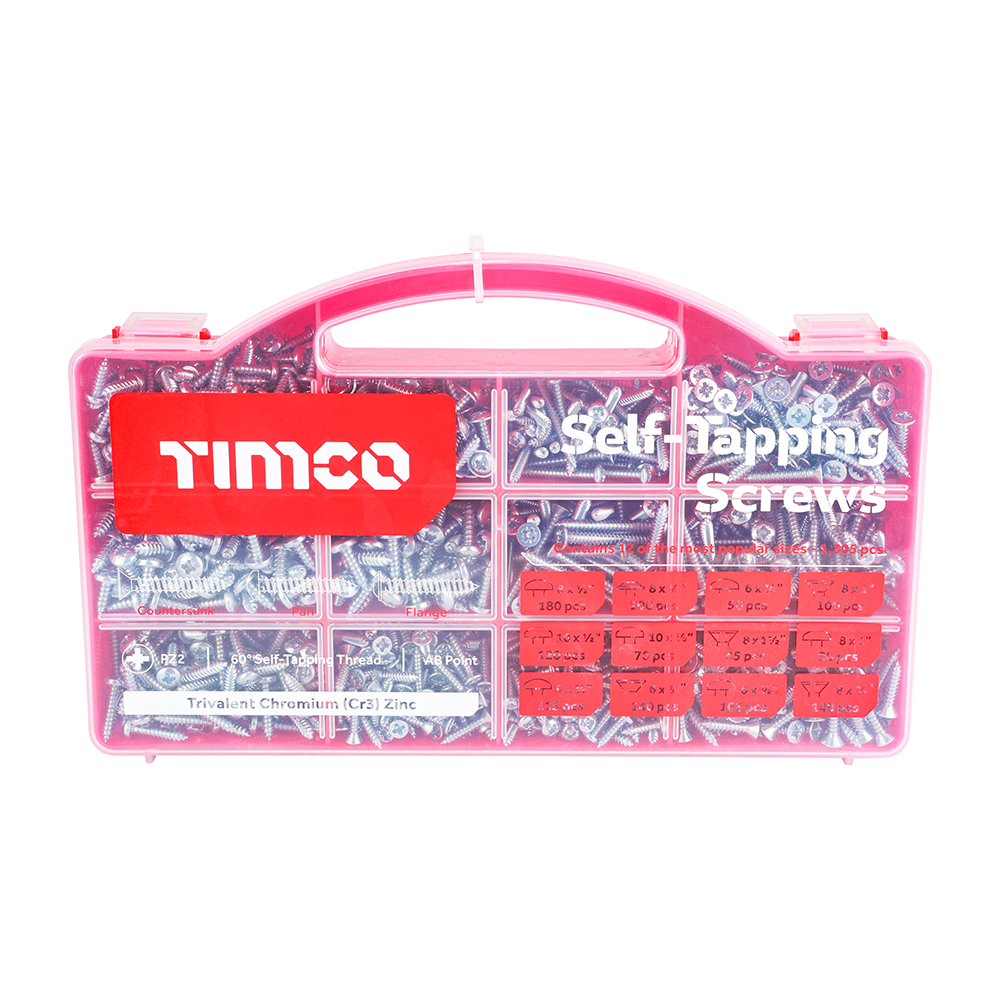

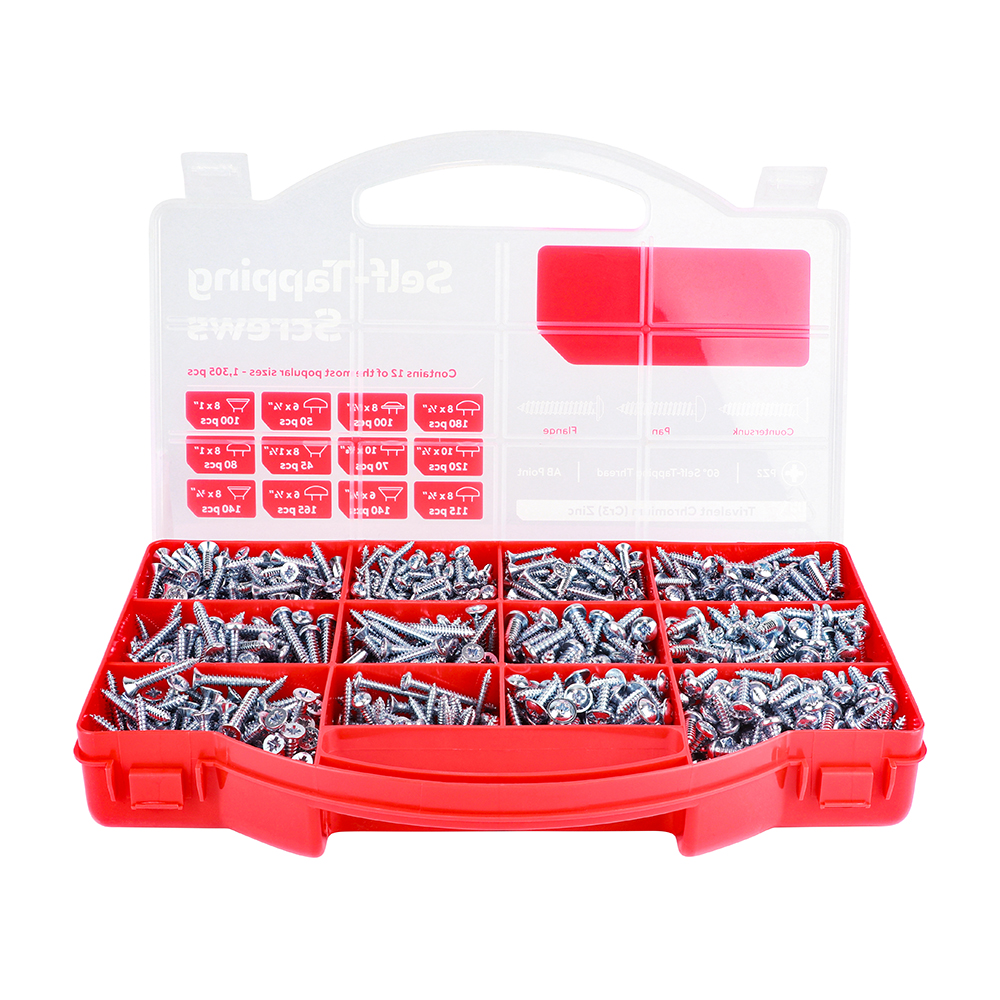

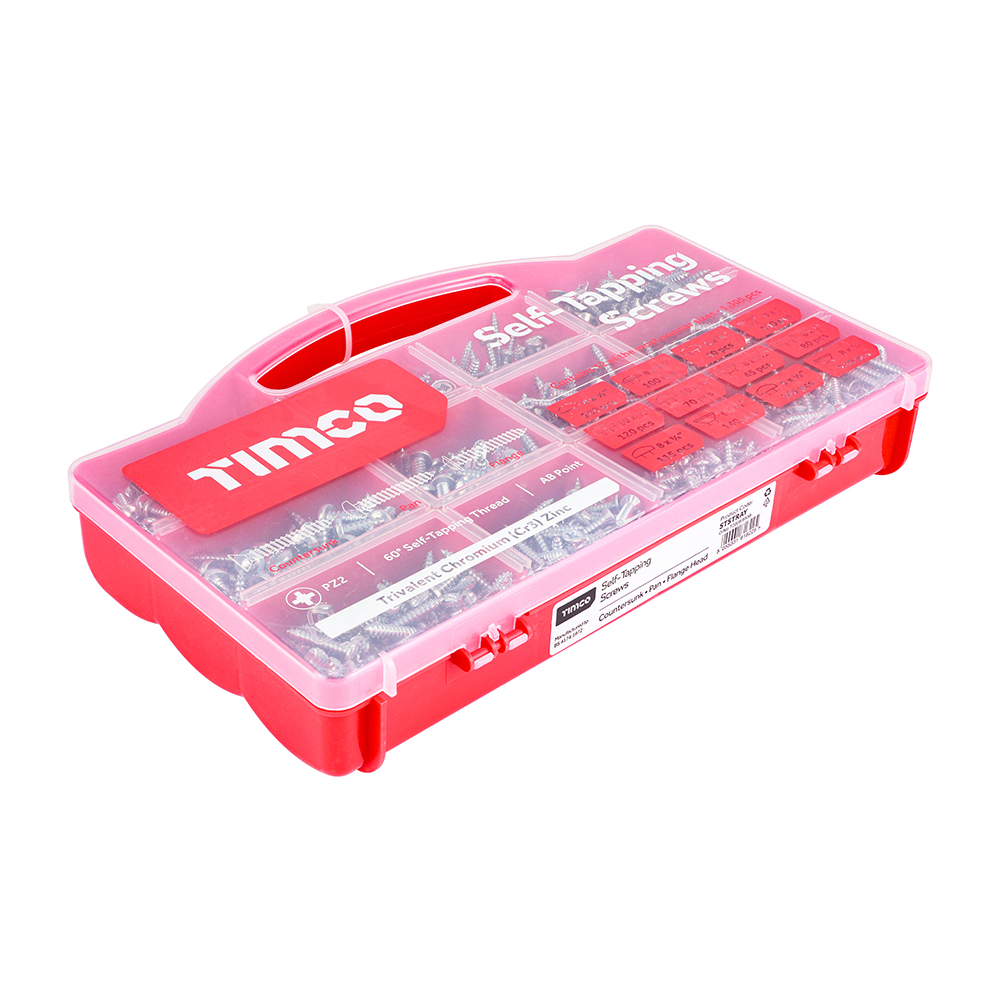

Metal Tapping Screws - Mixed Tray - PZ - Self-Tapping - Zinc
1,305pcs
- Product Code: STSTRAY
- Pack Type: Tray
- Pack Quantity: 1305
- Barcode: 5055331818225
