Product Information
Designed to anchor insulation material to concrete and masonry substrate materials.
TO REDUCE RISK OF THERMAL TRANSMISSION USE TIMCO PLASTIC COVER CAPS
- All metal through fixing
- Large diameter head
- Minimum embedment depth marker
Documents
Technical Specifications
Product Specification
| Length mm | 60 |
| Diameter mm | 8 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Fixture Thickness mm | 10 |
| Min Drill Hole Depth mm | 60 |
| Min Embedment Depth mm | 50 |
| Pack Dimensions L x W x H mm | 309 x 223 x 111 |
| Pack Weight kg | 1.18 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 240 |
| Product Code | MIF60 |
| SKU Barcode | 5055331844842 |
| Size Dia x L mm | 8.0 x 60 |
| Head Dia mm | 35 |
| Drill Hole Dia mm | 8 |
Product Specifications
| Material | Pre Galvanised |
| Substrates | Concrete, Brick, Block |
Attribute Group 1
| Brand | TIMCO |

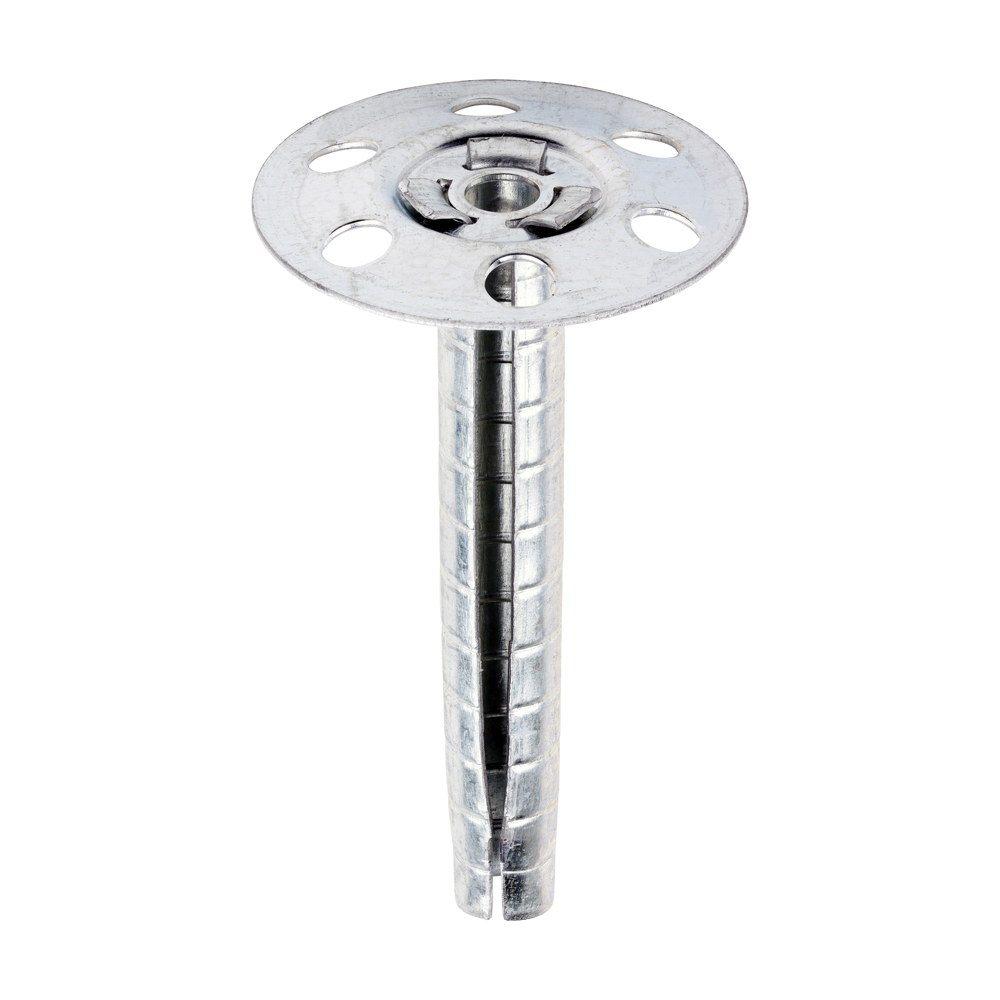

Metal Insulation Fixings - Galvanised
8.0 x 60
- Product Code: MIF60
- Pack Type: Bag
- Pack Quantity: 100
- Barcode: 5055331844842
