Product Information

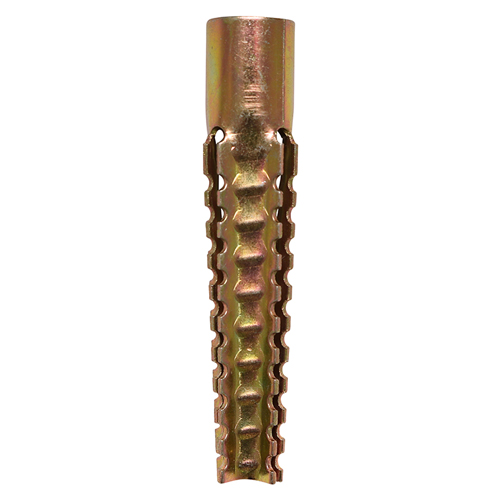

An all steel fixing for light weight aggregate blocks. Ideal for fixing in areas such as fire escape routes where regulations restrict the use of plastic anchors or plugs.
- External teeth expand and grip into the material, giving high load bearing strength
- Designed specifically for use with wood and chipboard screws, the internal ribs interlock with the screw's thread to provide a secure fixing
- Increased installation safety
- Wide range of applications
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Documents
Technical Specifications
Product Specification
| Length mm | 32 |
| Diameter mm | 6 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| To Fit Screw Dia mm | 4.5 - 5.0 |
| Pack Dimensions L x W x H mm | 102 x 90 x 60 |
| Pack Weight kg | 0.246 |
| Carton Qty Packs | 18 |
| Pallet Qty Packs | 864 |
| Product Code | 632MEP |
| SKU Barcode | 5055893364239 |
| Size Dia x L mm | 6.0 x 32 |
| To Fit Screw Gauge imp | 8 - 10 |
Product Specifications
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Substrates | Block |
| Approval | BS 7671:2018 |
Attribute Group 1
| Brand | TIMCO |
Metal Expansion Plugs - Yellow
6.0 x 32
- Product Code: 632MEP
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055893364239
