Product Information
Specifically designed to attach wood to light section steel (Max. 5mm). Coarse self-tapping thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal. NOTE: Partially threaded.
- Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 13 |
| Effective Thread Length mm | 47 *P/T |
| Head Height mm | 3 |
| Length mm | 85 |
| Diameter mm | 5.5 |
| Size mm | 5.5 x 85 |
| Wing Tip Width mm | 7 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 4 |
| Type | For Timber to Light Section Steel |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Drilling Thickness mm | 5 |
| Max Fixture Thickness mm | 64 |
| Rec RPM | 1,000 - 1,800 |
| To Suit Timber mm | 44 - 63 |
| Pack Dimensions L x W x H mm | 135 x 90 x 90 |
| Pack Weight kg | 1.14 |
| Carton Qty Packs | 16 |
| Pallet Qty Packs | 384 |
| Product Code | BMLW85 |
| SKU Barcode | 5055893352205 |
| Thread Dia mm | 5.5 |
| Head Dia mm | 10.5 |
Product Specifications
| Finish | Exterior (Silver Organic) |
| Head Type | Countersunk with Ribs |
| Material | Bi-Metal/A2-304 Stainless Steel/Carbon Steel |
| Point Type | Self-Drilling No.3 |
| Recess Type | Phillips |
| Thread Coverage | Partially Threaded |
| Thread Type | Coarse Self-Tapping, *P/T = Partially Threaded |
| Driver Bit Size | PH3 |
| Substrates | Steel, Timber |
Attribute Group 1
| Brand | TIMCO |

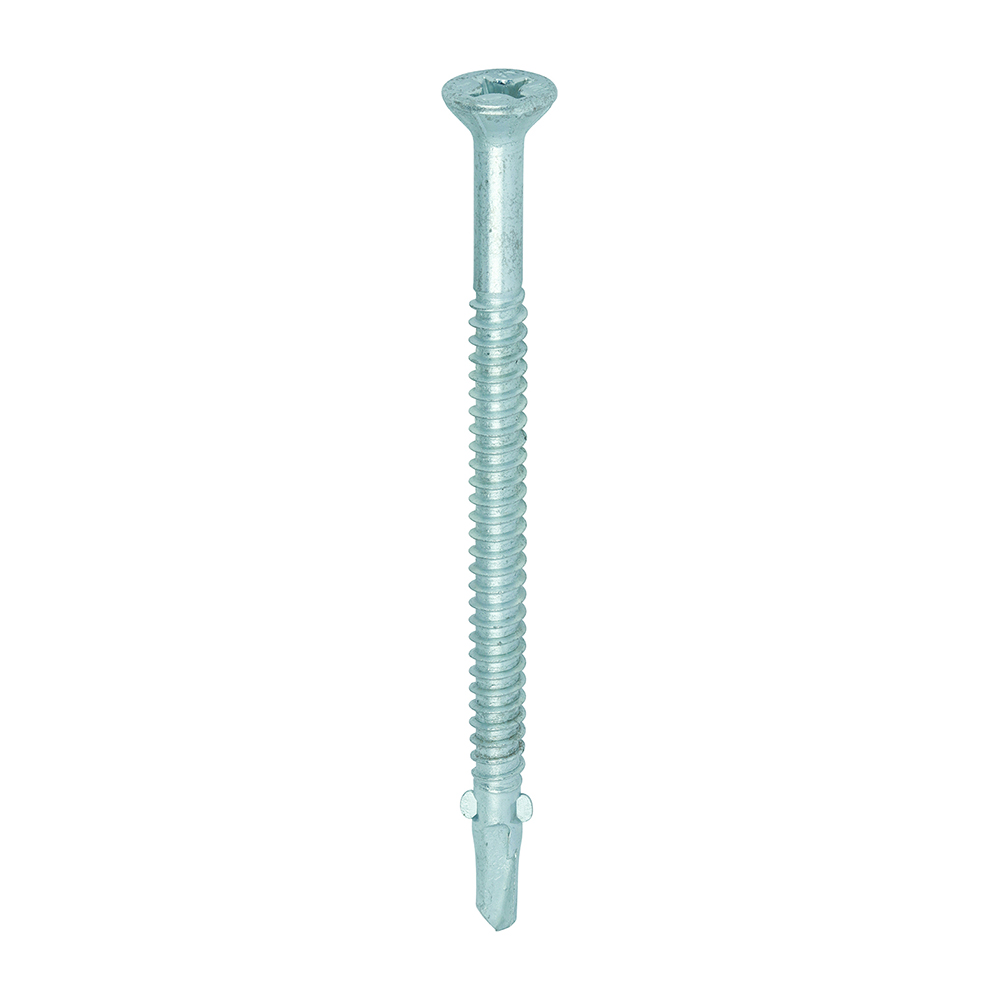

Metal Construction Timber to Light Section Screws - Countersunk - Wing-Tip - Self-Drilling - Bi-Metal - Exterior - Silver Organic
5.5 x 85
- Product Code: BMLW85
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055893352205
