Product Information

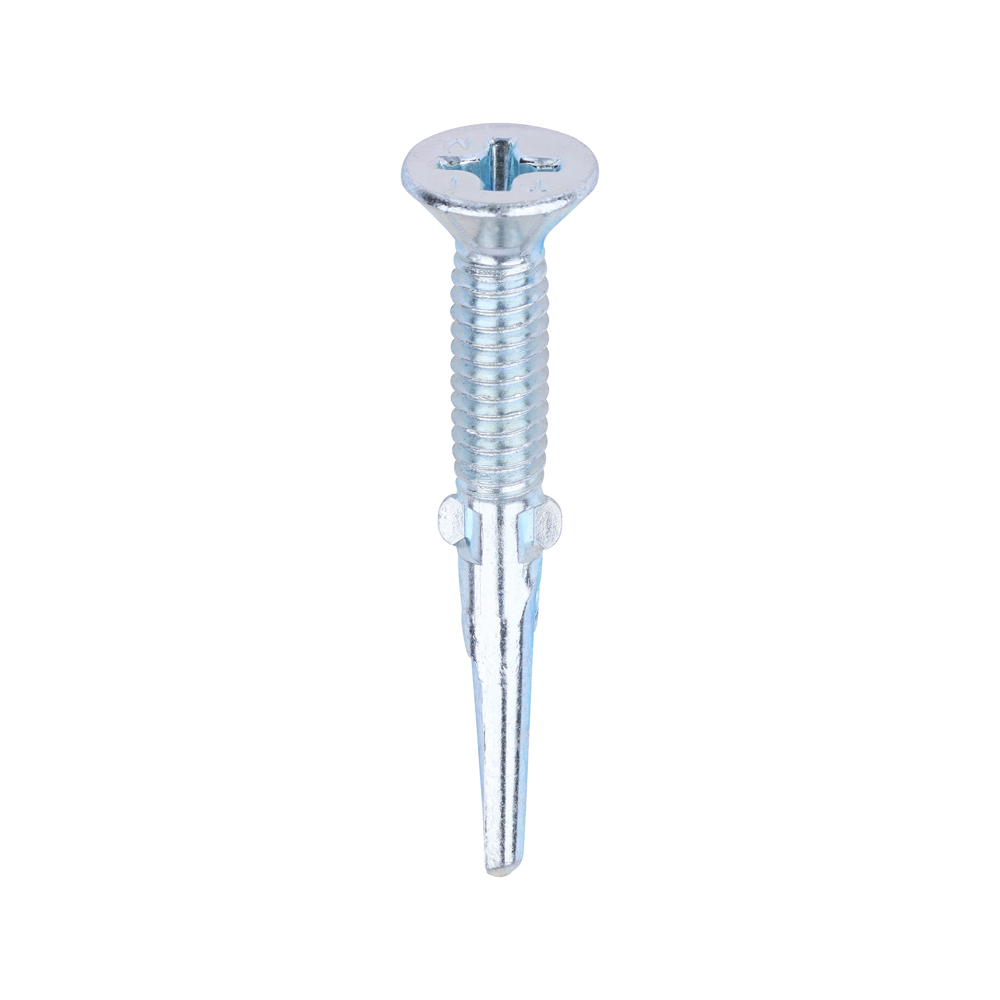

Specifically designed to attach wood to heavy section steel (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal.
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 21 |
| Effective Thread Length mm | 15 |
| Head Height mm | 5 |
| Length mm | 45 |
| Diameter mm | 5.5 |
| Size mm | 5.5 x 45 |
| Wing Tip Width mm | 7 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 5 |
| Finish | Zinc |
| Head Type | Countersunk with Ribs |
| Material | Case & Core Hardened Carbon Steel |
| Point Type | Self-Drilling No.4 |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Type | For Timber to Heavy Section Steel |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Driver Bit Size | PH3 |
| Included Items | PH3 S2 Bit (Qty 1) |
| Max Drilling Thickness mm | 12 |
| Rec RPM | 1,000 - 1,800 |
| Steel and Fixture Thickness mm | 19 |
| Substrates | Steel, Timber |
| Pack Dimensions L x W x H mm | 138 x 92 x 62 |
| Pack Weight kg | 1.24 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| Approval | BS EN 10666 (DIN 7504) |
| Product Code | HW45B |
| SKU Barcode | 5055017587087 |
| Thread Dia mm | 5.5 |
| Head Dia mm | 11 |
Attribute Group 1
| Brand | TIMCO |

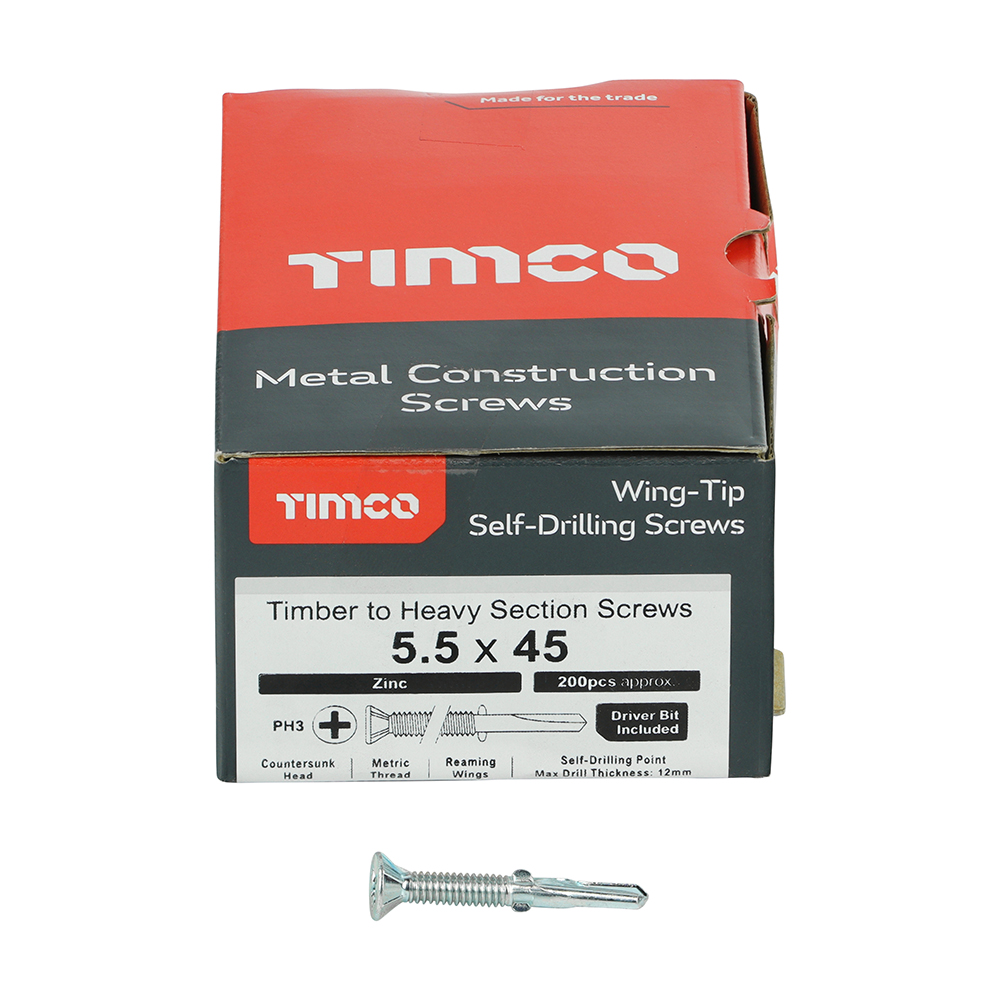

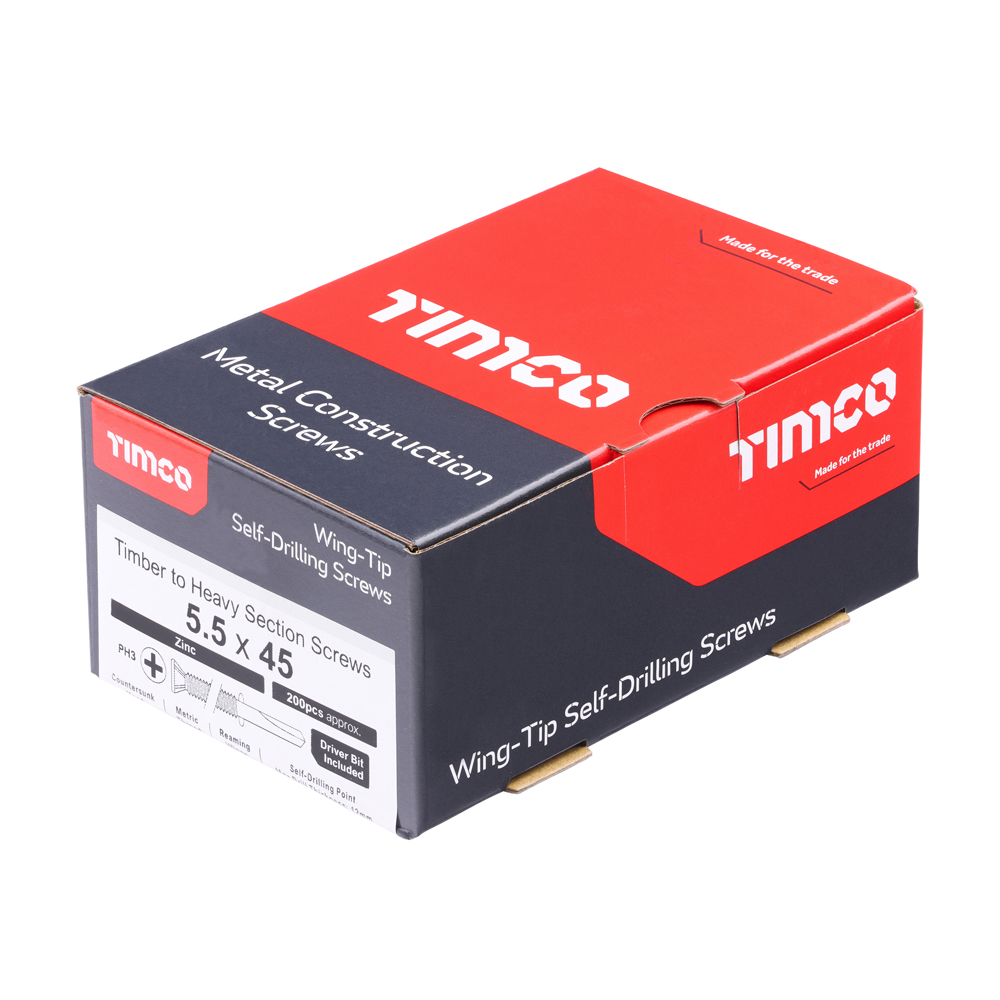

Metal Construction Timber to Heavy Section Screws - Countersunk - Wing-Tip - Self-Drilling - Zinc
5.5 x 45
- Product Code: HW45B
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055017587087
