Product Information
Designed to attach sheet metal (max 0.8mm) to timber. Once installed the EPDM washer prevents water ingress. Exterior plating gives a reliable and durable corrosion resistant coating which resists over 1,000 hours salt-spray.
- Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
- Single slash point to reduce torque and the risk of timber splitting at low edge distance
Documents
Technical Specifications
Product Specification
| Effective Thread Length mm | 29 |
| EPDM Washer mm | 16 |
| Head Height mm | 5.7 |
| Length mm | 32 |
| Diameter mm | 6.3 |
| Size mm | 6.3 x 32 |
| Socket Size mm | 8 |
| Type | For Timber |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Max Fixture Thickness mm | 0.9 |
| Rec RPM | 1,000 - 1,800 |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Pack Weight kg | 0.98 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 600 |
| Product Code | DS32W16BB |
| SKU Barcode | 5055893307489 |
| Thread Dia mm | 6.3 |
| Fixed Washer Dia mm | 12 |
Product Specifications
| Colour | Silver |
| Finish | Exterior (Silver Organic) |
| Head Type | Hex |
| Material | Case & Core Hardened Carbon Steel |
| Point Type | Single Slash |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Single Deep |
| Included Items | 16mm EPDM Washers |
| Substrates | Steel, Timber |
Attribute Group 1
| Brand | TIMCO |

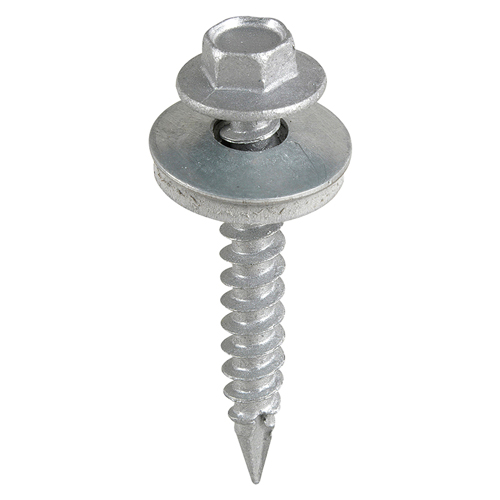

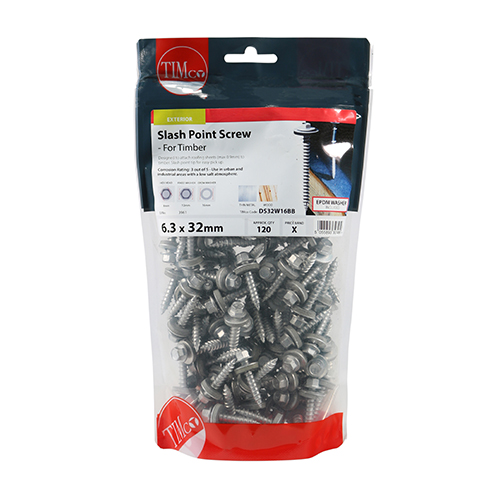

Metal Construction Thin Sheet Metal to Timber Screws - Hex - EPDM Washer - Slash Point - Exterior - Silver Organic
6.3 x 32
- Product Code: DS32W16BB
- Pack Type: TIMbag
- Pack Quantity: 120
- Barcode: 5055893307489
