Product Information

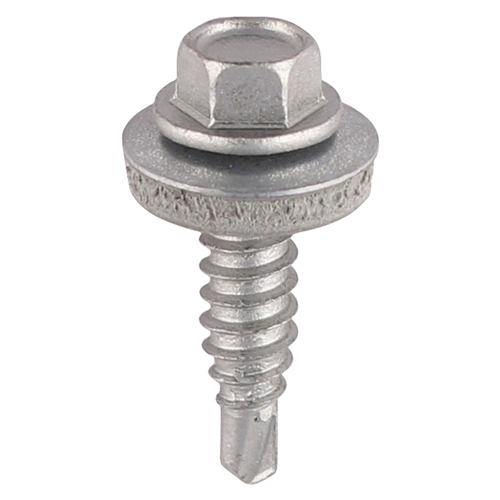

Used for stitching two metal roofing sheets together without the need to pre-drill a hole (Max. 1.6mm). Self-drilling point and tapered shank, with a washered hexagon head.
- Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 5.5 |
| Effective Thread Length mm | 12 |
| EPDM Washer mm | 16 |
| Head Height mm | 5.6 |
| Length mm | 25 |
| Diameter mm | 6.3 |
| Size mm | 6.3 x 25 |
| Socket Size mm | 8 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 3.9 |
| Type | For Sheet Steel |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Max Drilling Thickness mm | 1.6 |
| Rec RPM | 1,000 - 1,800 |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Pack Weight kg | 0.8 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 600 |
| Product Code | S25W16BB |
| SKU Barcode | 5055893307502 |
| Thread Dia mm | 6.3 |
| Fixed Washer Dia mm | 12 |
Product Specifications
| Colour | Silver |
| Finish | Exterior (Silver Organic) |
| Head Type | Hex |
| Material | Case & Core Hardened Carbon Steel |
| Point Type | Self-Drilling No.2 Reduced |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Tapered Self-Tapping |
| Included Items | 16mm EPDM Washers |
| Substrates | Thin Sheet Metal |
| Approval | BS EN 10666 (DIN 7504) |
Attribute Group 1
| Brand | TIMCO |

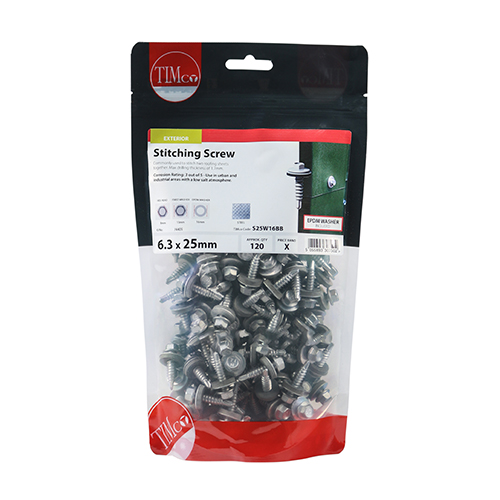

Metal Construction Stitching Screws - For Sheet to Sheet - Hex - EPDM Washer - Self-Drilling - Exterior - Silver Organic
6.3 x 25
- Product Code: S25W16BB
- Pack Type: TIMbag
- Pack Quantity: 120
- Barcode: 5055893307502
