Product Information

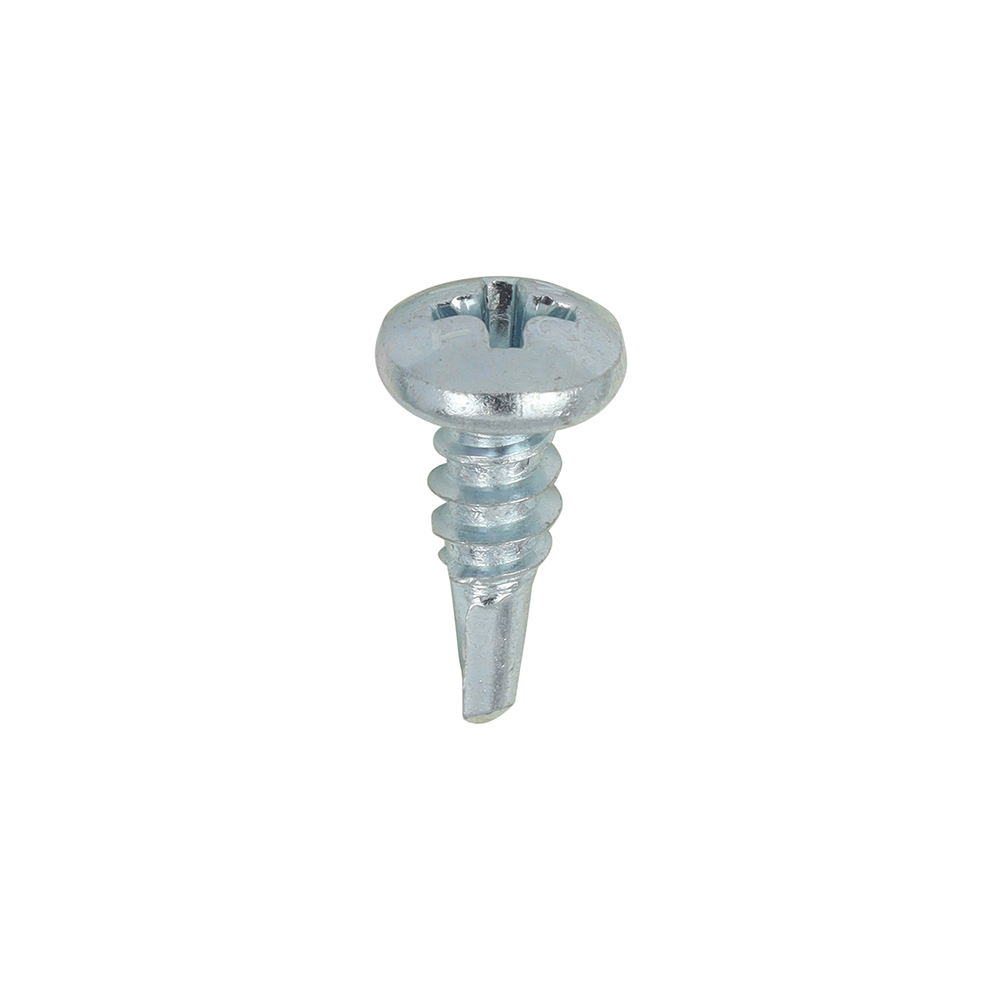

A light duty metal to metal screw with a phillips recess used for interior applications.
- Fire Classification - A1
Documents
Technical Specifications
Product Specifications
| Gauge | 8 |
| Finish | Zinc |
| Head Type | Pan |
| Material | Carbon Steel |
| Point Type | Self-Drilling |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Self-Tapping |
| Driver Bit Size | PH2 |
| Substrates | Steel |
Product Specification
| Length inch | 1/2 |
| Length mm | 13 |
| Diameter mm | 4.2 |
| Size mm | 4.2 x 13 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Drilling Thickness mm | 3 |
| Pack Dimensions L x W x H mm | 135 x 90 x 60 |
| Pack Weight kg | 1.407 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| CE Standard Web | BS EN 14566:2008, BS EN 10666:2008 |
| Product Code | 00812PPSD |
| SKU Barcode | 5055017520329 |
| Size imp | 8 x 1/2 |
| Thread Dia mm | 4.2 |
Attribute Group 1
| Brand | TIMCO |
Metal Construction Sheet & Stud Screws - PH - Pan - Self-Drilling - Zinc
8 x 1/2
- Product Code: 00812PPSD
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017520329
