Product Information
Used when constructing drywall track and ceiling track systems to stitch the track together (Max. 0.6mm) without the need to pre-drill a hole.
- Fire Classification - A1
Documents
Technical Specifications
Product Specification
| Effective Thread Length mm | 13 |
| Head Height mm | 2.2 |
| Length inch | 9/16 |
| Length mm | 13 |
| Diameter mm | 4.2 |
| Size mm | 4.2 x 13 |
| Thread Length mm | 13 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Drilling Thickness mm | 0.6 |
| Rec RPM | 1,800 - 2,500 |
| Pack Dimensions L x W x H mm | 135 x 90 x 60 |
| Pack Weight kg | 1.66 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 480 |
| CE Standard Web | BS EN 14566:2008 |
| Product Code | 08916WHSP |
| SKU Barcode | 5055017529964 |
| Size imp | 8 x 9/16 |
| Thread Dia mm | 4.2 |
Product Specifications
| Gauge | 8 |
| Finish | Zinc |
| Head Type | Wafer |
| Material | Carbon Steel |
| Point Type | Sharp |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Self-Tapping |
| Driver Bit Size | PH2 |
| Included Items | PH2 S2 Bit (Qty 1) |
| Substrates | Thin Sheet Metal, Drywall |
Attribute Group 1
| Brand | TIMCO |

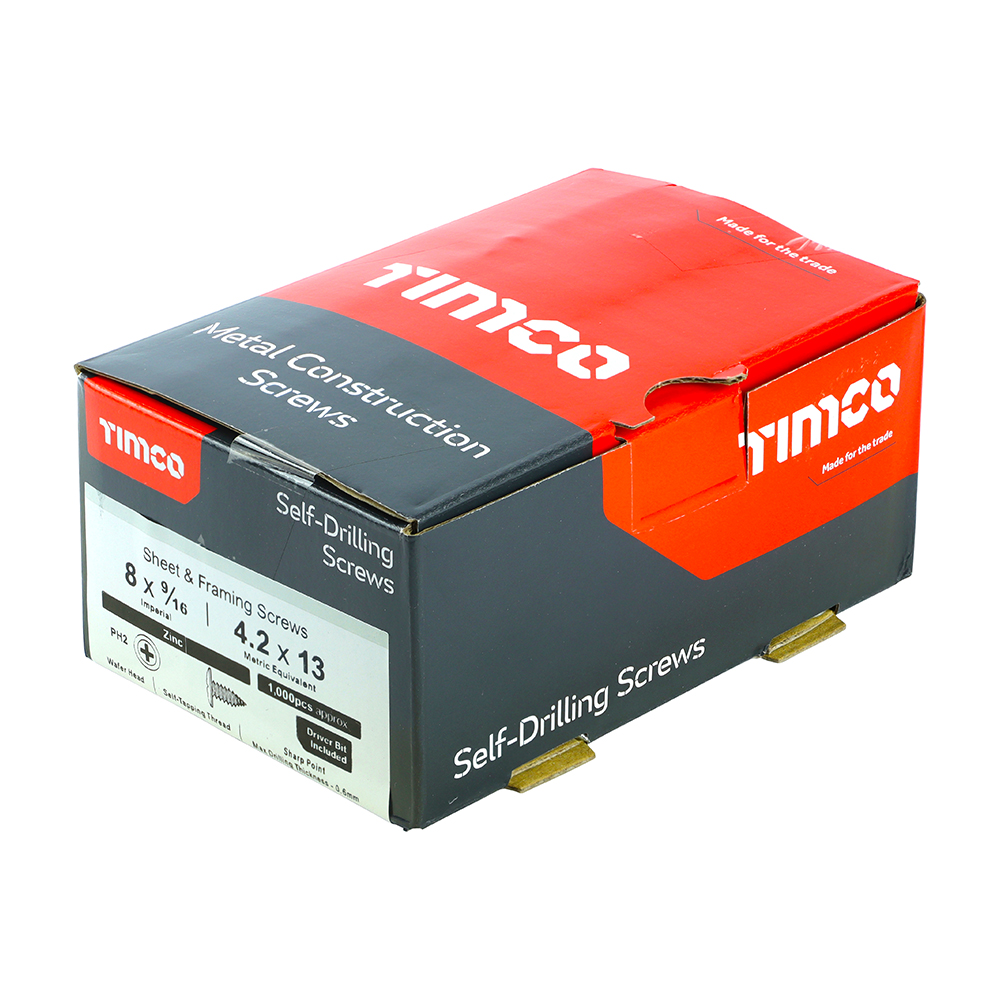

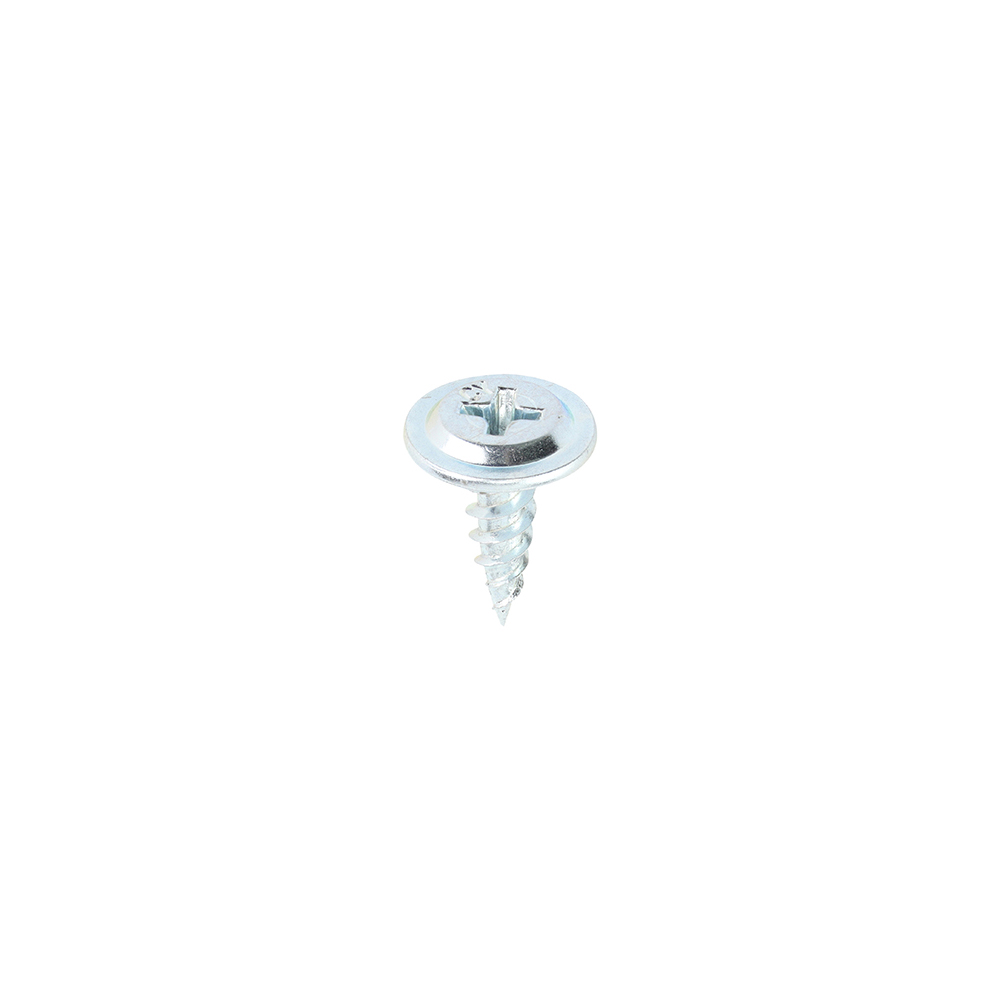

Metal Construction Sheet & Framing Screws - PH - Wafer - Sharp Point - Zinc
8 x 9/16
- Product Code: 08916WHSP
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017529964
