Product Information

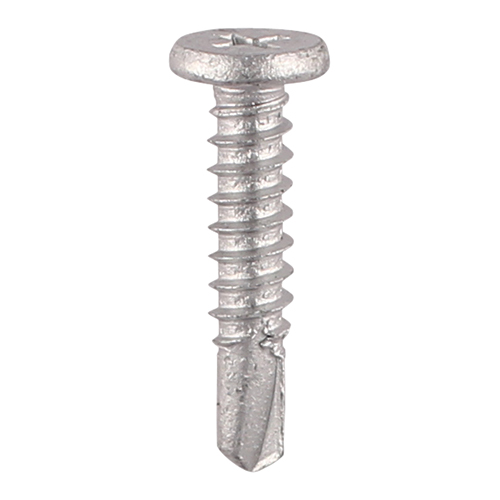

A medium duty metal to metal screw with a large flat surface under the head, making it ideal for fixing thinner sheet material when a flush finish is required. Silver organic plated to withstand over 500 hours salt spray test.
- Metsec Tested
- Large head diameter for increased clamping
- Coarse 60° self-tapping thread for extreme grip & excellent pull-out
- Phillips No.2 recess for a positive drive
- Fire Classification - A1
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 6 |
| Effective Thread Length mm | 9 |
| Head Height mm | 2 |
| Length inch | 3/4 |
| Length mm | 19 |
| Diameter mm | 5.5 |
| Size mm | 5.5 x 19 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 4.5 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Max Drilling Thickness mm | 5 |
| Rec RPM | 1,000 - 1,800 |
| Pack Dimensions L x W x H mm | 135 x 90 x 60 |
| Pack Weight kg | 1.409 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| CE Standard Web | BS EN 14566:2008, BS EN 10666:2008 |
| Product Code | FP19 |
| SKU Barcode | 5055017587124 |
| Size imp | 12 x 3/4 |
| Thread Dia mm | 5.5 |
| Head Dia mm | 10.3 |
Product Specifications
| Gauge | 12 |
| Colour | Silver |
| Finish | Exterior (Silver Organic) |
| Head Type | Low Profile Pancake |
| Material | Carbon Steel |
| Point Type | Self-Drilling |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Driver Bit Size | PH2 |
| Included Items | PH2 S2 Bit (Qty 1) |
| Substrates | Steel |
Attribute Group 1
| Brand | TIMCO |
Metal Construction Sheet & Framing Screws - PH - Low Profile Pancake - Exterior - Silver Organic
5.5 x 19
- Product Code: FP19

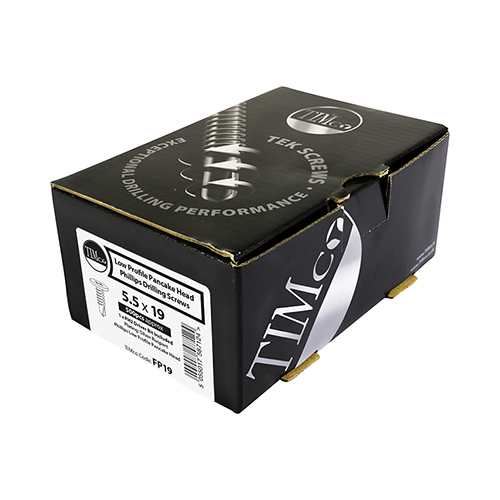

- Pack Type: Box
- Pack Quantity: 500
- Barcode: 5055017587124
