Product Information

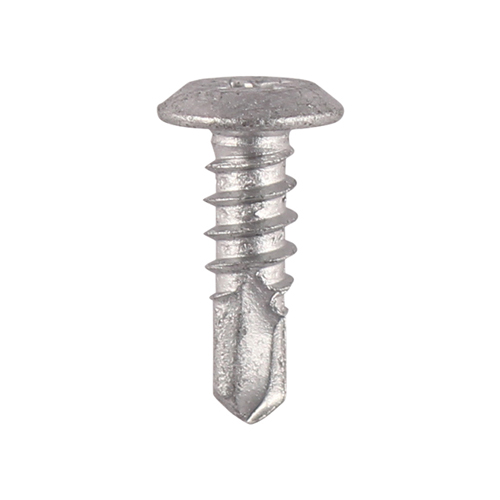

A light duty metal to metal screw with a reduced pan to give a flush finish. Silver organic plated to withstand over 500 hours salt spray test.
- Large head diameter for increased clamping
- Coarse 60° self-tapping thread for extreme grip & excellent pull-out
- Phillips No.2 recess for a positive drive
- Fire Classification - A1
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 5 |
| Effective Thread Length mm | 7 |
| Head Height mm | 1.85 |
| Length inch | 5/8 |
| Length mm | 16 |
| Diameter mm | 4.8 |
| Size mm | 4.8 x 16 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 3.9 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Max Drilling Thickness mm | 4 |
| Rec RPM | 1,800 - 2,500 |
| Pack Dimensions L x W x H mm | 95 x 90 x 60 |
| Pack Weight kg | 0.879 |
| Carton Qty Packs | 16 |
| Pallet Qty Packs | 768 |
| CE Standard Web | BS EN 14566:2008, BS EN 10666:2008 |
| Product Code | LPP16 |
| SKU Barcode | 5055017582976 |
| Size imp | 10 x 5/8 |
| Thread Dia mm | 4.8 |
| Head Dia mm | 9.45 |
Product Specifications
| Gauge | 10 |
| Colour | Silver |
| Finish | Exterior (Silver Organic) |
| Head Type | Low Profile Pan |
| Material | Carbon Steel |
| Point Type | Self-Drilling |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Driver Bit Size | PH2 |
| Included Items | PH2 S2 Bit (Qty 1) |
| Substrates | Steel |
Attribute Group 1
| Brand | TIMCO |

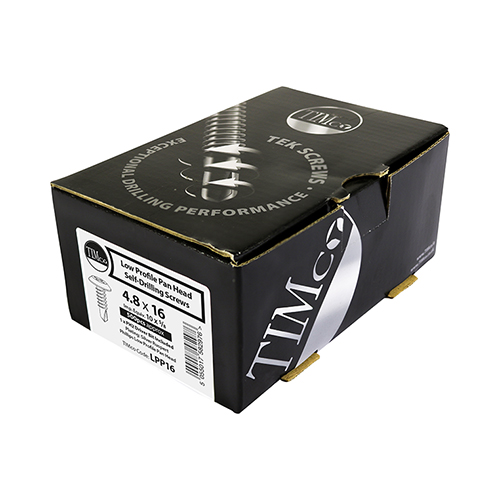

Metal Construction Sheet & Framing Screws - PH - Low Profile Pan - Exterior - Silver Organic
4.8 x 16
- Product Code: LPP16
- Pack Type: Box
- Pack Quantity: 500
- Barcode: 5055017582976
