Product Information

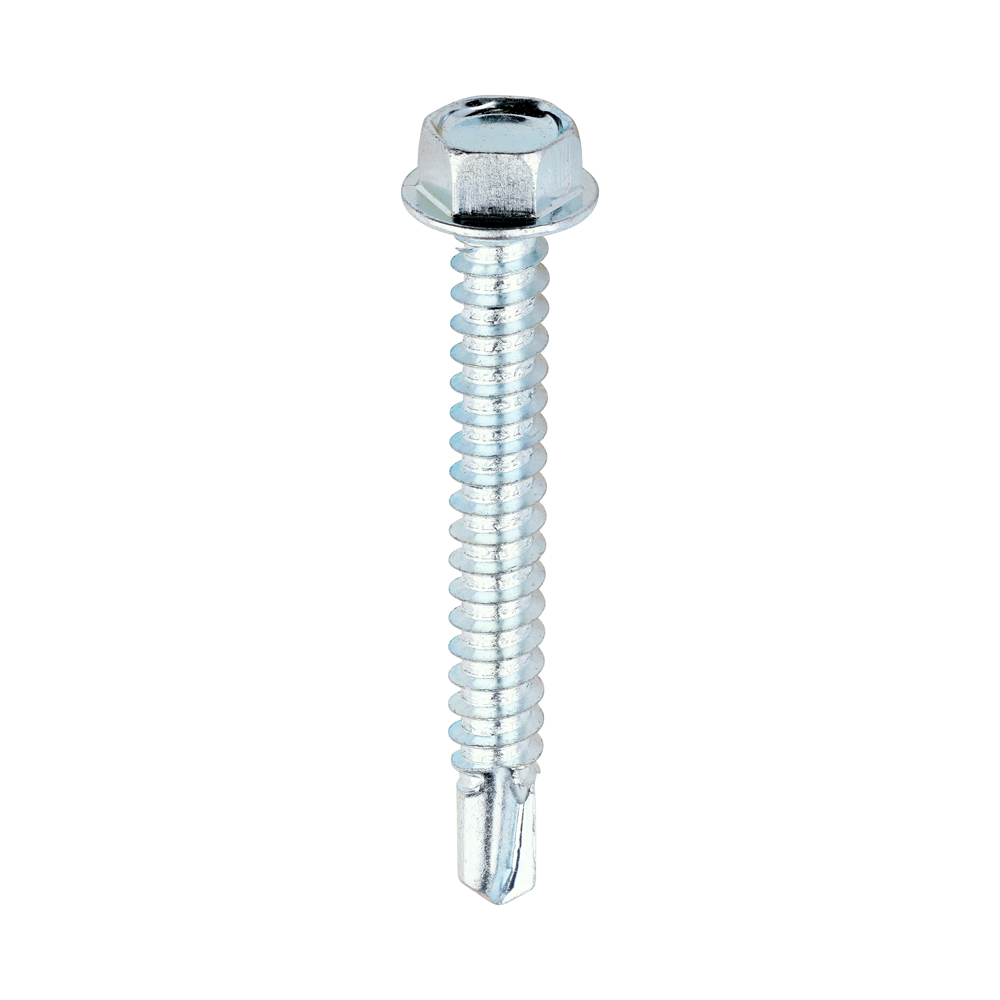

Hex head self-drilling screws, for joining roofing sheets to light section steel (Max. 5.0mm) without the need to pre-drill a hole.
- Fire Classification - A1
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 7.14 |
| Effective Thread Length mm | 34 |
| Head Height mm | 3.95 |
| Length inch | 1 3/4 |
| Length mm | 45 |
| Diameter mm | 5.5 |
| Size mm | 5.5 x 45 |
| Socket Size inch | 5/16 |
| Socket Size mm | 8 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 4.55 |
| Type | For Light Section Steel |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Drilling Thickness mm | 5 |
| Rec RPM | 1,000 - 1,800 |
| Pack Dimensions L x W x H mm | 192 x 134 x 88 |
| Pack Weight kg | 3.28 |
| Carton Qty Packs | 4 |
| Pallet Qty Packs | 96 |
| CE Standard Web | BS EN 14566:2008 |
| Product Code | 12134HWSD |
| SKU Barcode | 5055017521388 |
| Size imp | 12 x 1 3/4 |
| Thread Dia mm | 5.5 |
| Fixed Washer Dia mm | 11 |
Product Specifications
| Finish | Zinc |
| Head Type | Hex |
| Material | Case & Core Hardened Carbon Steel |
| Point Type | Self-Drilling |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Substrates | Steel |
| Approval | BS EN 10666 (DIN 7504) |
Attribute Group 1
| Brand | TIMCO |
Metal Construction Light Section Screws - Hex - Self-Drilling - Zinc
12 x 1 3/4
- Product Code: 12134HWSD
- Pack Type: Box
- Pack Quantity: 500
- Barcode: 5055017521388
