Product Information

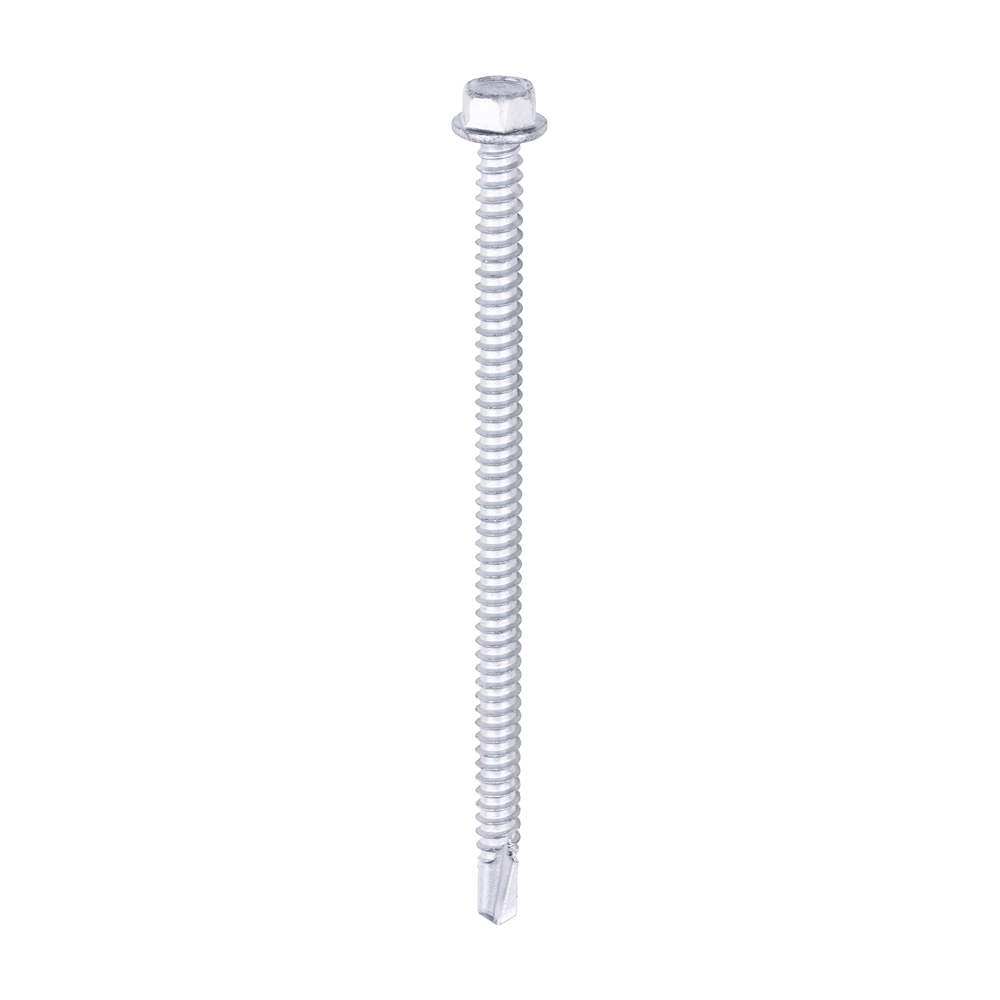

Hex head self-drilling screws, for joining roofing sheets to light section steel (Max. 5.0mm) without the need to pre-drill a hole.
- Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 8.5 |
| Effective Thread Length mm | 87 |
| Head Height mm | 5.3 |
| Length mm | 100 |
| Diameter mm | 5.5 |
| Size mm | 5.5 x 100 |
| Socket Size mm | 8 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 4.75 |
| Type | For Light Section Steel |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Drilling Thickness mm | 5 |
| Rec RPM | 1,000 - 1,800 |
| Pack Dimensions L x W x H mm | 138 x 94 x 92 |
| Pack Weight kg | 1.46 |
| Carton Qty Packs | 16 |
| Pallet Qty Packs | 384 |
| Product Code | BML100 |
| SKU Barcode | 5055893352106 |
| Thread Dia mm | 5.5 |
| Fixed Washer Dia mm | 11 |
Product Specifications
| Finish | Exterior (Silver Organic) |
| Head Type | Hex |
| Material | Bi-Metal/A2-304 Stainless Steel/Carbon Steel |
| Point Type | Self-Drilling No.3 |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Substrates | Steel |
Attribute Group 1
| Brand | TIMCO |

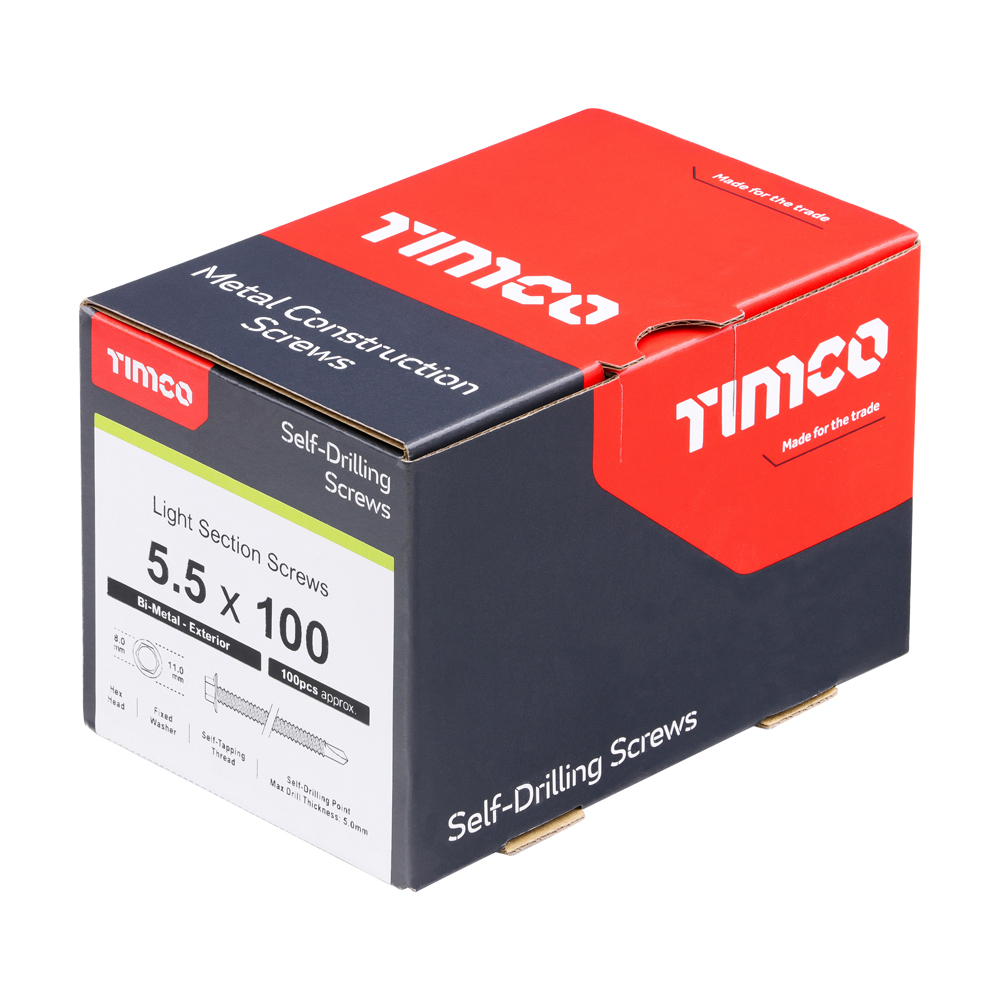

Metal Construction Light Section Screws - Hex - Self-Drilling - Bi-Metal - Exterior - Silver Organic
5.5 x 100
- Product Code: BML100
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055893352106
