Product Information
Hex head self-drilling screws, for joining roofing sheets to light section steel (Max. 5.0mm) without the need to pre-drill a hole.
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 7.9 |
| Effective Thread Length mm | 17 |
| EPDM Washer mm | 16 |
| Head Height mm | 4.5 |
| Length mm | 32 |
| Diameter mm | 5.5 |
| Size mm | 5.5 x 32 |
| Socket Size mm | 8 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 4.65 |
| Type | For Light Section Steel |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Drilling Thickness mm | 5 |
| Rec RPM | 1,000 - 1,800 |
| Max Clamping Thickness mm | 19 |
| Pack Dimensions L x W x H mm | 152 x 120 x 37 |
| Pack Weight kg | 0.652 |
| Carton Qty Packs | 26 |
| Pallet Qty Packs | 936 |
| Product Code | ZL32W16 |
| SKU Barcode | 5055893325797 |
| Thread Dia mm | 5.5 |
| Fixed Washer Dia mm | 11 |
Product Specifications
| Finish | Zinc |
| Head Type | Hex |
| Material | Case & Core Hardened Carbon Steel |
| Point Type | Self-Drilling No.3 |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Included Items | 16mm EPDM Washers |
| Substrates | Steel |
| Approval | BS EN 10666 (DIN 7504) |
Attribute Group 1
| Brand | TIMCO |

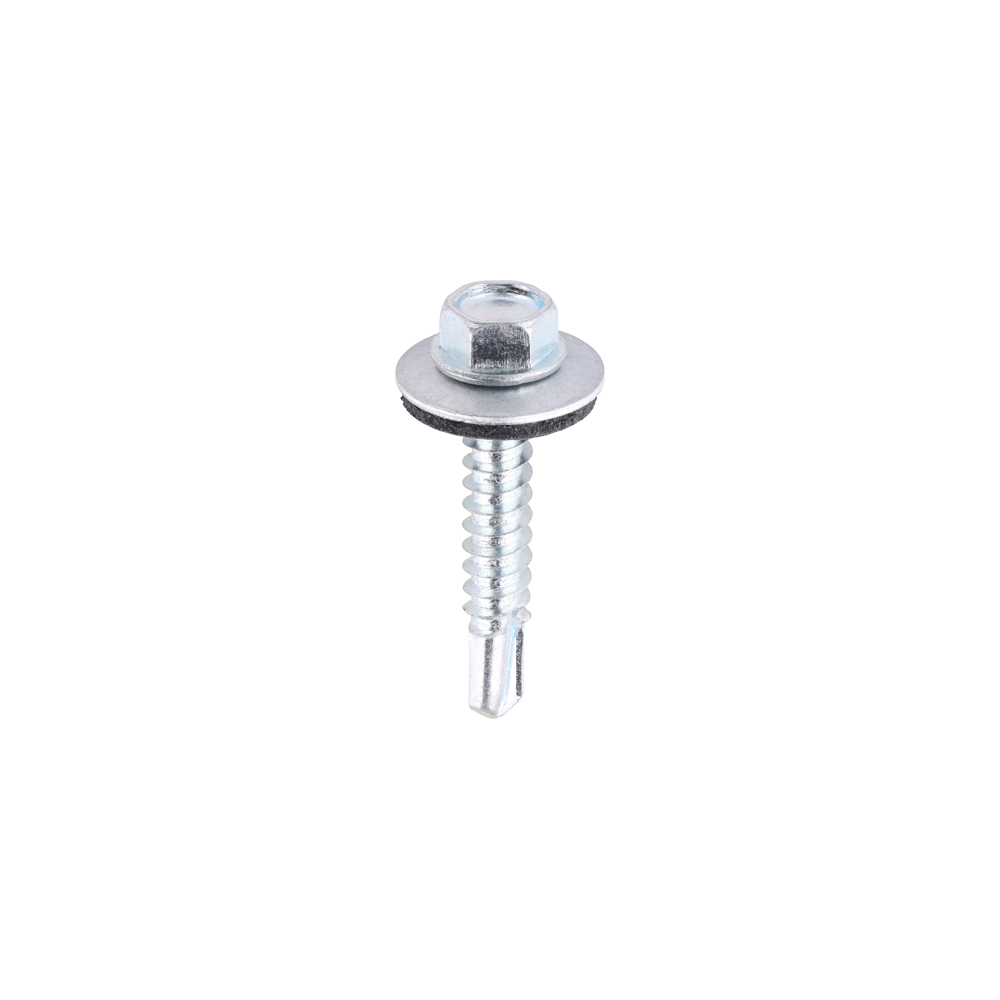

Metal Construction Light Section Screws - Hex - EPDM Washer - Self-Drilling - Zinc
5.5 x 32
- Product Code: ZL32W16

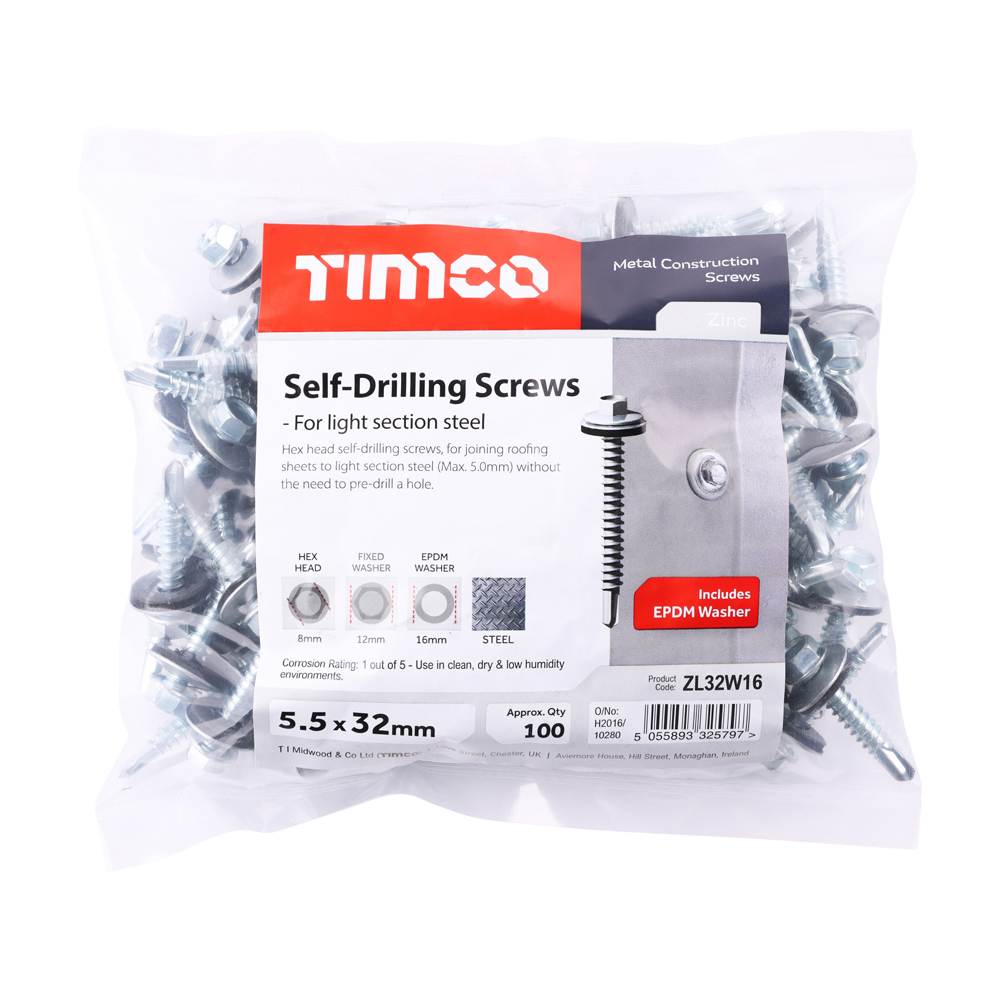

- Pack Type: Bag
- Pack Quantity: 100
- Barcode: 5055893325797
