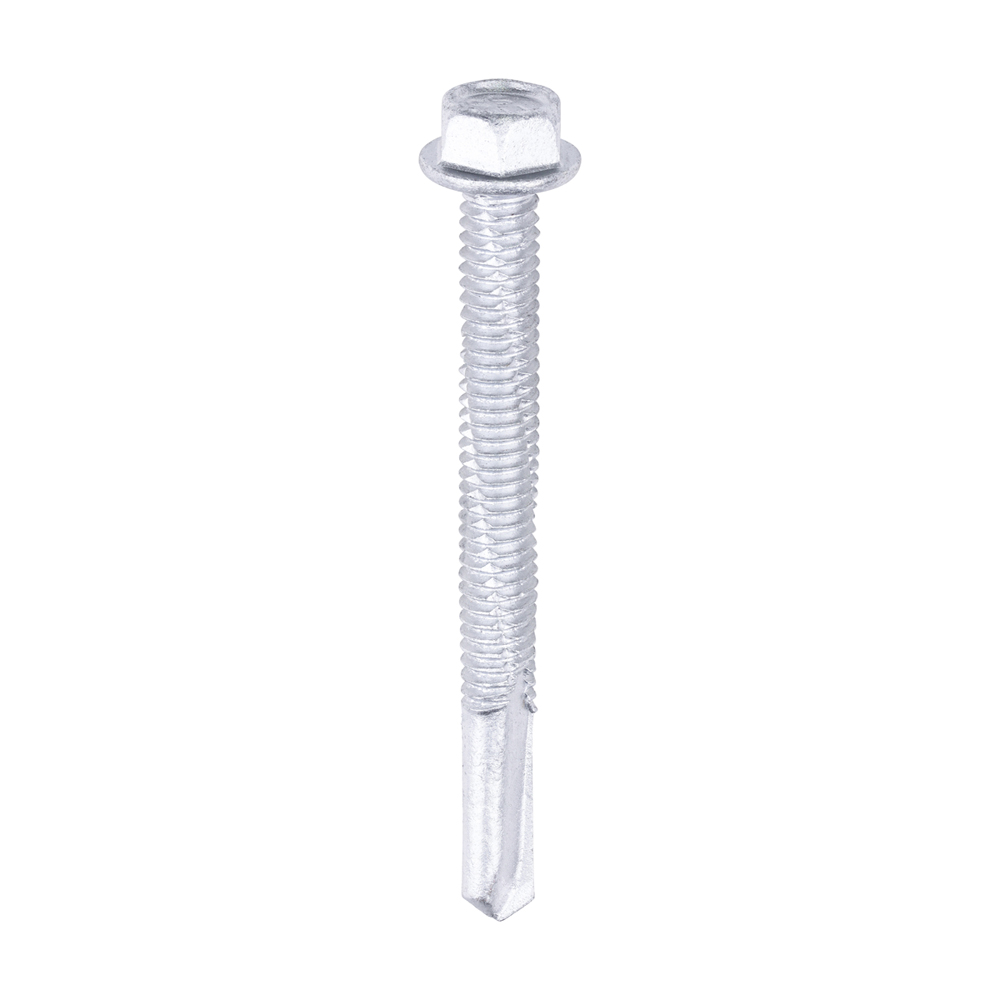

Product Image 1
Product Image 2
Product Information
Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole.
  • Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
Documents
Brochure Page
Technical Specifications
Product Specification
Drill Tip Length mm 17
Effective Thread Length mm 34
Head Height mm 5.3
Length mm 55
Size mm 5.5 x 55
Socket Size mm 8
Drill Tip Angle degree 110
Drill Tip Width mm 5.02
Finish Exterior (Silver Organic)
Head Type Hex
Material Bi-Metal/A2-304 Stainless Steel/Carbon Steel
Point Type Self-Drilling No.5
Thread Coverage Fully Threaded
Thread Type Metric with V Flutes
Type For Heavy Section Steel
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Max Drilling Thickness mm 12
Rec RPM 1,000 - 1,800
Substrates Steel
Pack Dimensions L x W x H mm 140 x 90 x 64
Pack Weight kg 0.9
Carton Qty Packs 15
Pallet Qty Packs 540
Product Code BMH55
SKU Barcode 5055893352151
Thread Dia mm M5.5
Fixed Washer Dia mm 11
Attribute Group 1
Brand TIMCO

Metal Construction Heavy Section Screws - Hex - Self-Drilling - Bi-Metal - Exterior - Silver Organic

5.5 x 55

  • Product Code: BMH55
  • Pack Type: Box
  • Pack Quantity: 100
  • Barcode: 5055893352151
