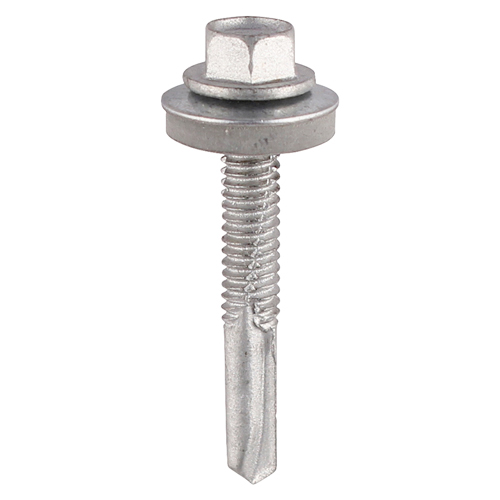

Product Image 1
Product Information
Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole. NOTE: Partially threaded.
  • Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
Documents
Brochure Page
Technical Specifications
Product Specification
Drill Tip Length mm 15
Effective Thread Length mm 16
EPDM Washer mm 16
Head Height mm 5.6
Length mm 38
Size mm 5.5 x 38
Socket Size mm 8
Drill Tip Angle degree 110
Drill Tip Width mm 5
Colour Silver
Finish Exterior (Silver Organic)
Head Type Hex
Material Case & Core Hardened Carbon Steel
Point Type Self-Drilling No.5
Thread Coverage Fully Threaded
Thread Type Metric with V Flutes & Torque Relieving Slash
Type For Heavy Section Steel
Corrosion Rating 3 - Urban & industrial areas with a low salt atmosphere
Included Items 16mm EPDM Washers
Max Drilling Thickness mm 12
Rec RPM 1,000 - 1,800
Substrates Steel
Pack Dimensions L x W x H mm 265 x 152 x 50
Pack Weight kg 0.78
Carton Qty Packs 5
Pallet Qty Packs 600
Approval BS EN 10666 (DIN 7504)
Product Code H38W16BB
SKU Barcode 5055893307809
Thread Dia mm M5.5
Fixed Washer Dia mm 12
Attribute Group 1
Brand TIMCO

Metal Construction Heavy Section Screws - Hex - EPDM Washer - Self-Drilling - Zinc

5.5 x 38

  • Product Code: H38W16BB
  • Pack Type: TIMbag
  • Pack Quantity: 100
  • Barcode: 5055893307809
