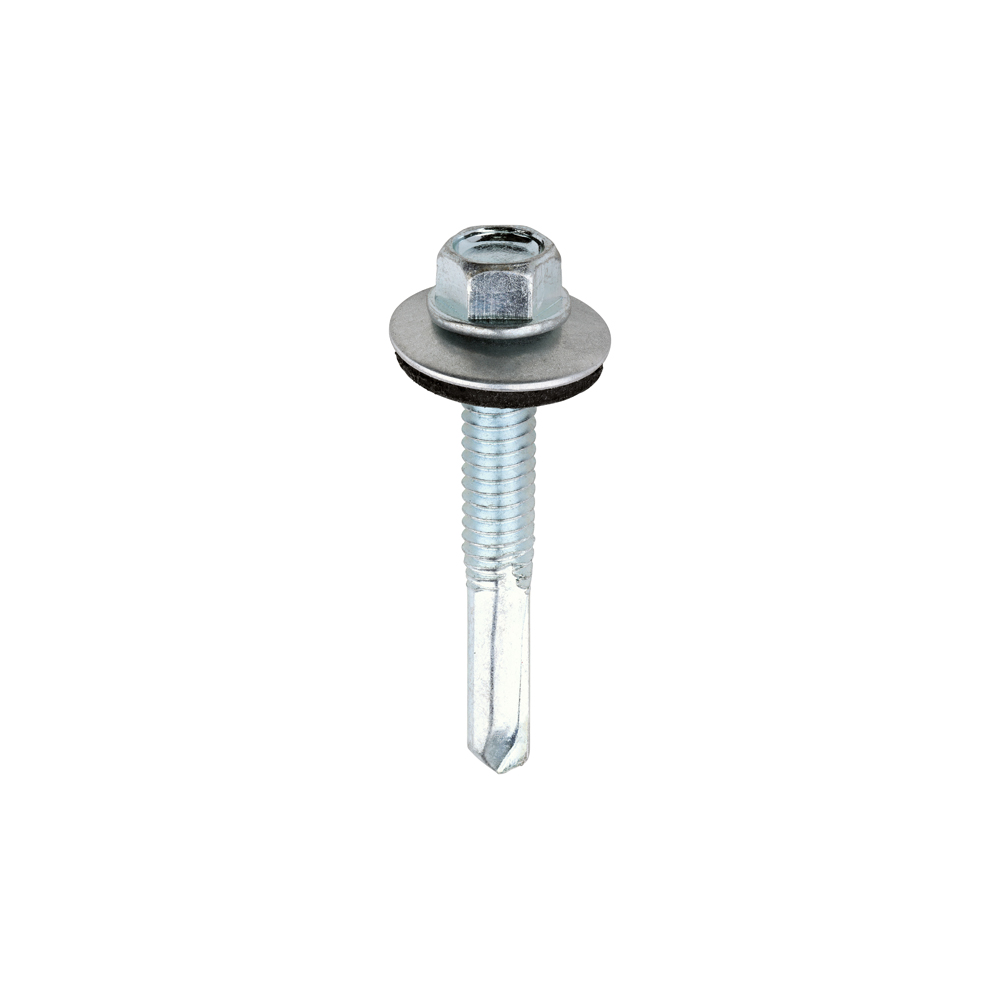

Product Image 1

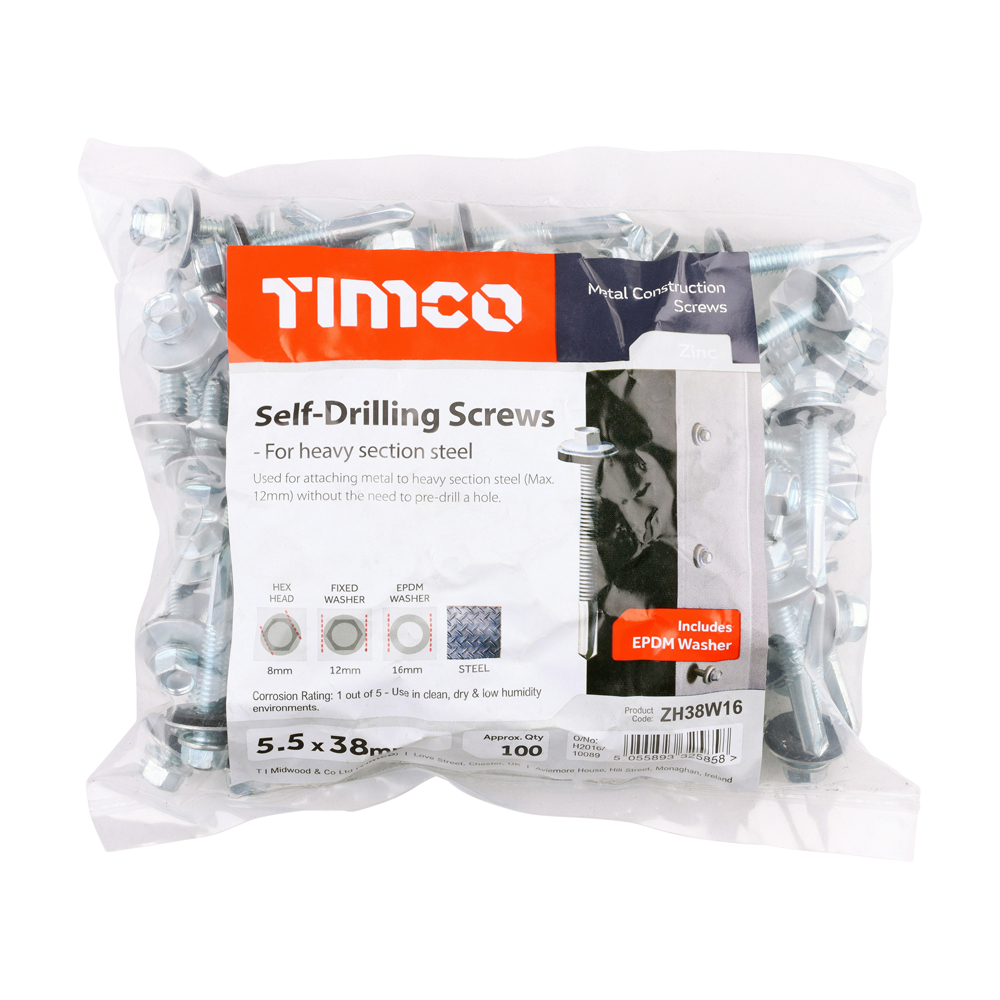

Product Image 2
Product Information
Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole.
Documents
Brochure Page
Technical Specifications
Product Specification
Drill Tip Length mm 15.5
Effective Thread Length mm 16
EPDM Washer mm 16
Head Height mm 5.3
Length mm 38
Diameter mm 5.5
Size mm 5.5 x 38
Socket Size mm 8
Drill Tip Angle degree 110
Drill Tip Width mm 5
Finish Zinc
Head Type Hex
Material Case & Core Hardened Carbon Steel
Point Type Self-Drilling No.5
Thread Coverage Fully Threaded
Thread Type Metric
Type For Heavy Section Steel
Corrosion Rating 1 - Clean, dry & low humidity environments
Included Items 16mm EPDM Washers
Max Drilling Thickness mm 12
Rec RPM 1,000 - 1,800
Substrates Steel
Max Clamping Thickness mm 15
Pack Dimensions L x W x H mm 151 x 128 x 42
Pack Weight kg 0.772
Carton Qty Packs 24
Pallet Qty Packs 864
Approval BS EN 10666 (DIN 7504)
Product Code ZH38W16
SKU Barcode 5055893325858
Thread Dia mm 5.5
Fixed Washer Dia mm 11
Attribute Group 1
Brand TIMCO

Metal Construction Heavy Section Screws - Hex - EPDM Washer - Self-Drilling - Zinc

5.5 x 38

  • Product Code: ZH38W16
  • Pack Type: Bag
  • Pack Quantity: 100
  • Barcode: 5055893325858
