Product Information
Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole. NOTE: Partially threaded.
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 15.5 |
| Effective Thread Length mm | 53 *P/T |
| EPDM Washer mm | 16 |
| Head Height mm | 5.3 |
| Length mm | 80 |
| Diameter mm | 5.5 |
| Size mm | 5.5 x 80 |
| Socket Size mm | 8 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 5 |
| Type | For Heavy Section Steel |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Drilling Thickness mm | 12 |
| Rec RPM | 1,000 - 1,800 |
| Max Clamping Thickness mm | 57 |
| Pack Dimensions L x W x H mm | 195 x 179 x 53 |
| Pack Weight kg | 1.352 |
| Carton Qty Packs | 12 |
| Pallet Qty Packs | 432 |
| Product Code | ZH80W16 |
| SKU Barcode | 5055893325872 |
| Thread Dia mm | 5.5 |
| Fixed Washer Dia mm | 11 |
Product Specifications
| Finish | Zinc |
| Head Type | Hex |
| Material | Case & Core Hardened Carbon Steel |
| Point Type | Self-Drilling No.5 |
| Thread Coverage | Partially Threaded |
| Thread Type | Metric, *P/T = Partially Threaded |
| Included Items | 16mm EPDM Washers |
| Substrates | Steel |
| Approval | BS EN 10666 (DIN 7504) |
Attribute Group 1
| Brand | TIMCO |

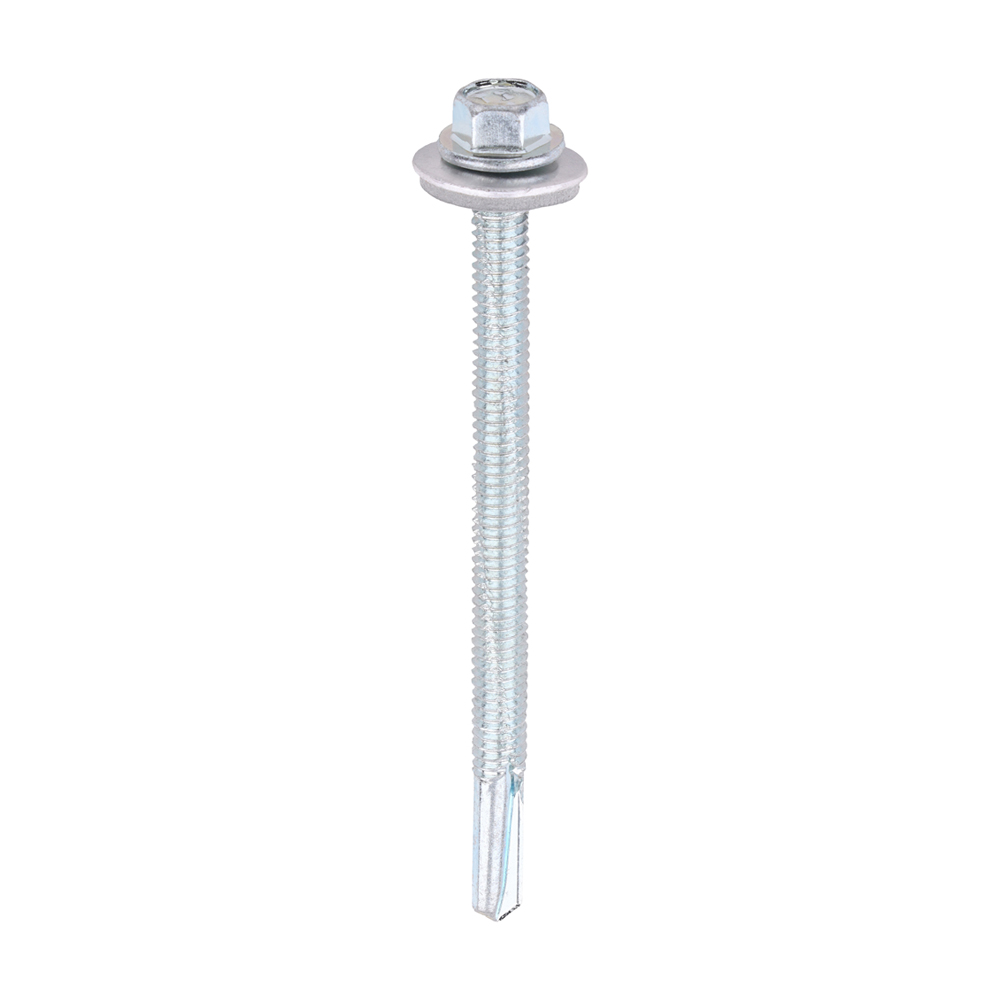

Metal Construction Heavy Section Screws - Hex - EPDM Washer - Self-Drilling - Zinc
5.5 x 80
- Product Code: ZH80W16

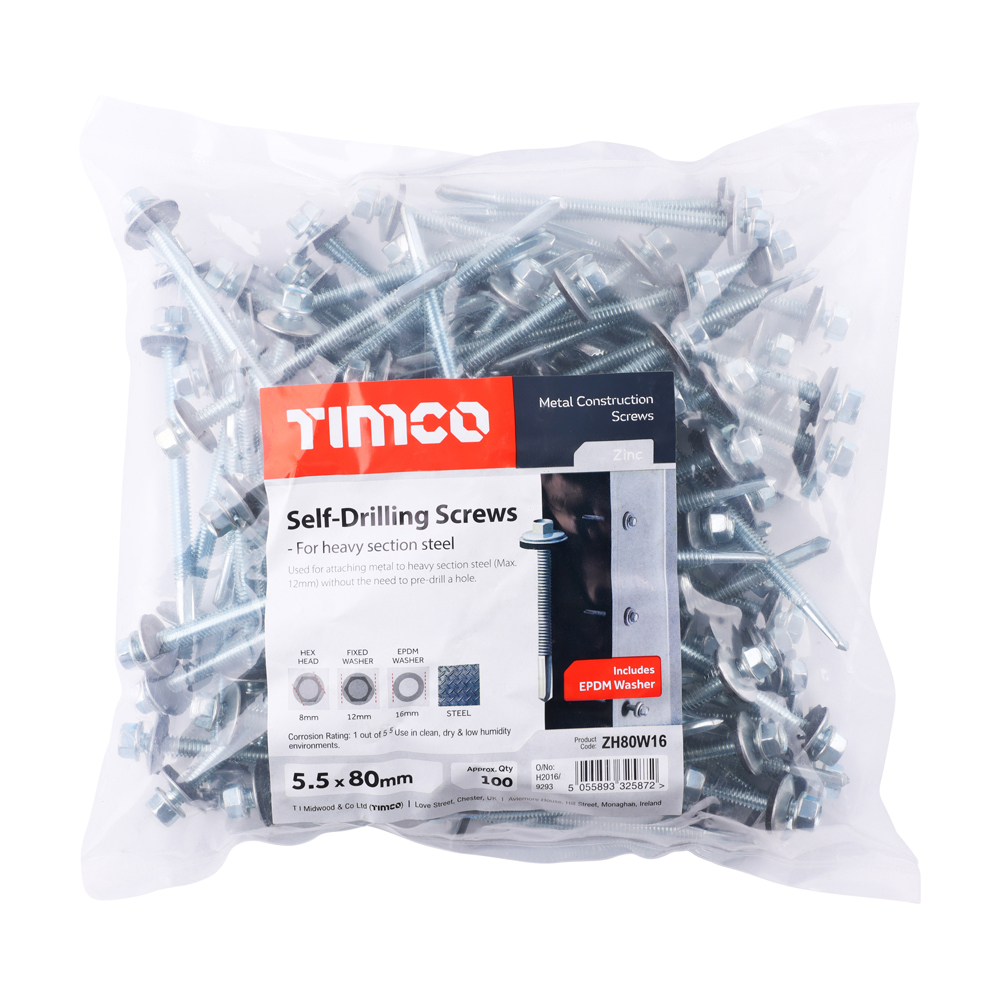

- Pack Type: Bag
- Pack Quantity: 100
- Barcode: 5055893325872
