Product Information
Used for securing fibre cement profile sheets to timber. Complete with heavy duty EPDM and stainless steel washer to provide a water-tight seal. Also known as a BAZ washer. Exterior corrosion resistant coating to withstand over 500 hours salt spray.
- Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
- Wings ream enlarged hole in roofing sheet to allow for expansion
- Frequently used to secure Big 6 roofing sheets
Documents
Technical Specifications
Product Specification
| Effective Thread Length mm | 60 |
| EPDM Washer mm | 25 |
| Length mm | 130 |
| Diameter mm | 6.3 |
| Socket Size mm | 8 |
| Type | For Timber |
| Washer Type | BAZ |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Rec RPM | 1,000 - 1,800 |
| Pack Dimensions L x W x H mm | 196 x 132 x 92 |
| Pack Weight kg | 1.54 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 192 |
| Product Code | 731339 |
| SKU Barcode | 5056110835600 |
| Thread Dia mm | 6.3 |
| Head Dia mm | 12 |
| Fixed Washer Dia mm | 12 |
Product Specifications
| Finish | Exterior (Silver Organic) |
| Head Type | Hex |
| Material | Case & Core Hardened Carbon Steel |
| Point Type | Single Slash |
| Thread Coverage | Partially Threaded |
| Thread Type | 60° Single Deep |
| Included Items | 25mm BAZ Washers |
| Substrates | Timber |
Attribute Group 1
| Brand | TIMCO |

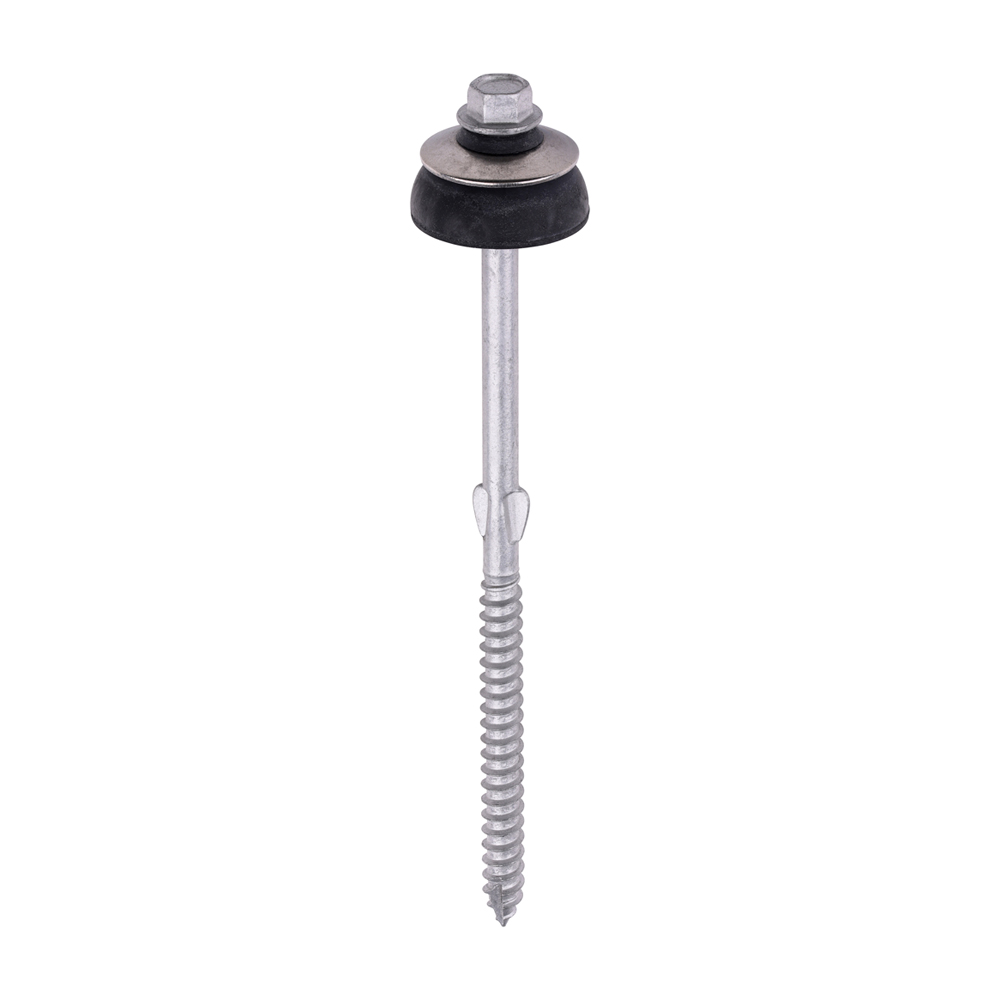

Metal Construction Fibre Cement Board to Timber Screws - Hex - BAZ Washer - Slash Point - Exterior - Silver Organic
6.3 x 130
- Product Code: 731339
- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5056110835600
