Product Information
Specifically designed to attach composite panel to light section steel (Max. 5mm). Self-drilling point with hexagon head and split thread.
- Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray
Documents
Technical Specifications
Product Specification
| Effective Thread Length mm | 56 |
| EPDM Washer mm | 16 |
| Head Height mm | 5.7 |
| Length mm | 150 |
| Diameter mm | 5.5 - 6.3 |
| Size mm | 5.5/6.3 x 150 |
| Socket Size mm | 8 |
| Type | For Light Section Composite Panel |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Max Drilling Thickness mm | 5 |
| Min Max Panel Thickness mm | 100 - 130 |
| Rec RPM | 1,000 - 1,800 |
| Pack Dimensions L x W x H mm | 192 x 134 x 90 |
| Pack Weight kg | 2.18 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 192 |
| Product Code | LH150W16B |
| SKU Barcode | 5056110873381 |
| Thread Dia mm | 5.5 - 6.3 |
| Fixed Washer Dia mm | 12 |
Product Specifications
| Finish | Exterior (Silver Organic) |
| Head Type | Hex |
| Material | Case & Core Hardened Carbon Steel |
| Point Type | Self-Drilling No.3 |
| Thread Coverage | Partially Threaded |
| Thread Type | Dual 60° Self-Tapping |
| Included Items | 16mm EPDM Washers |
| Substrates | Composite Panel |
Attribute Group 1
| Brand | TIMCO |

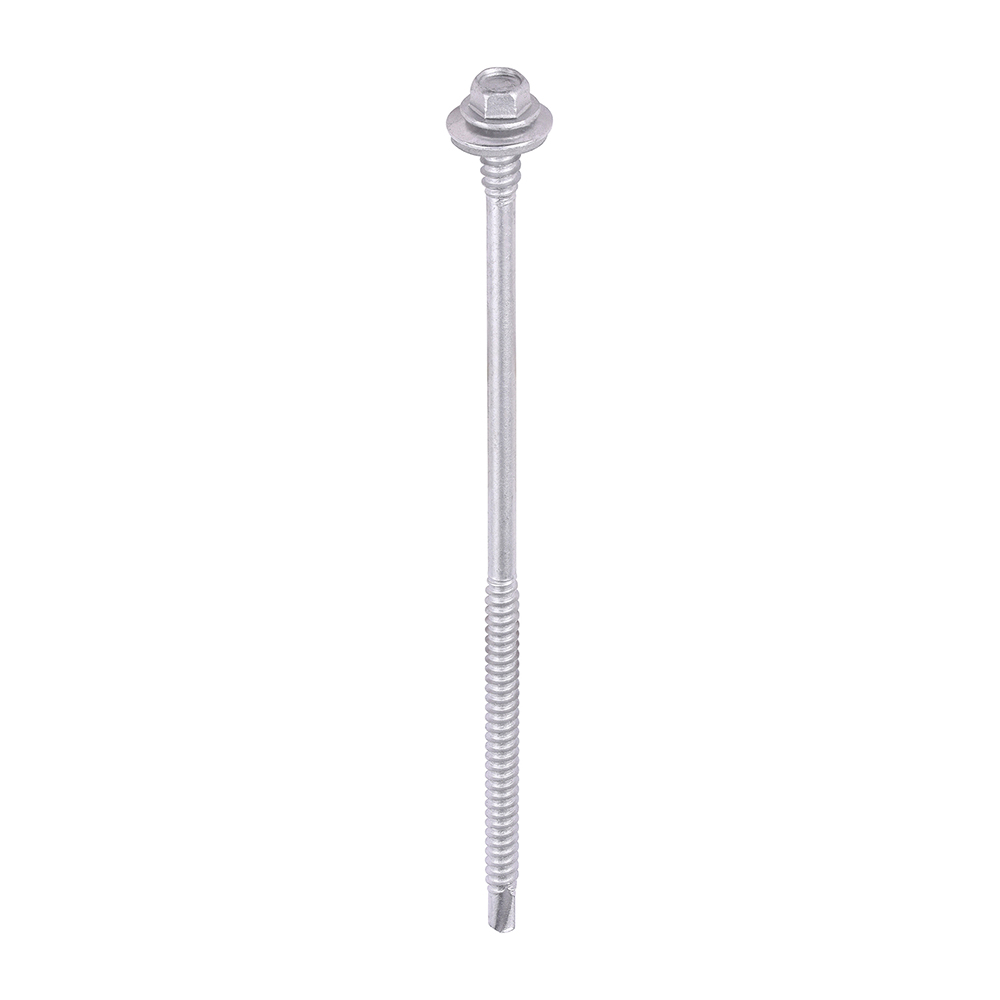

Metal Construction Composite Panel Screws - Hex - EPDM Washer - Self-Drilling - Exterior - Silver Organic
5.5/6.3 x 150
- Product Code: LH150W16B
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5056110873381
