Product Information

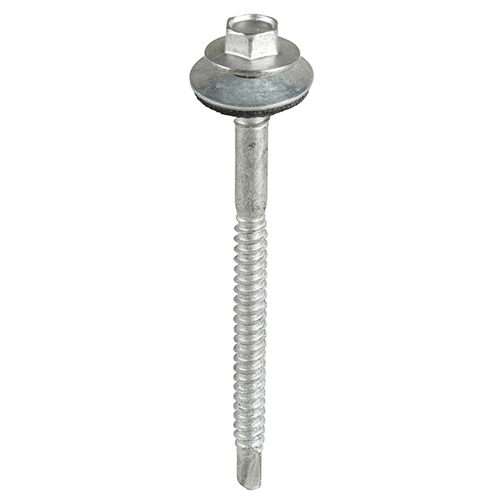

Specifically designed to attach composite panel to light section steel (Max. 5mm). Self-drilling point with hexagon head and split thread.
- Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
Documents
Technical Specifications
Product Specification
| Drill Tip Length mm | 8.5 |
| Effective Thread Length mm | 27 |
| EPDM Washer mm | 16 |
| Head Height mm | 5.3 |
| Length mm | 70 |
| Diameter mm | 5.5 - 6.3 |
| Size mm | 5.5/6.3 x 70 |
| Socket Size mm | 8 |
| Drill Tip Angle degree | 110 |
| Drill Tip Width mm | 4.75 |
| Type | For Light Section Composite Panel |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Drilling Thickness mm | 5 |
| Min Max Panel Thickness mm | 20 - 50 |
| Rec RPM | 1,000 - 1,800 |
| Pack Dimensions L x W x H mm | 135 x 90 x 90 |
| Pack Weight kg | 1.234 |
| Carton Qty Packs | 16 |
| Pallet Qty Packs | 384 |
| Product Code | BMLH70W16 |
| SKU Barcode | 5055893368862 |
| Thread Dia mm | 5.5 - 6.3 |
| Fixed Washer Dia mm | 12 |
Product Specifications
| Finish | Exterior (Silver Organic) |
| Head Type | Hex |
| Material | Bi-Metal/A2-304 Stainless Steel/Carbon Steel |
| Point Type | Self-Drilling No.3 |
| Thread Coverage | Partially Threaded |
| Thread Type | Dual 60° Self-Tapping |
| Included Items | 16mm EPDM Washers |
| Substrates | Composite Panel |
Attribute Group 1
| Brand | TIMCO |
Metal Construction Composite Panel Screws - Hex - EPDM Washer - Self-Drilling - Bi-Metal - Exterior - Silver Organic
5.5/6.3 x 70
- Product Code: BMLH70W16
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055893368862
